1.3 Inch I2C White 12864 OLED module LCD Display Screen Arduino STM32 IoT Project 0.96 Inch

Product Description

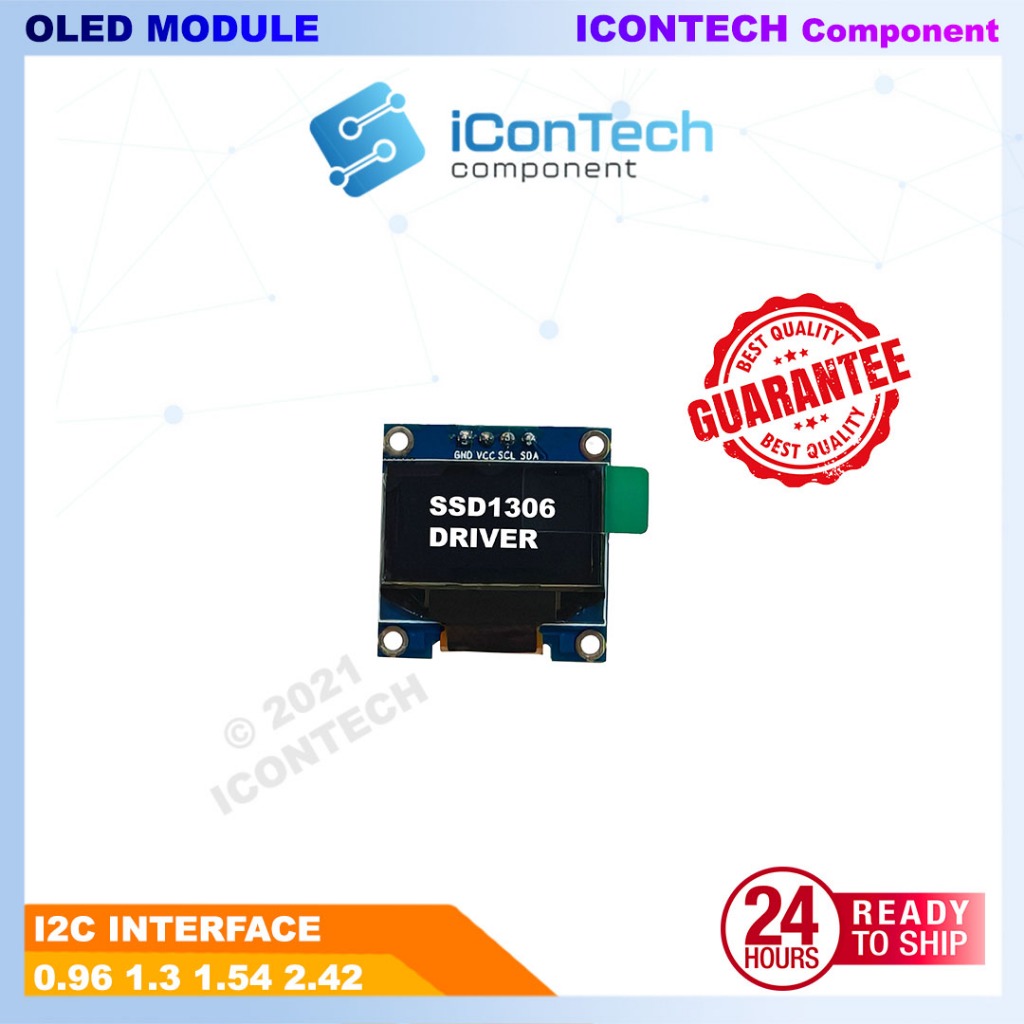

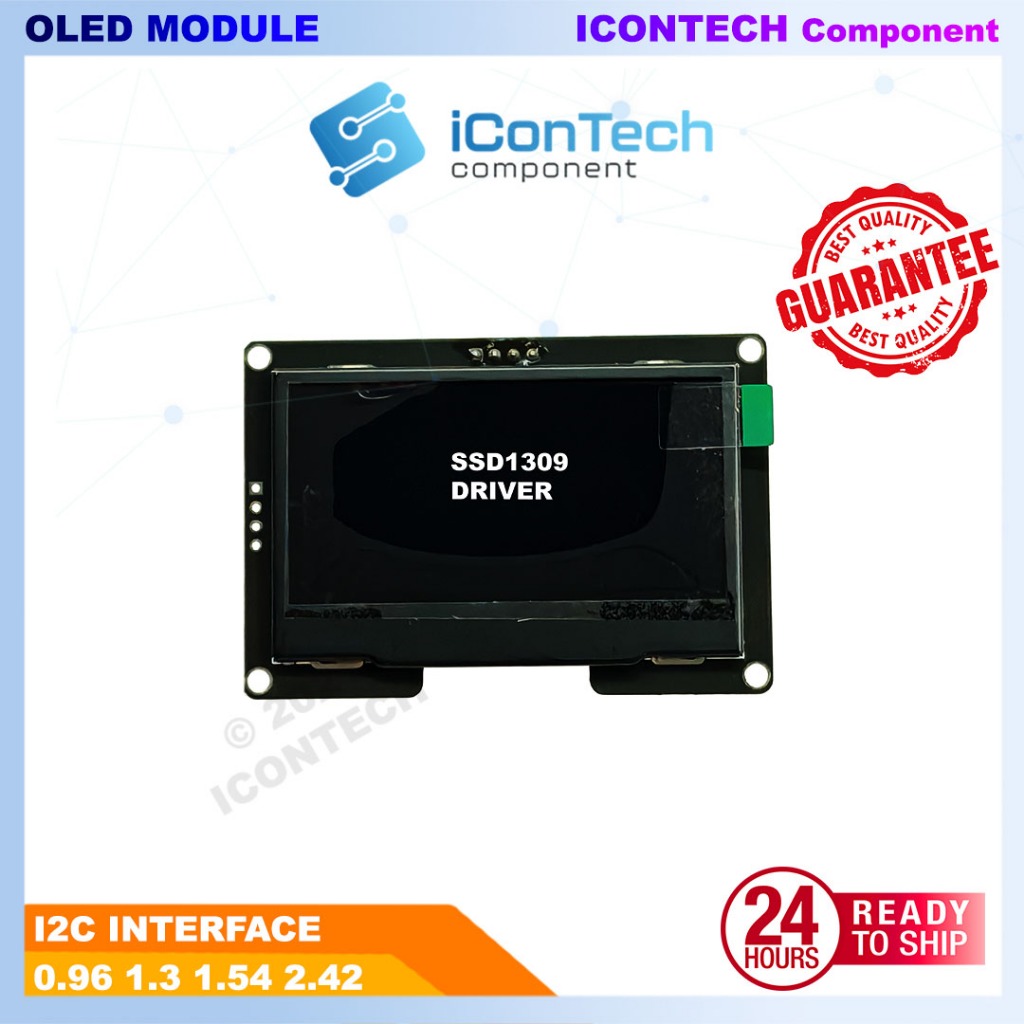

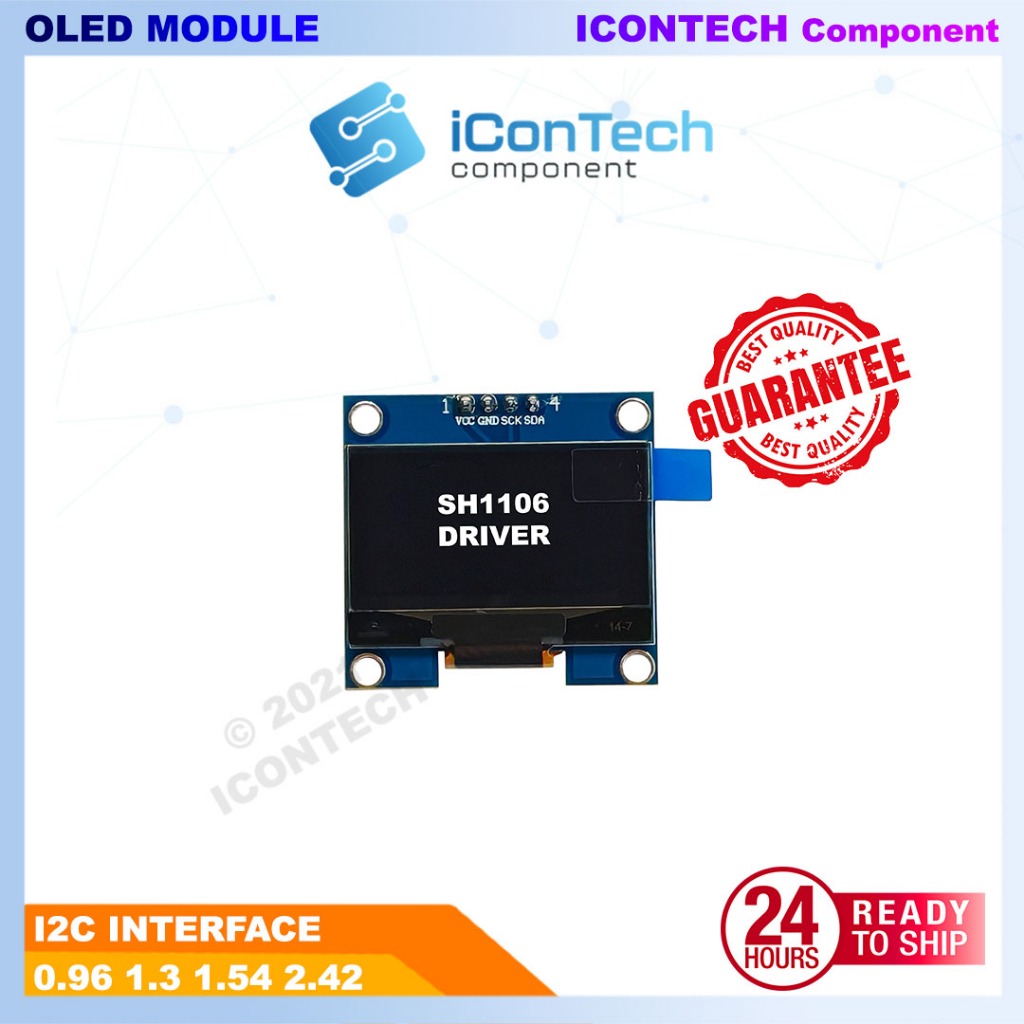

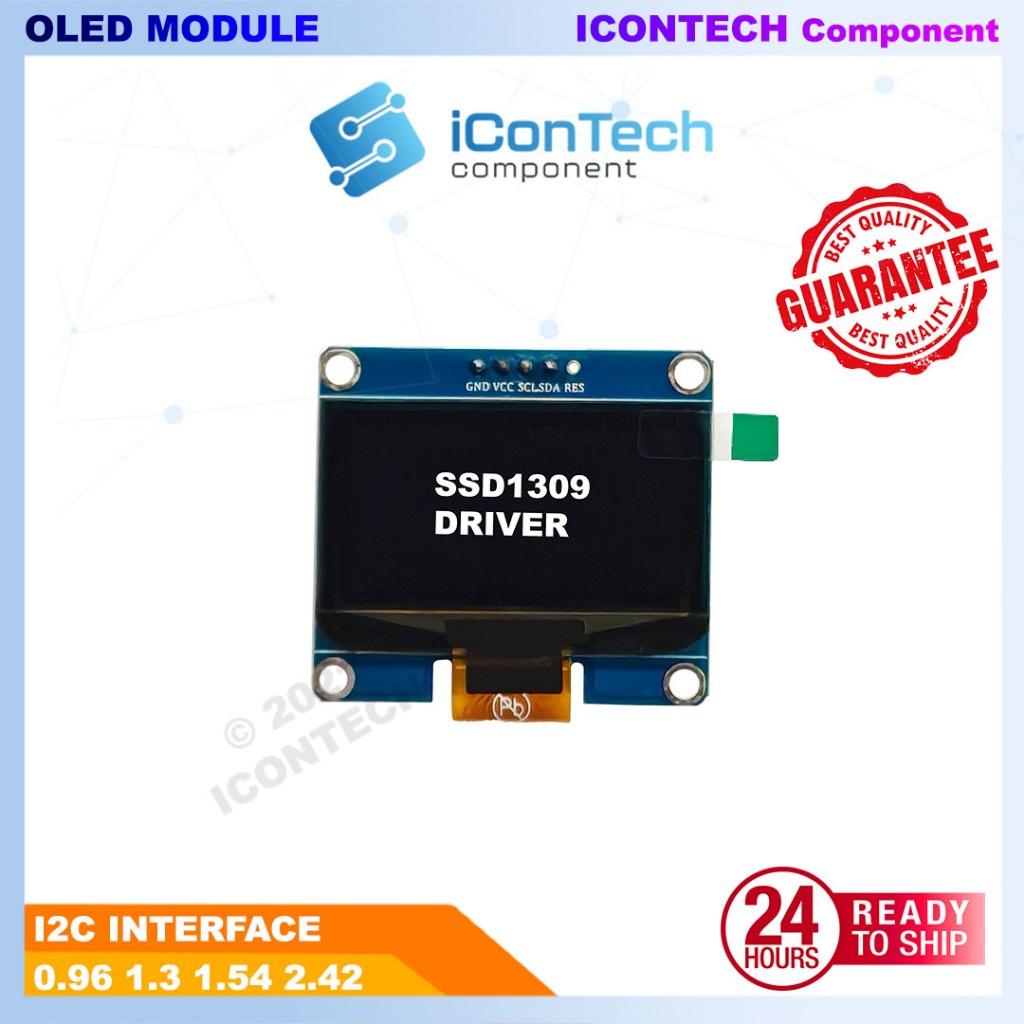

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 OLED module is an organic light emitting diode, or called organic electroluminescence display, OELD. It has a characteristic of light weight, low energy consumption, and being widely use at small device like speaker player. 【Specification 】 Peripheral Interface: I2C Resolution: 128×64 Color： White Driver IC: SSD1309 (2.42 inch OLED) Driver IC: SSD1309 (1.54 inch OLED) Driver IC: SH1106 (1.3 inch OLED) Driver IC: SSD1306 ( 0.96 inch OLED) VCC: 1.65-3.5V Display Color: Monochrome (White) Display Mode: Passive Matrix Drive Duty: 1/64 Duty 【 Mechanical Specifications】 2.42 Inch L x W = 48mm x 70mm 1.54 inch L x W = 42mm x 38mm 1.3inch L x W = 35mm x 33mm 0.96inch L x W = 26mm x 25mm 【Notes】 For ESP32 and ESP8266 development with this module can follow this https://github.com/ThingPulse/esp8266-oled-ssd1306 You may need to change library from SSD1306 to SH1106 in some code library to compatible use with Arduino or ESP or other microcontroller series. Please had a look on the driver needed. SSD1309 required in your library there, 【IMPORTANT】 PLEASE CHECK THE PINOUT CAREFULLY BEFORE CONNECT ! 【Package Include】📦 1 x OLED
