10 Segment LED Bar graph Battery LV indicator
RM 4.50 – RM 5.00
| Availability | 98 total units |
Select option: *
Please select an option above.
Product Description

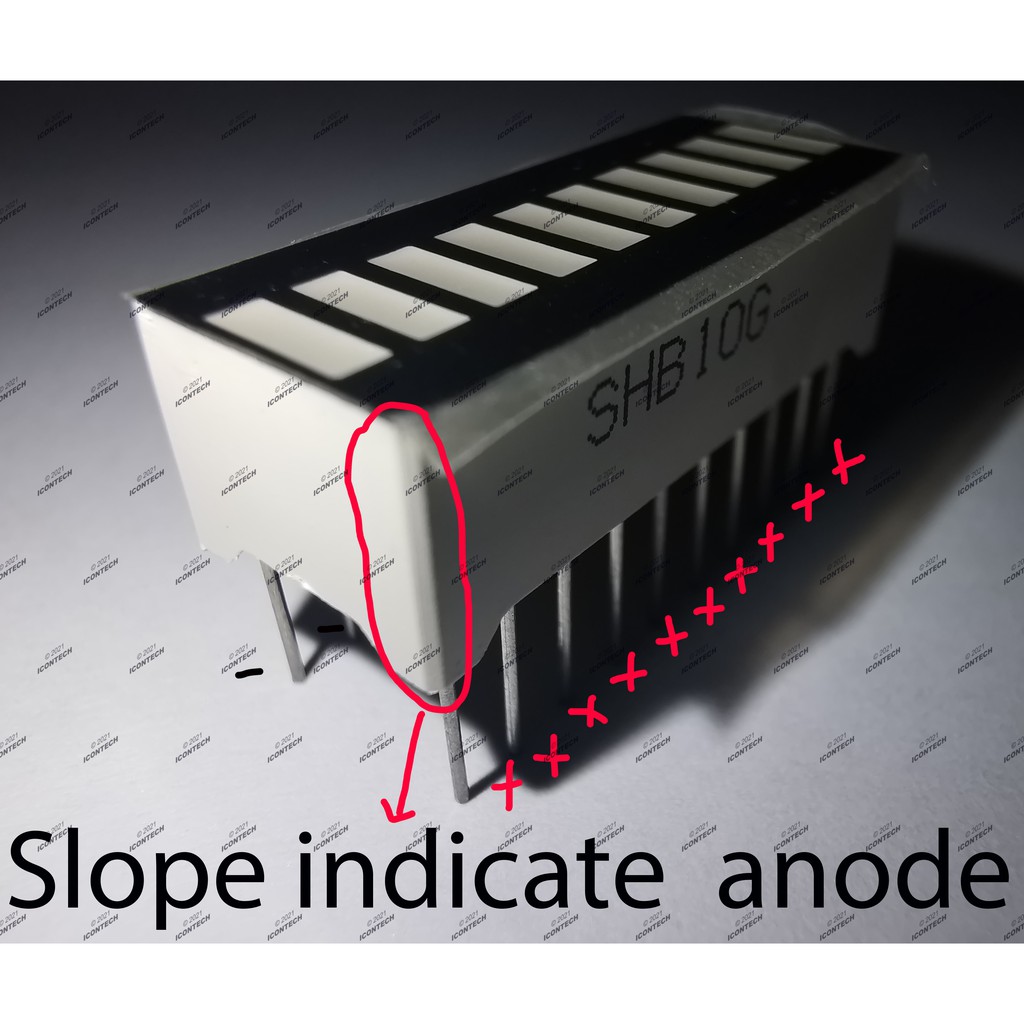

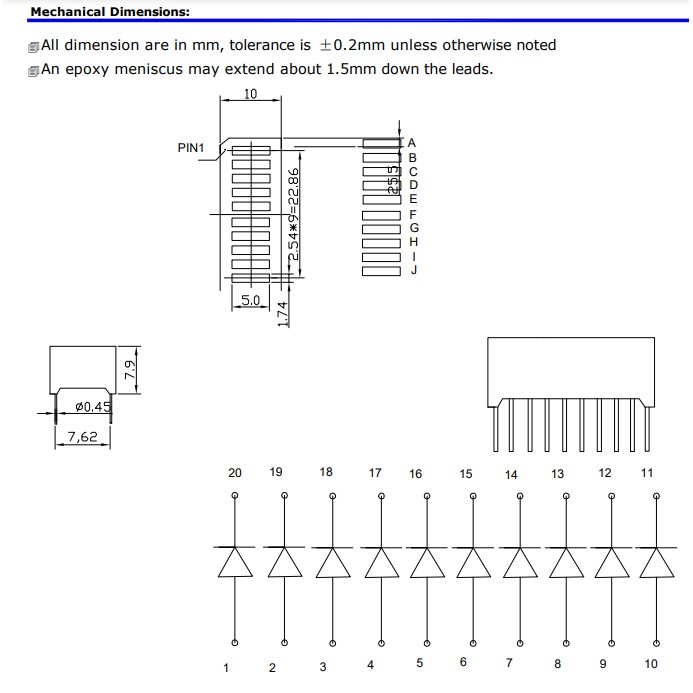

10 segment bar graph LEDs had many use case. Mostly can use to indicate battery level, or volume level. Essentially this bar graph are 10 individual LED housed together, each with an individual anode and cathode connection. For connection configuration, please refer to the image. This device mostly pair with LM3914. You can had a look on this website https://learn.sparkfun.com/tutorials/dotbar-display-driver-hookup-guide/all All the photo are actual capture. The video are work together with LM3914, Potentiometer to simulate on the LED bar graph. I am following the tutorial from the link above.
