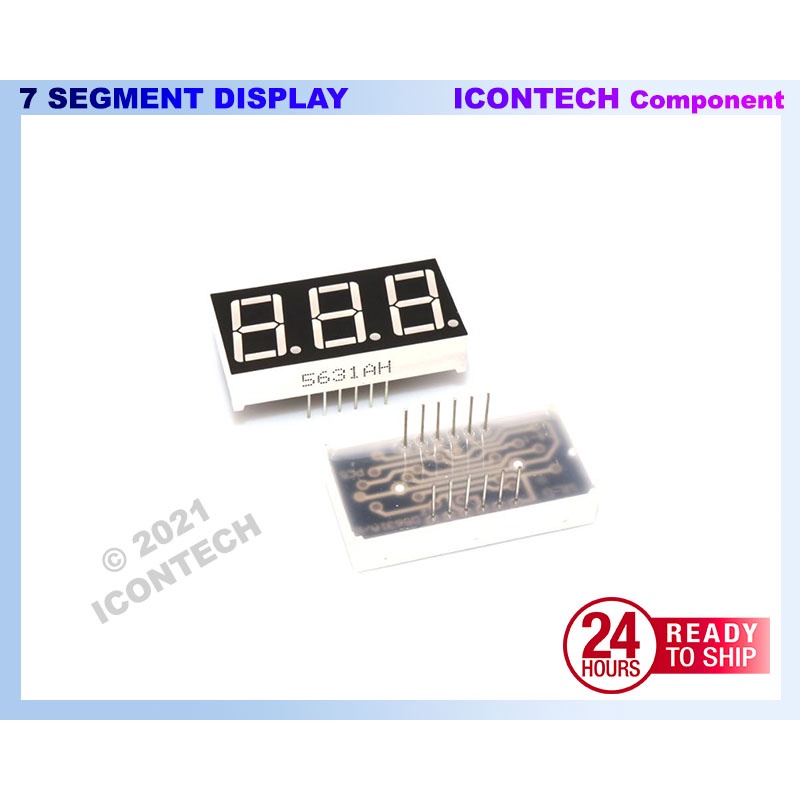

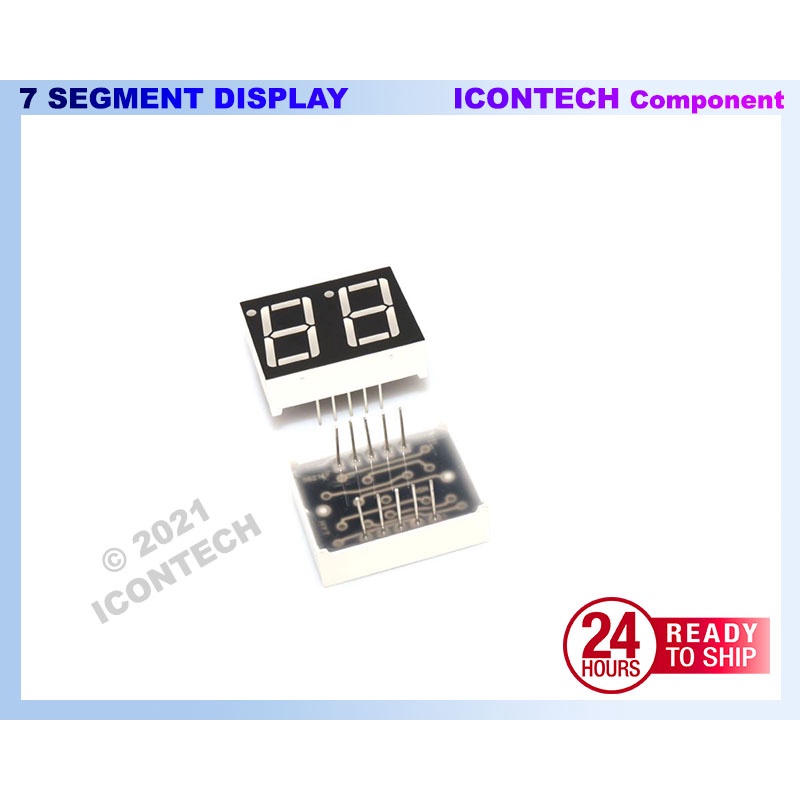

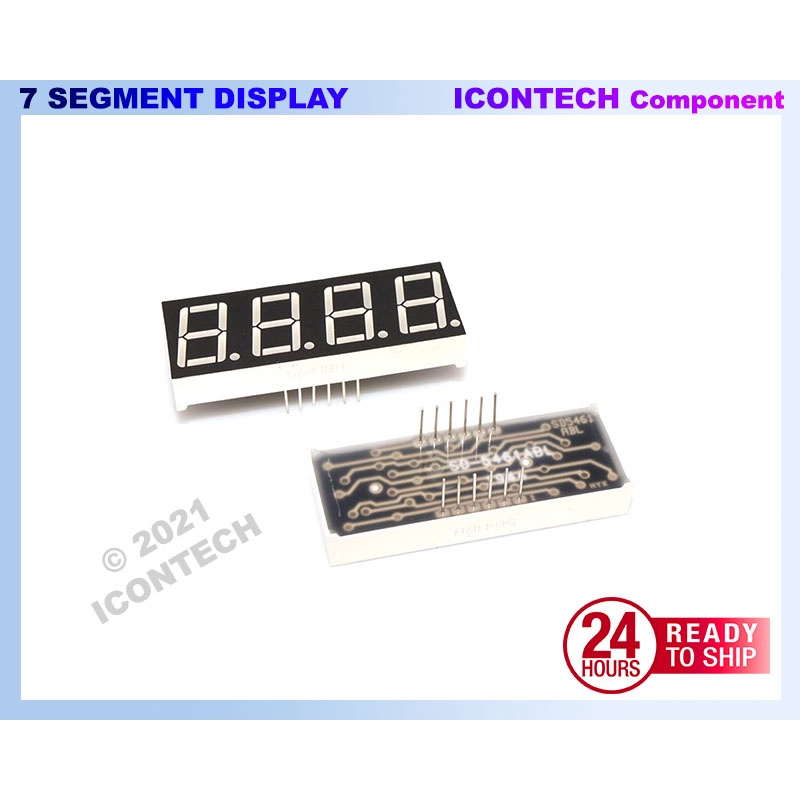

7 Segment Display 1/2/3/4Bit RED LED 0.56 Inch
RM 0.50 – RM 2.10
| Availability | 321 total units |
Select option: *
Please select an option above.
Product Description

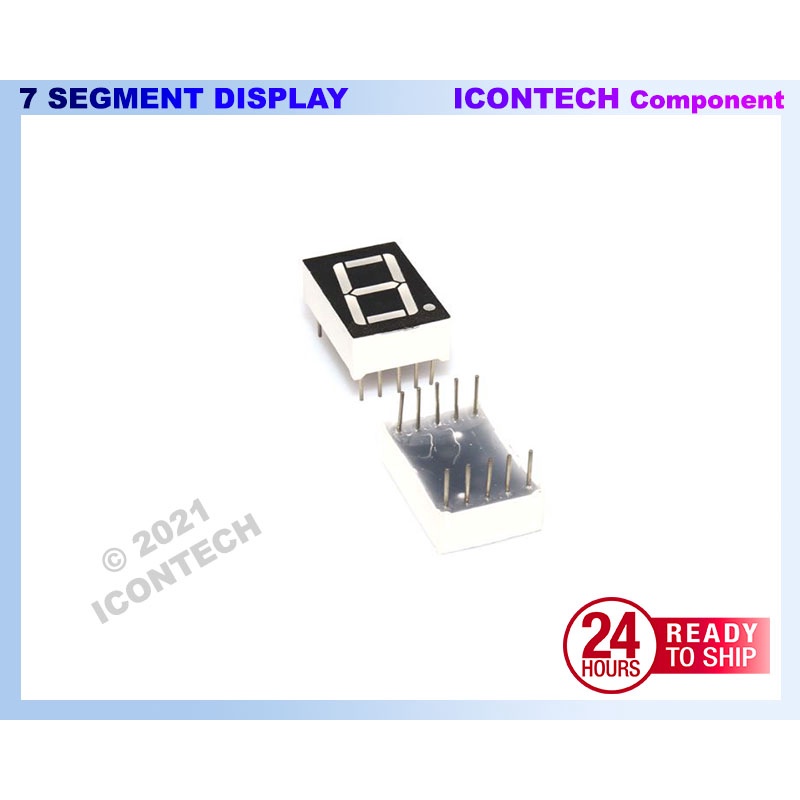

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 7 Segment Display Single Digits Display 【Specification】 GaAlAs/GaAs dice material Maximum luminous intensity is 6.5mcd at IF = 20mA Peak emission wavelength is 660nm at IF = 20mA Dominant wavelength is 643nm at IF = 20mA Spectral line half-width is 20nm Forward voltage is 2.5V (max) Power dissipation is 85mW Peak forward current is 100mA Operating temperature range from -40°C to +85°C Super red emitted colour and white diffused lens colour 【Application 】 Imaging, Video & Vision, Consumer Electronics, Portable Devices 【Package Include】📦 1 x 7 Segment display 【References】 -Common anode http://www.xlitx.com/datasheet/5161BH.pdf -Common cathode http://www.xlitx.com/datasheet/5161AS.pdf
