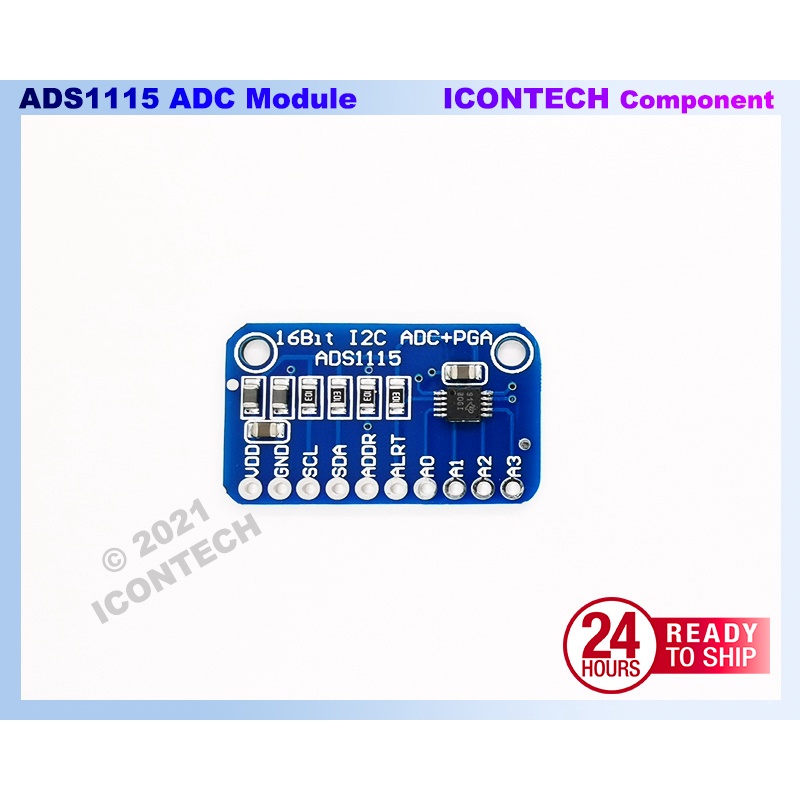

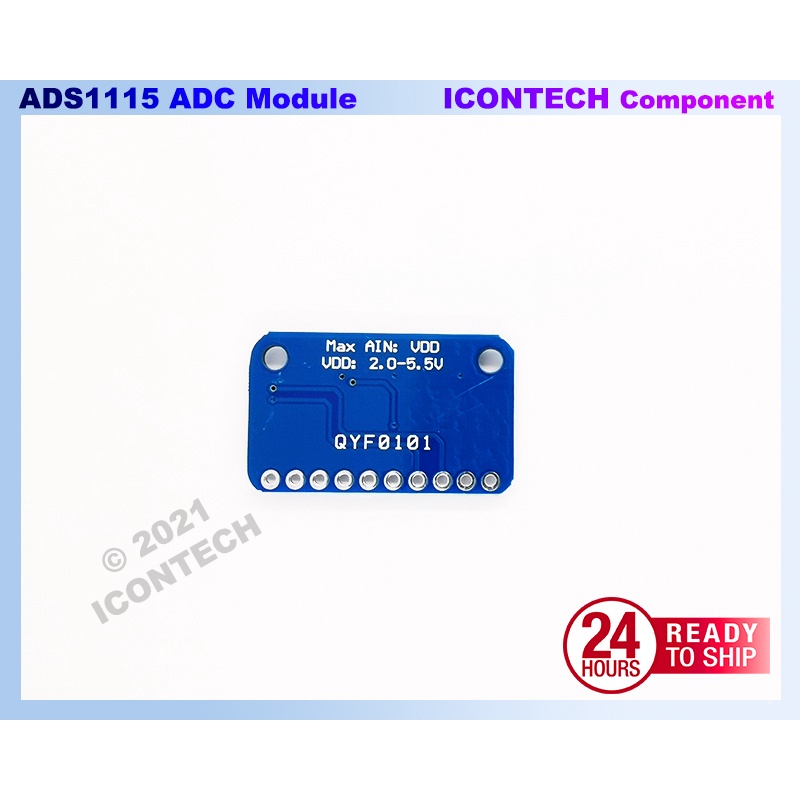

ADS1115 16-Bit ADC - 4 Channel with Programmable Gain Amplifier

Product Description

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 ✅ Price might be expensive a little bit, but the quality is better ~! 【Description】 For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 16 bit converter. 【Specification】 WIDE SUPPLY RANGE: 2.0V to 5.5V LOW CURRENT CONSUMPTION: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down PROGRAMMABLE DATA RATE: 8SPS to 860SPS INTERNAL LOW-DRIFT VOLTAGE REFERENCE INTERNAL OSCILLATOR INTERNAL PGA I2C INTERFACE: Pin-Selectable Addresses FOUR SINGLE-ENDED OR TWO DIFFERENTIAL INPUTS PROGRAMMABLE COMPARATOR This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers 【Package Include】📦 1 x ADS1115 ADC
