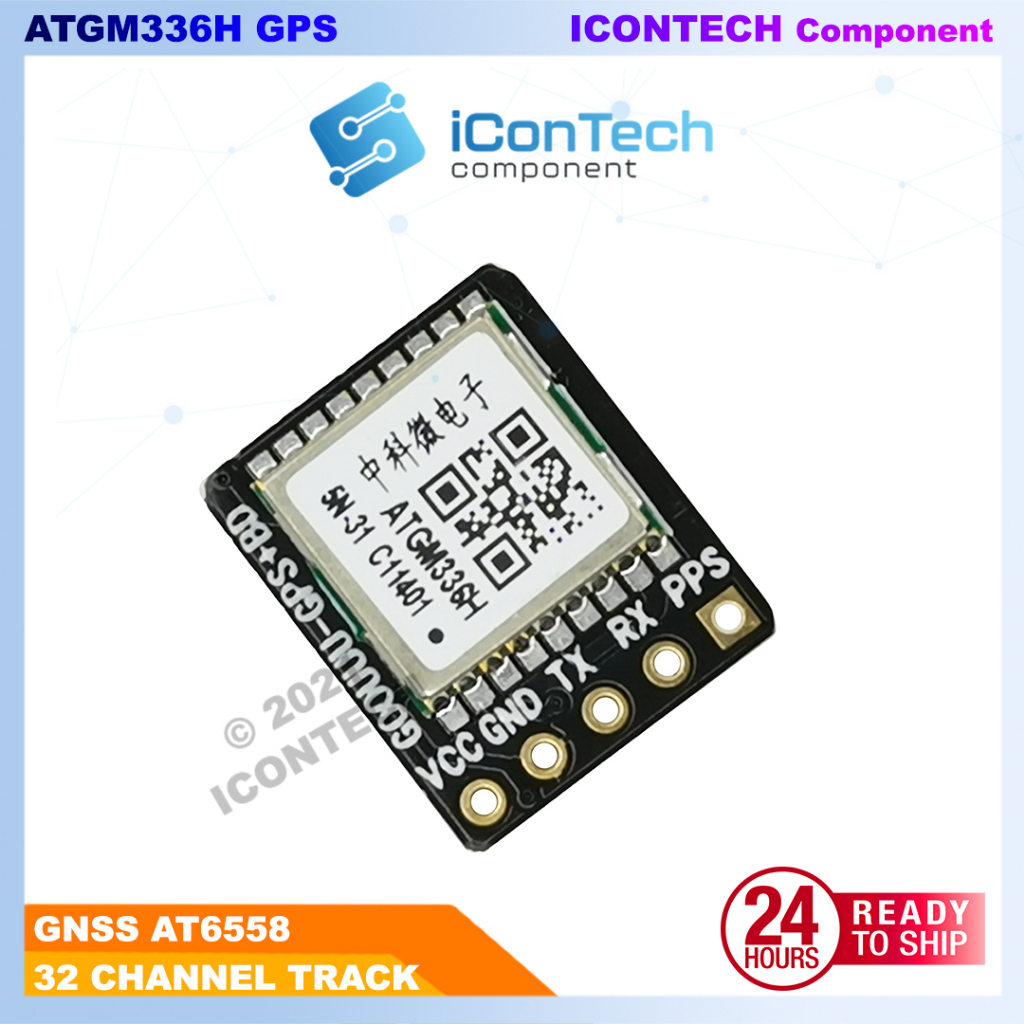

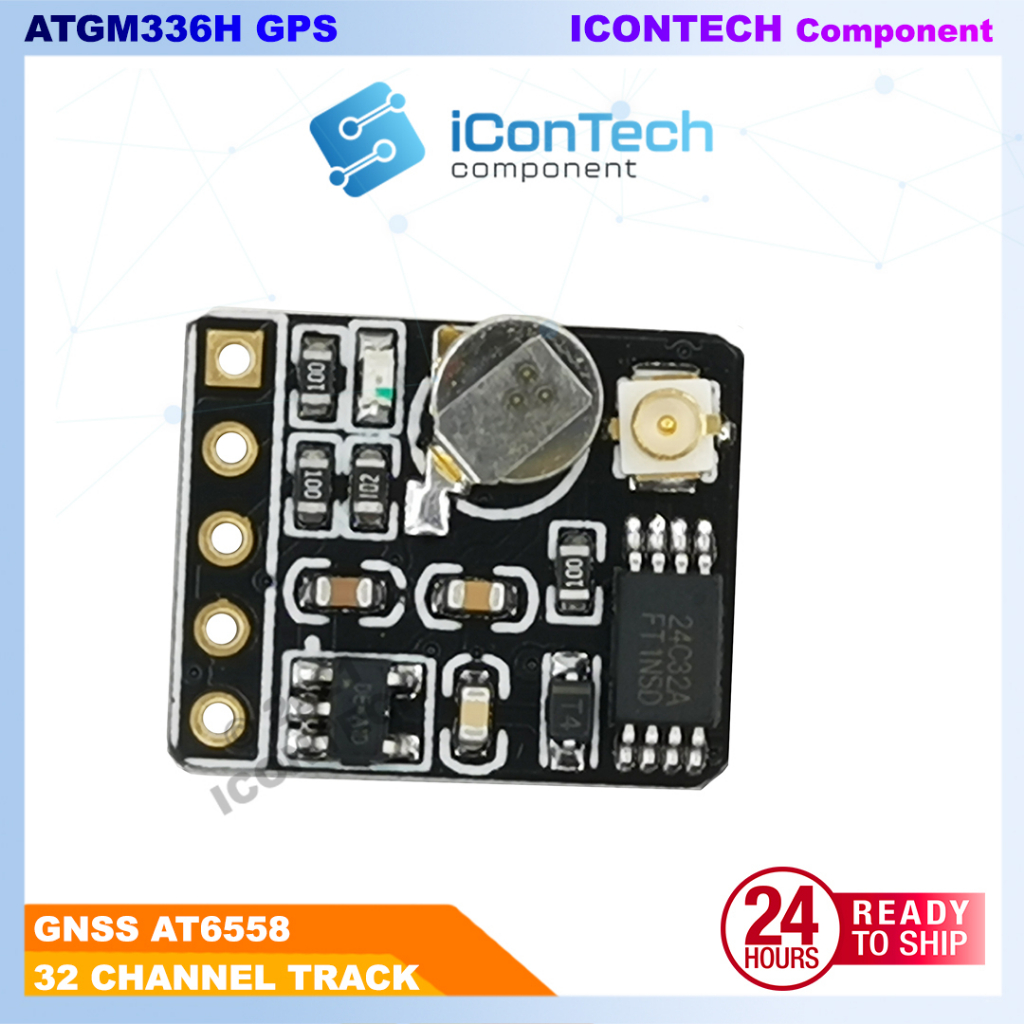

ATGM336H GPS Module Included Antenna GNSS Module GPS Beidou ATGM336H-5N ATGM336 AT6558

Product Description

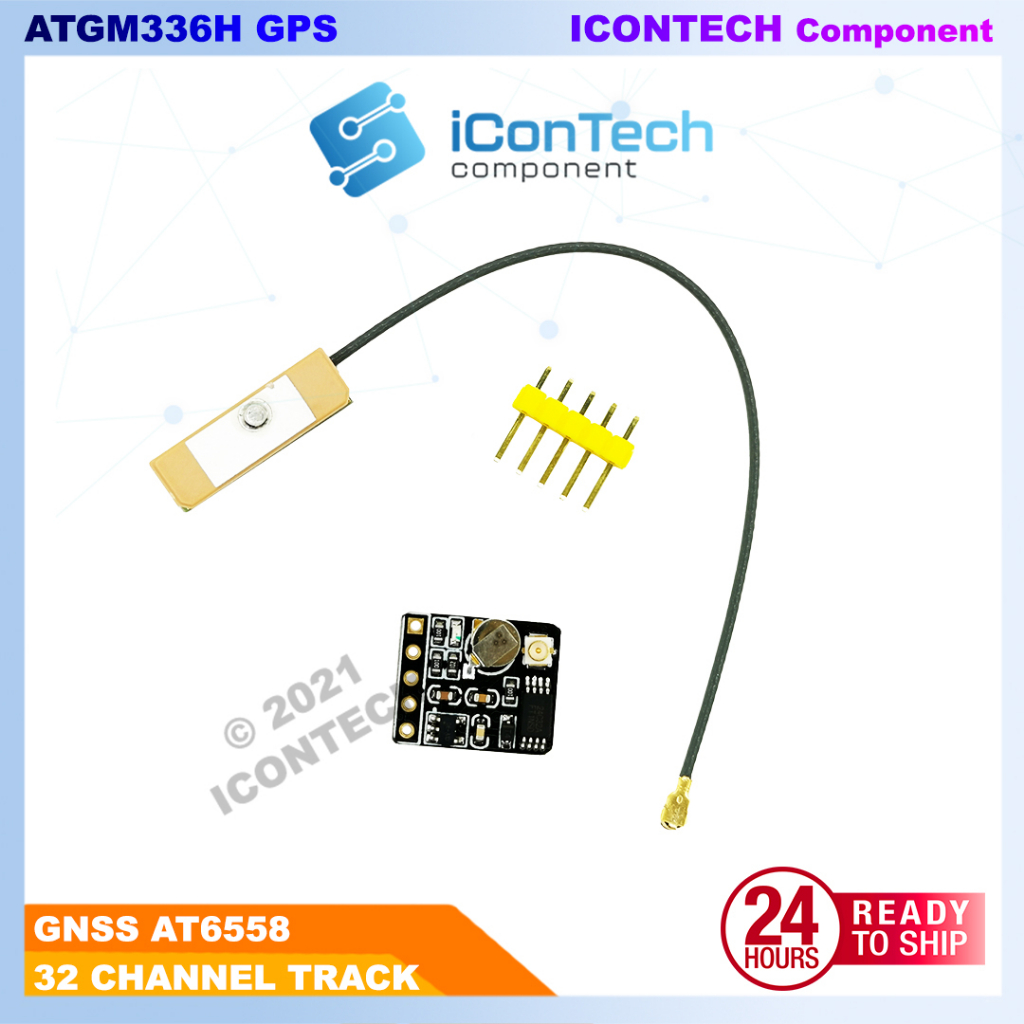

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 A GPS module that works with UART (TX and RX) signals. The corresponding GPS antenna is included. -Based on the fourth generation of low-power GNSS SOC Chips – AT6558 -All tracking system supported – GPS/US, Beidou/CN, GLONASS/RU, Galileo/EU, QZSS/JP, SBAS/enhanced system, all in one. -Contains 32 tracking channels that can receive GNSS signals from six satellite navigation systems simultaneously and enables joint positioning, navigation and timing. -High sensitivity, low power consumption, low cost -Suitable for car navigation, handheld positioning, wearable devices -Can replace Ublox MAX, NEO-6M, 7M, 8M directly. -Output standard NMEA0183 signal from serial. 【Specifications】 Voltage range (VCC): 5V DC I/O Voltage: 3.3V Standard baud rate: 9600 Uses the ATGM366H-5N-31 GPS module Works with GPS, BDS LED indication when GPS has a fix (blinking LED) Dimensions PCB (LxWxH): 16.2x13.8x5.3mm (without header pins) Pinout: 【Features】 Support A-GNSS Cold start capture sensitivity: -148dBm Tracking sensitivity: -162dBm Positioning accuracy: 2.5 meters (CEP50, open area) First positioning time: 32 seconds Low power consumption: continuous operation <25mA (@ 3.3V) Built-in antenna detection and antenna short-circuit protection 【Connection】 VCC: Input voltage GND: Ground/min TX: UART connection RX: UART connection PPS: Precise Pulse Second; Gives a pulse every second (linked to the UTC time) 【References】 The TinyGPS++ library can be used to read the GPS module: http://arduiniana.org/libraries/tinygpsplus/ 【Dimension】 Board size 15.7 x 13.1 mm 【Package Include】📦 Package include main board and ipex antenna.
