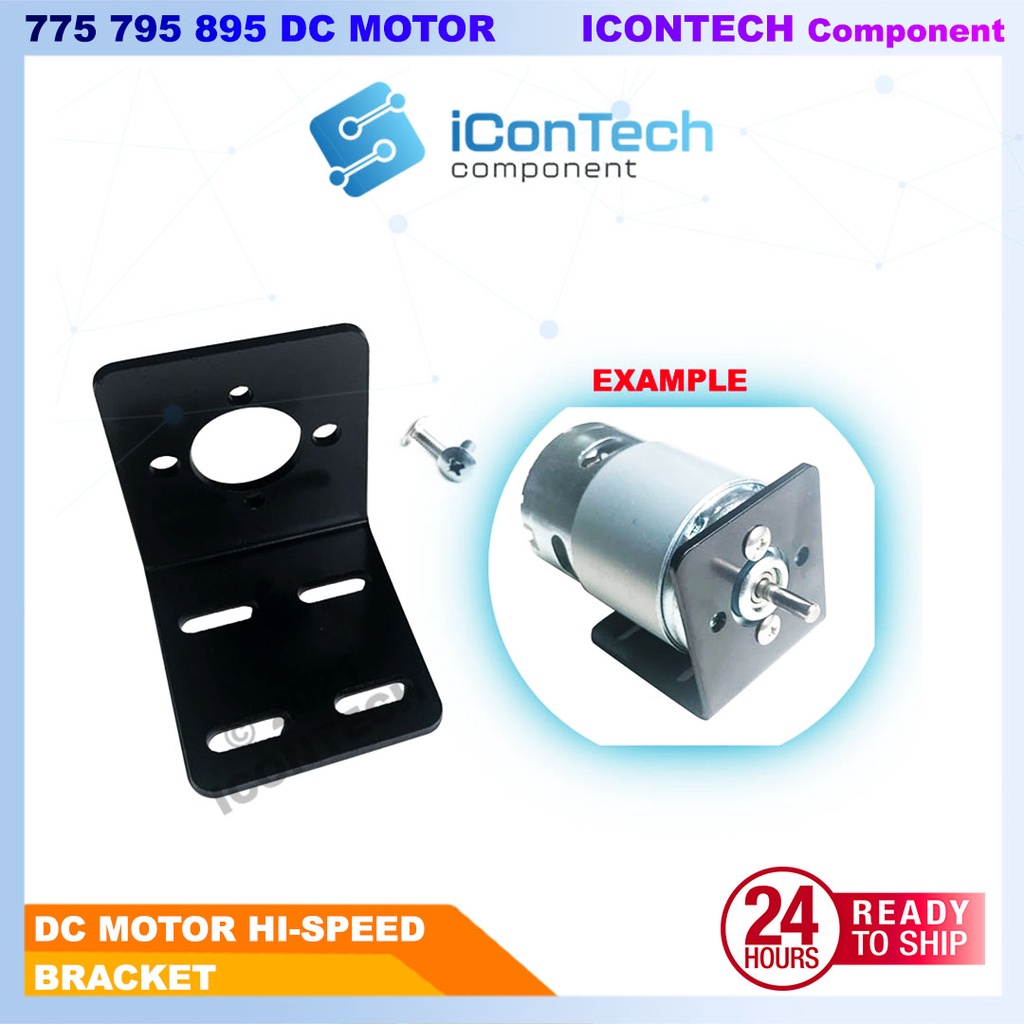

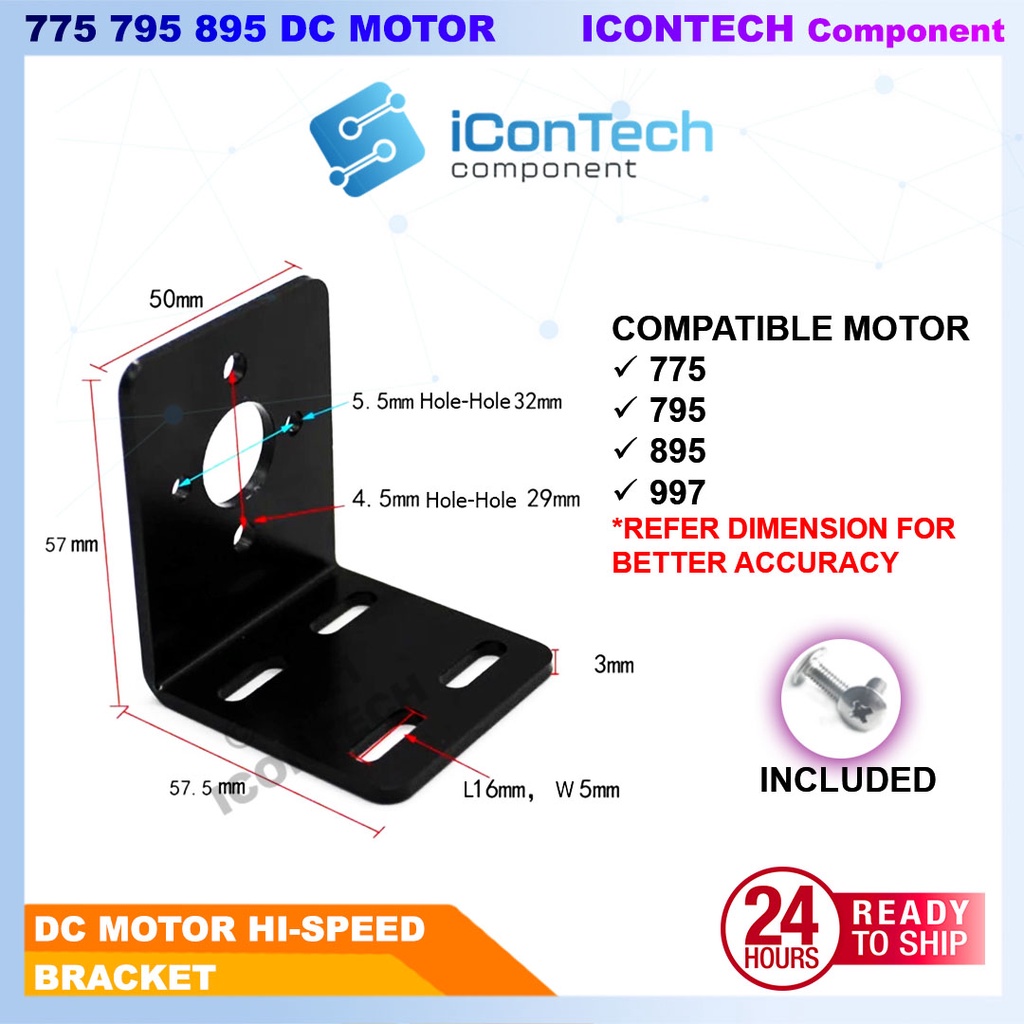

DC Motor 775 795 895 High Torque High Speed 12V DC Motor 24V DC Motor Arduino Motor High Quality 775 Bracket

Product Description

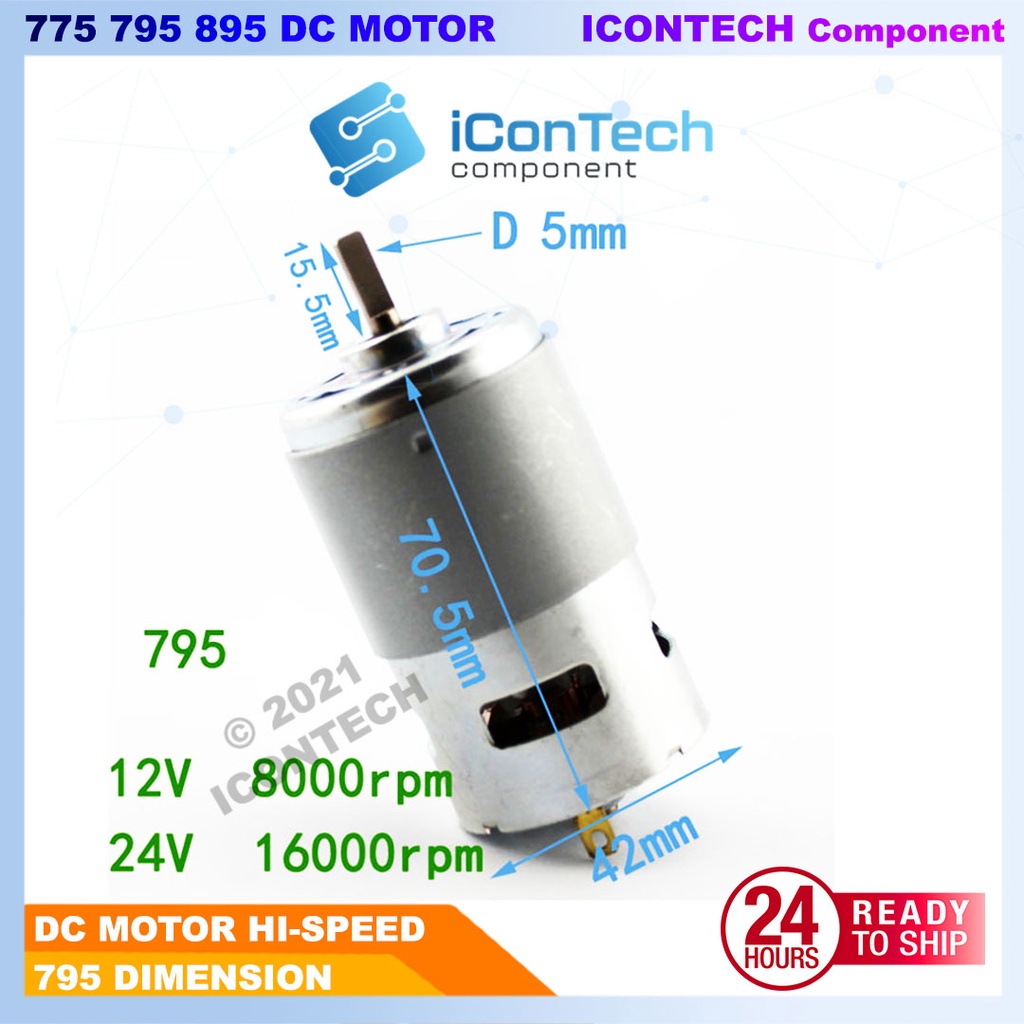

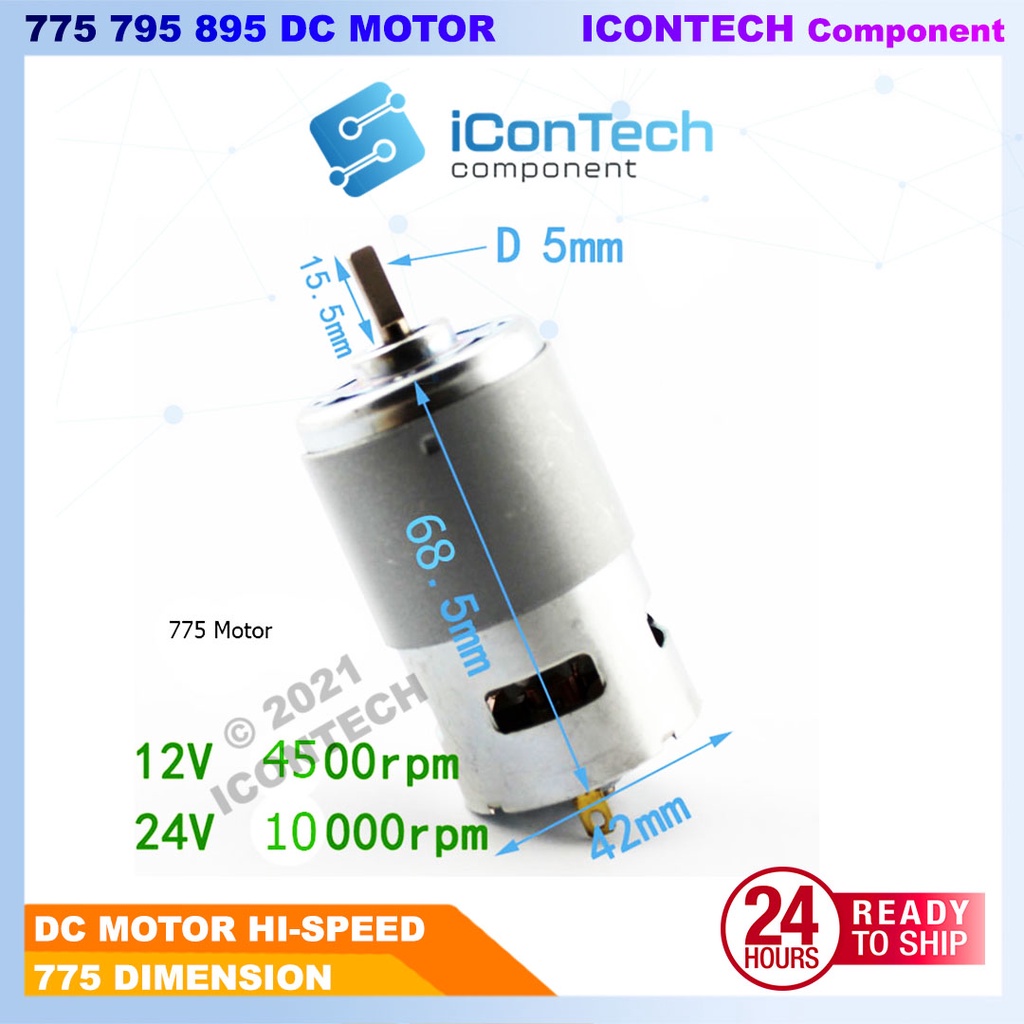

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 DC Motor, 12V 24V wide operating range. Copper coil inside. 【Electrical Specification】 Model Number: 775 Voltage: 12V DC No Load Current: 0.27A Stall Current: 3.25A No Load Speed: 4500 RPM ------------------------------------------ Voltage: 24V DC No Load Current: 0.5A Stall Current: 3.6A No Load Speed: 10000 RPM ------------------------------------------- Output Power: 80W Commutation: Brush Shaft : D shape Motor: Ball Bearing ========================================= Model Number: 795 Voltage: 12V DC No Load Current: 0.95A Stall Current: 3.34A No Load Speed: 8000RPM ----------------------------------------- Voltage: 24V DC No Load Current: 1.2A Stall Current: 3.75A No Load Speed: 16000 RPM Output Power: Maximum 90W Commutation: Brush Shaft : D shape Motor: Dual Ball Bearing ========================================= Model Number: 895 Voltage: 12V DC No Load Current: 1.55A Stall Current: 2.8A No Load Speed: 5000RPM ----------------------------------------- Voltage: 24V DC No Load Current: 1.2A Stall Current: 3.15A No Load Speed: 10000 RPM Commutation: Brush Shaft : O shape ========================================= 【Mechanical specification】 Model Number: 775 Weight : 338g Model Number: 795 Weight : 363g Dimension : Refer to image Screw : M4 hole Shaft motor tail back : 4.5MM 【Question】 Q1: Different between 775 vs 795 Ans: Length extra about 3mm, but the torque is increasing a lots 【Notes】 Please use at least 12V 2A above supply for both motor. 【Package Include】📦 1 x Motor
