DC MOTOR RS555 HIGH SPEED 24V 24000RPM DC MOTOR 12V 24V DRILL MOTOR

Product Description

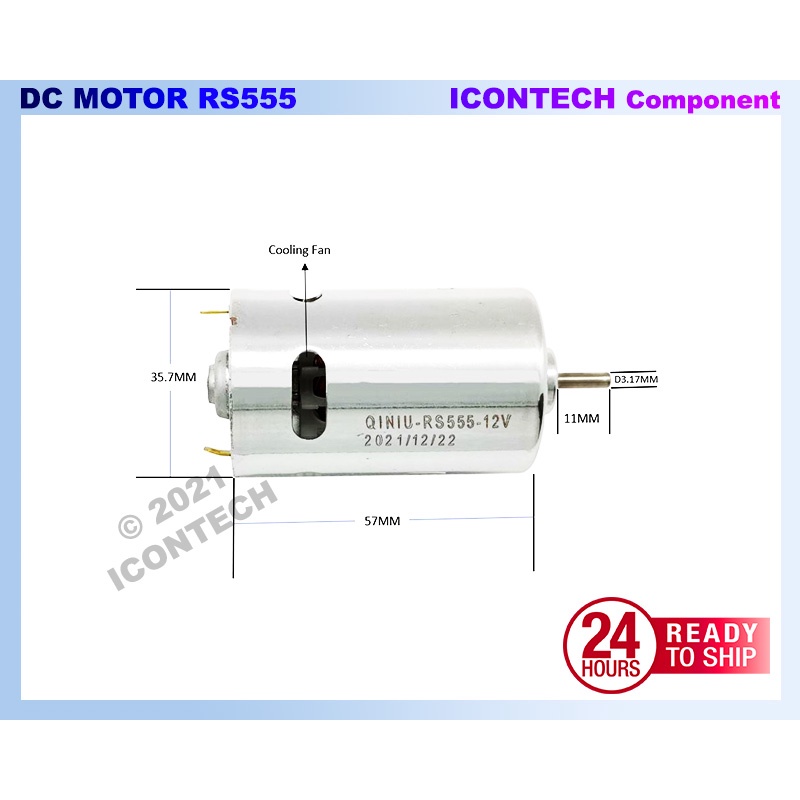

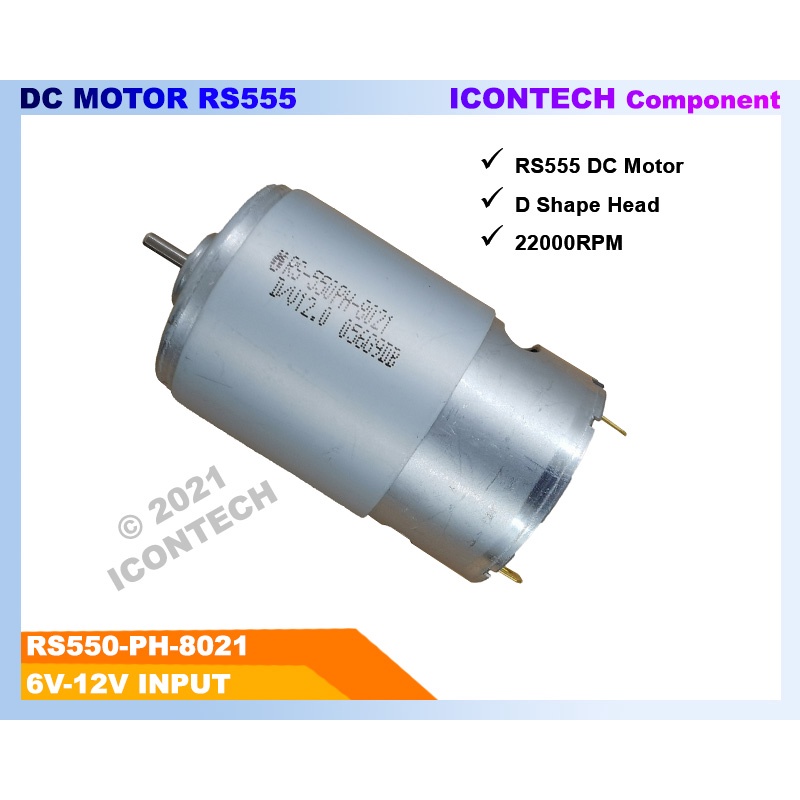

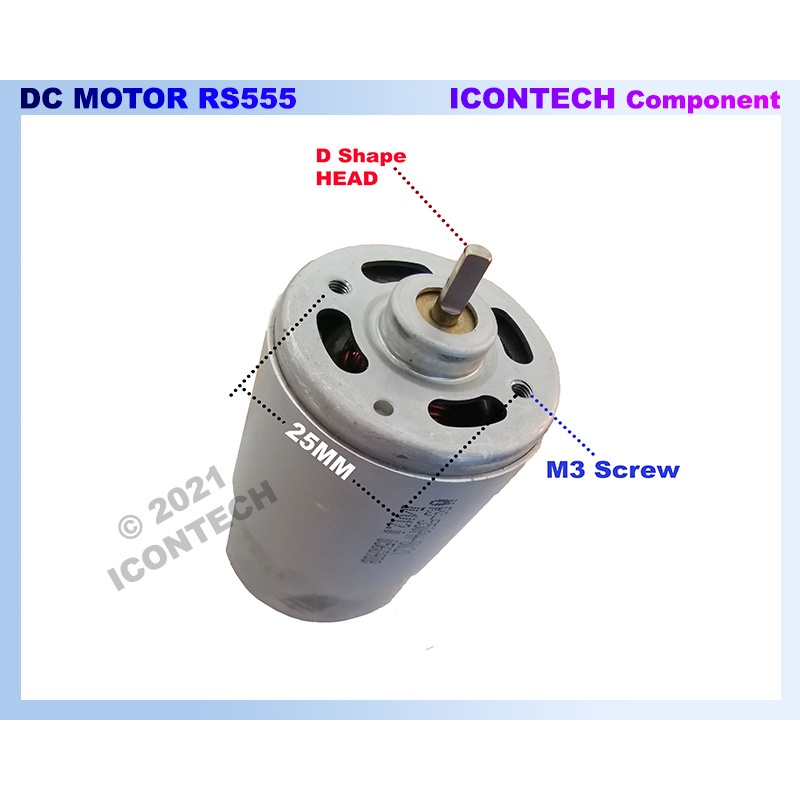

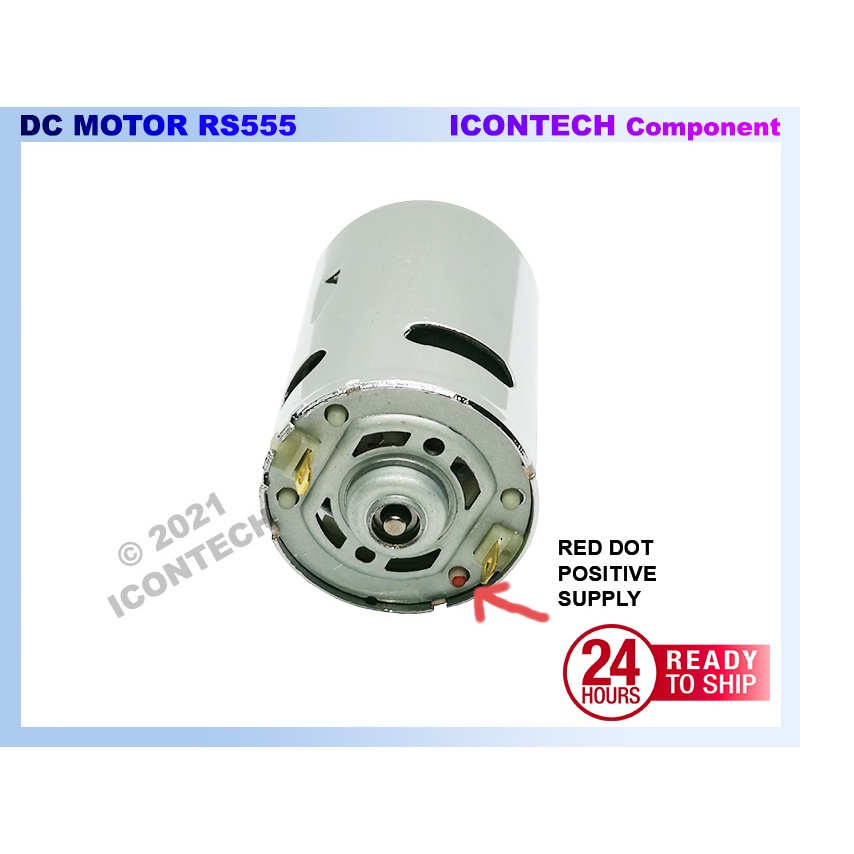

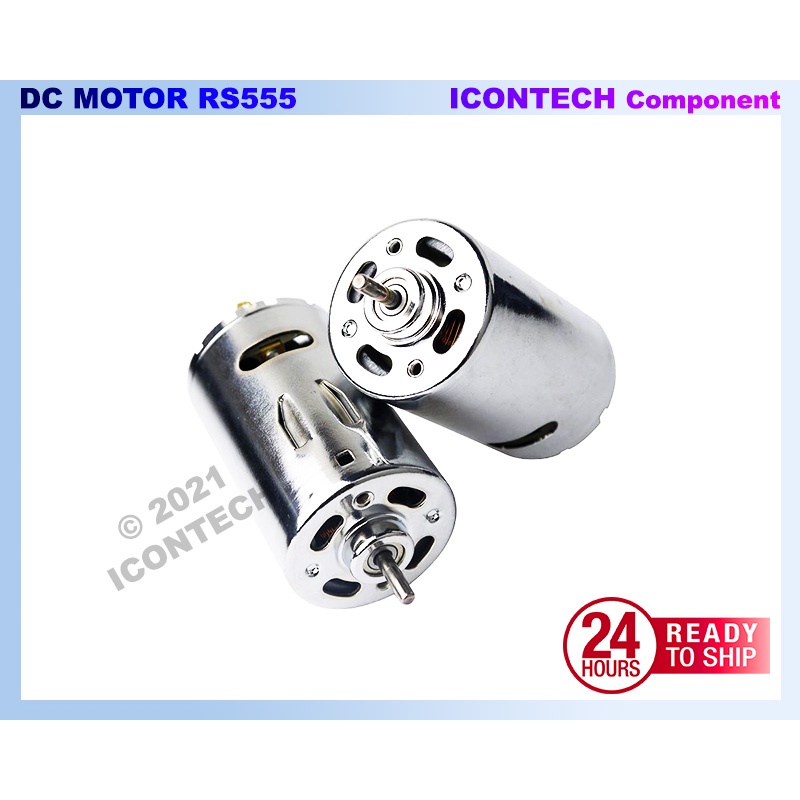

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 This is a high quality DC motor, the surface use polish coated steel instead of normal version rough surface. Internally it design using dual ball bearing design for more stable movement and silence. This motor was capable from 12v up to maximum 24v operating voltage. 【Application】 DC MOTOR use for drill or hobby project. 【Mechanical Specification】 Weight : 205g M3 skrew hole for install Dimension refer to image 3.17MM shaft head 【Notes】 Please supply voltage based on specification below Make sure supply capable at least draw 3A when using 24V. Kick start current about 3.0A or above. 【Variation】 - Product information (Chrome Metal Case) Model : RS555-12V-24V DC Power rating : 50W Operating voltage : 12v to 24v Speed : 12v = 12000rpm 24v = 24000rpm Built in DC fan for cooling purpose Head : Round Type - Product information (Normal Metal Case) Model : RS550PH-8021 Operating voltage : 6v-12V Speed : 6v = 11000rpm 12v= 22000rpm Head : D Type Size and Dimension same as RS555-12V-24V DC （Only Head different） - Product information (Small DC motor) Model : RS385-12VDC Operating voltage : 6v-28V Speed : 6v = 3500rpm 12v= 7000rpm 24v= 14000rpm 28v= 15300rpm Head : Round Type Size and Dimension refer to image 【Package Include】📦 1 x DC Motor RS555 / 1x DC Motor 385
