Digital Servo Motor High Torque Metal 7.4V WATER Resist 15KG 20KG 25KG 30KG 35KG 60KG RC Servo Motor Project Servo Motor

Product Description

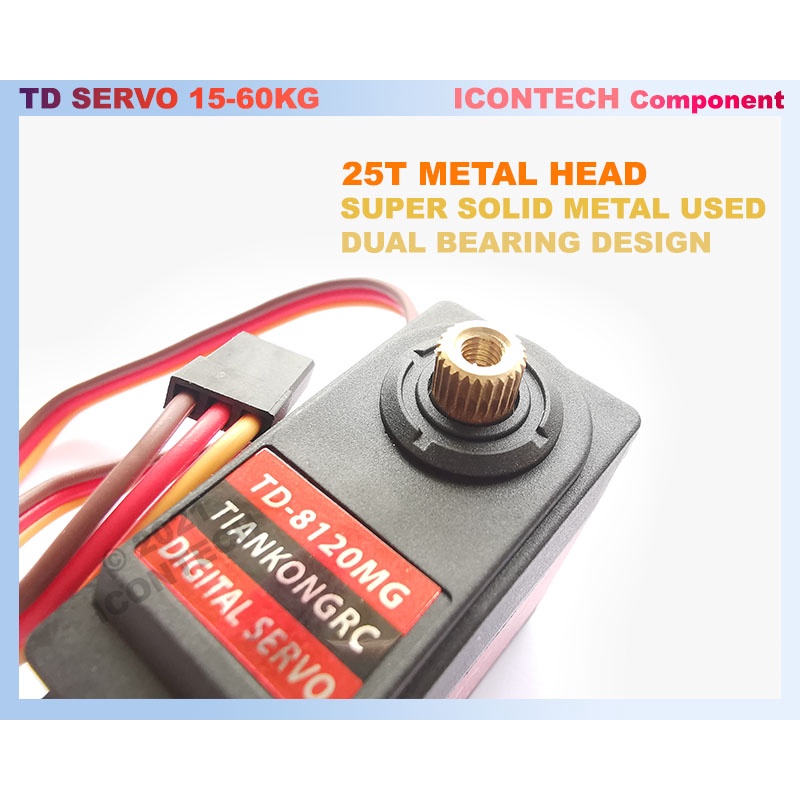

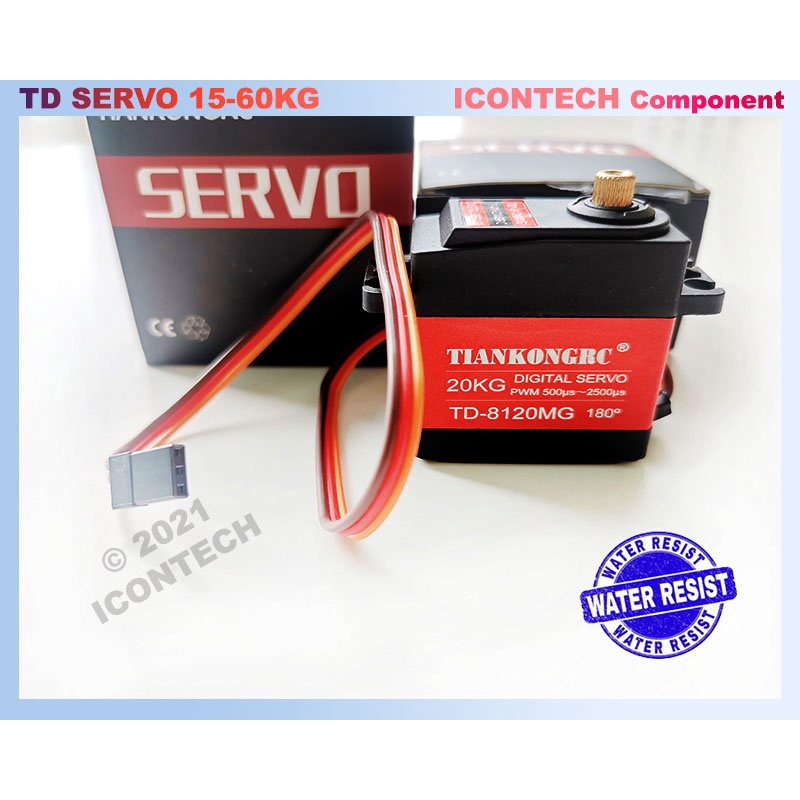

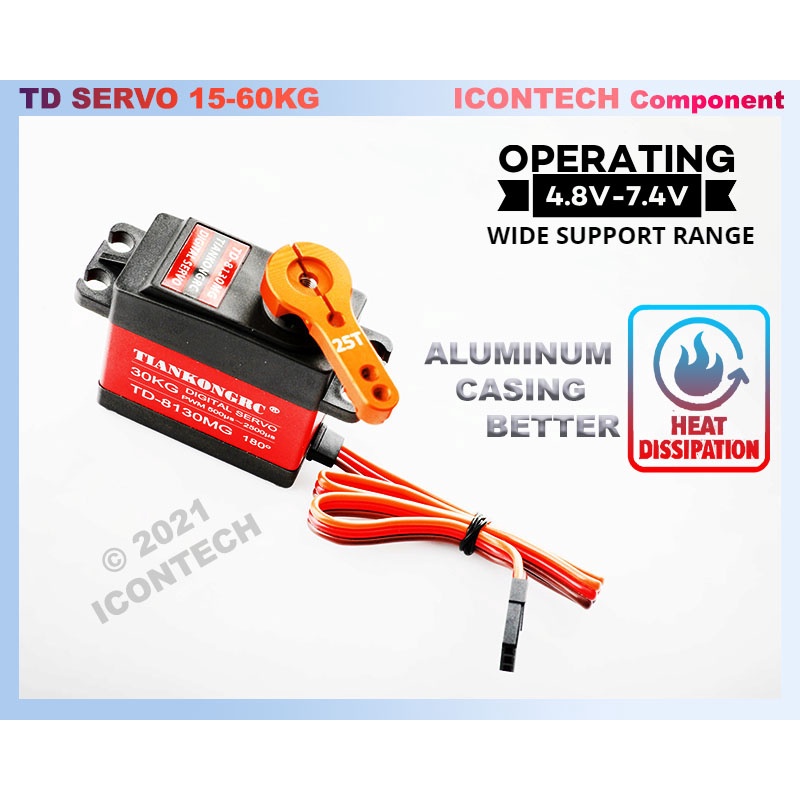

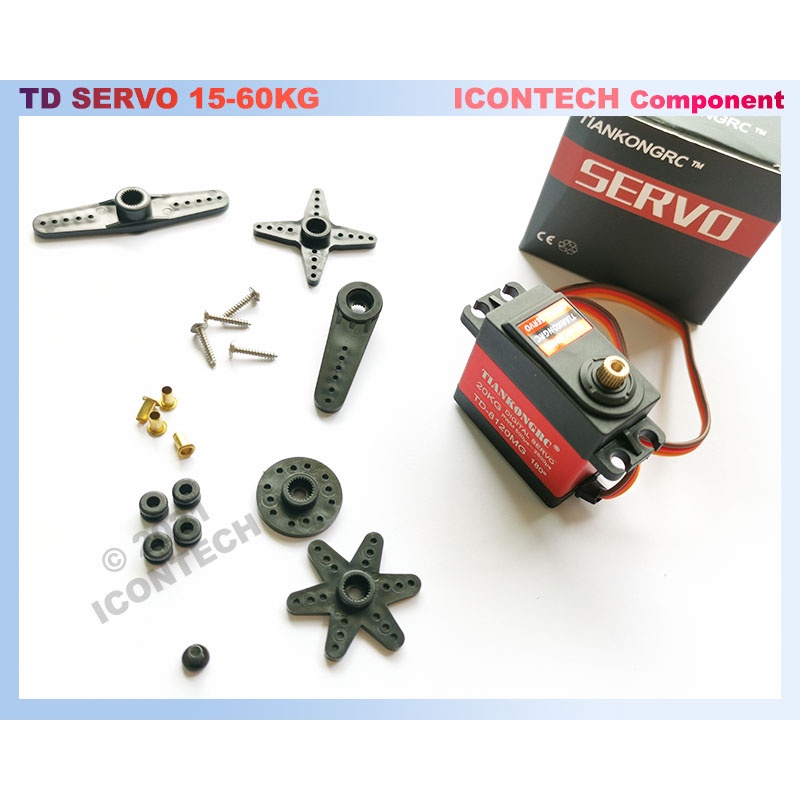

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 TD Servo Series is a High precision and High torque servo motor 15/20/25/30/35/60kg 180/270 Angle. Ideal for mechanical traction operations. Internal using dual bearing design for smoother operation and also the material are full metal (Aluminum/Copper/Stainless Steel*). Middle cover was CNC aluminum that perform better heat sink !! This servo also water resist and perfectly used for outdoor activity ! 【Application】 Suitable for RC car 1/8, 1/10, 1/12. Compatible for most of the market servo motor. Can use for controlling arm also. Can use any microcontroller/processer with PWM signal to control over it. 【Specification】 Operating voltage : 4.8-7.4V💡 Rotate Speed : 0.14sec/60deg - 0.18sec/60deg Torque : 20.5kg.cm~22.8kg.cm Stall current : 2100mA ~ 2700mA PWM : 500-2500us Output shaft : 25T Dimension 6.0mm height 4.0mm Size : 40*20.5*40mm Cable length : 32cm Weight : 65g Motor type : Direct current dual bearing Bearing material : Copper and aluminum Water Resist : YES 【Special】 Wltoys modification. Suitable for: Wltoys 144001, and wpl B1 B16 B24 B36 C14 C24 D12 RC Car. Please had a look on the dimension (40mm*20mm*40mm). Compatible to 1/8 , 1/10 , 1/12 RC Car 【Mechanical Specification】 3 Wire （32CM) ⚠️ - Red = Power - Brown = Ground - Orange = Signal *Water resist = able to resist on small amount of water splash. Not able to sink in water, that will damage the servo motor :) For normal water splash should be no problem, inside the servo motor had 2 ring of rubber that design for this. *Stainless Steel gear only applicable for 60KG servo motor 【Package Include】📦 1 x TD81XXMG + 1 x Accessory pack #DigitalGearMetalServoRC #SERVO RC #DigitalGear
