Dot Matrix Display 8x8 Square Type NEW STYLE
RM 0.00 – RM 10.00
| Availability | 25 total units |
Select option: *
Please select an option above.
Product Description

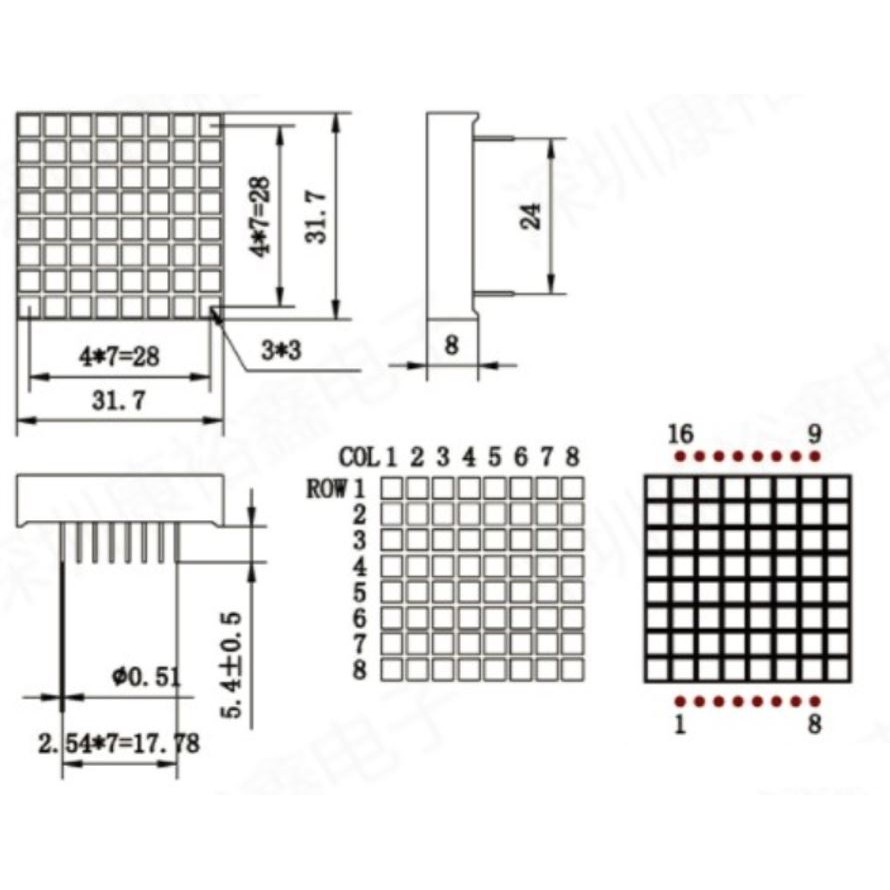

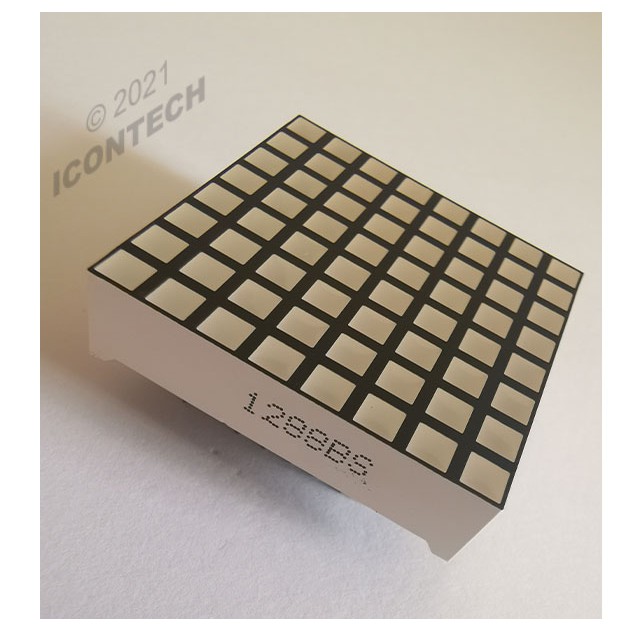

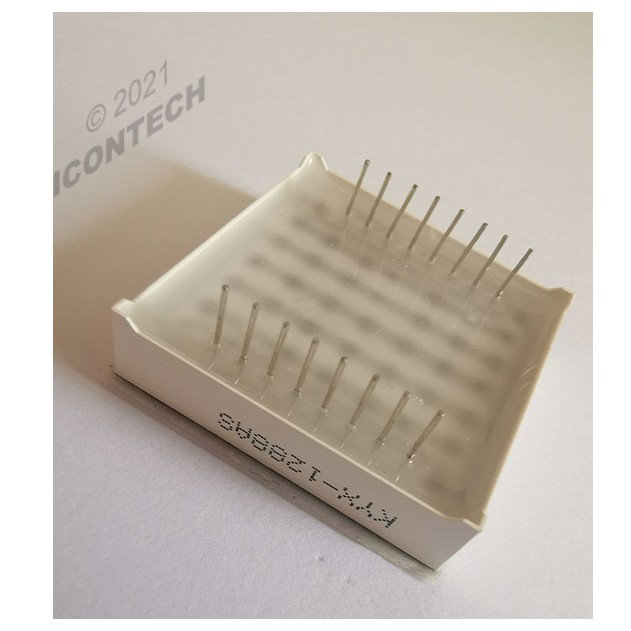

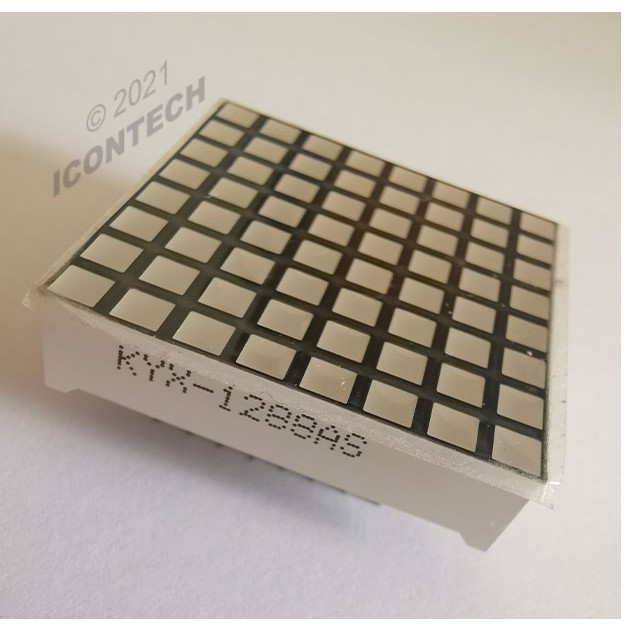

This module mostly used together with MAX7219 IC. I had attached a sample video to demo this dot matrix display. I am using ESP32 + Dot matrix + MAX7219. Product specification: Dimension refer back to the image. It's about 3.2CM * 3.2CM. There is two type of dot matrix in market 1. XXXX-AS is meant for common cathode 2. XXXX-BS is meant for common anode For the connection between MAX7219 and 8x8 Dot matrix you can refer back to the link below For further question you can ask our customer service. References: http://www.gammon.com.au/forum/?id=11516
