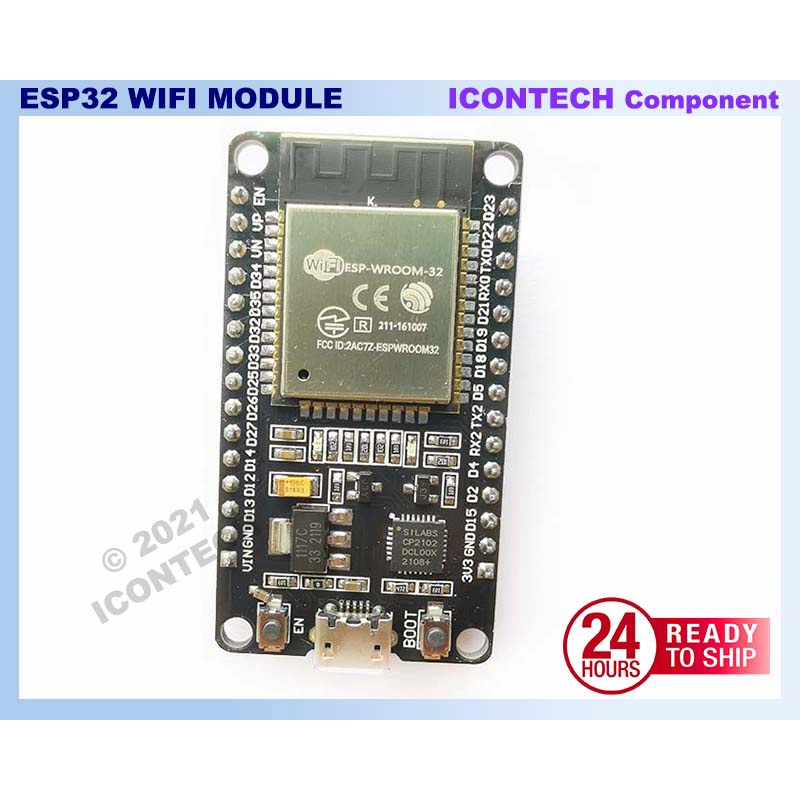

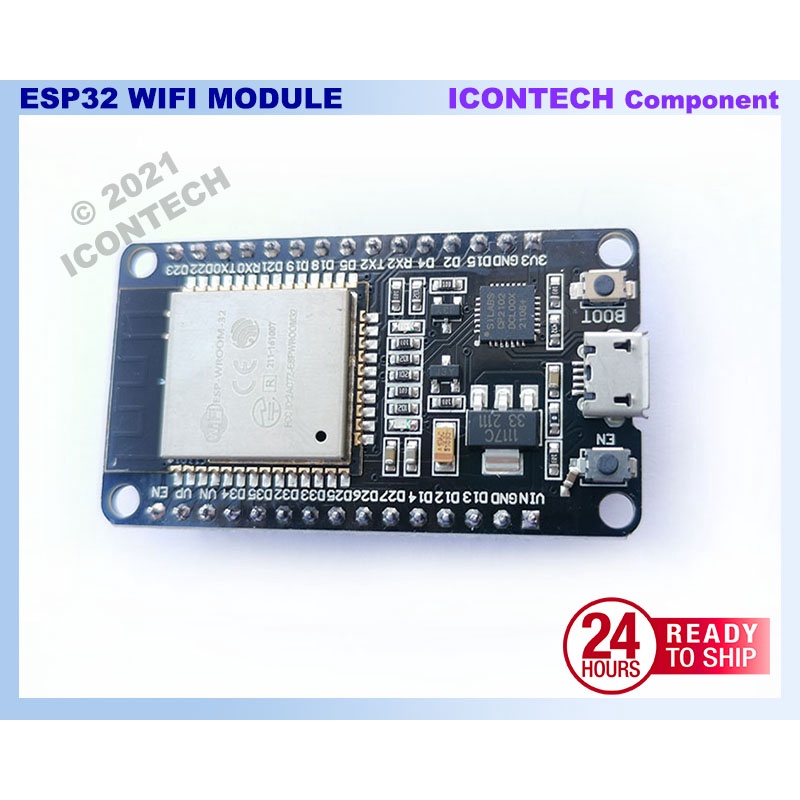

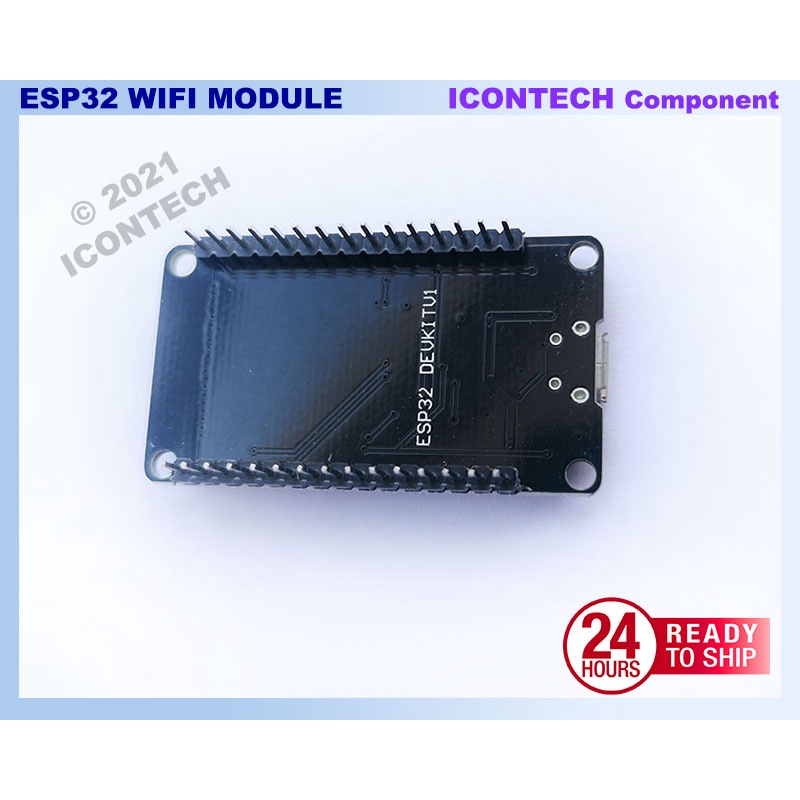

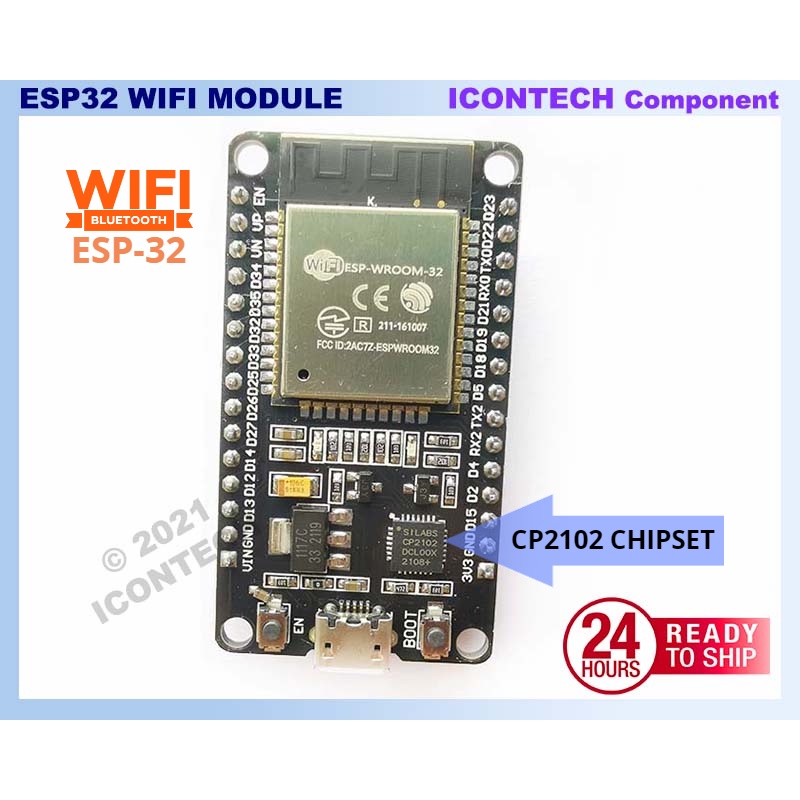

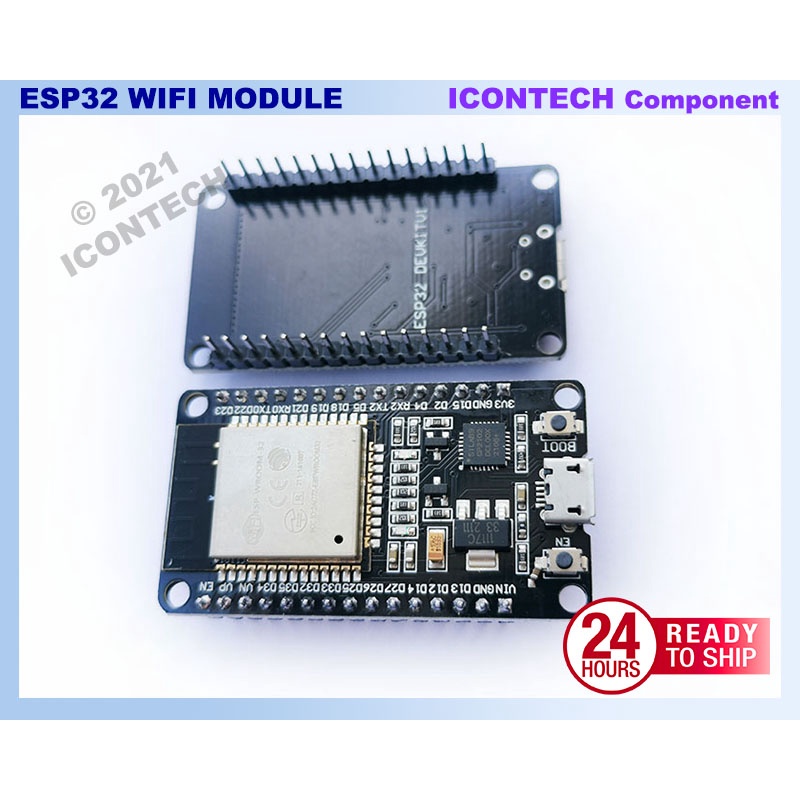

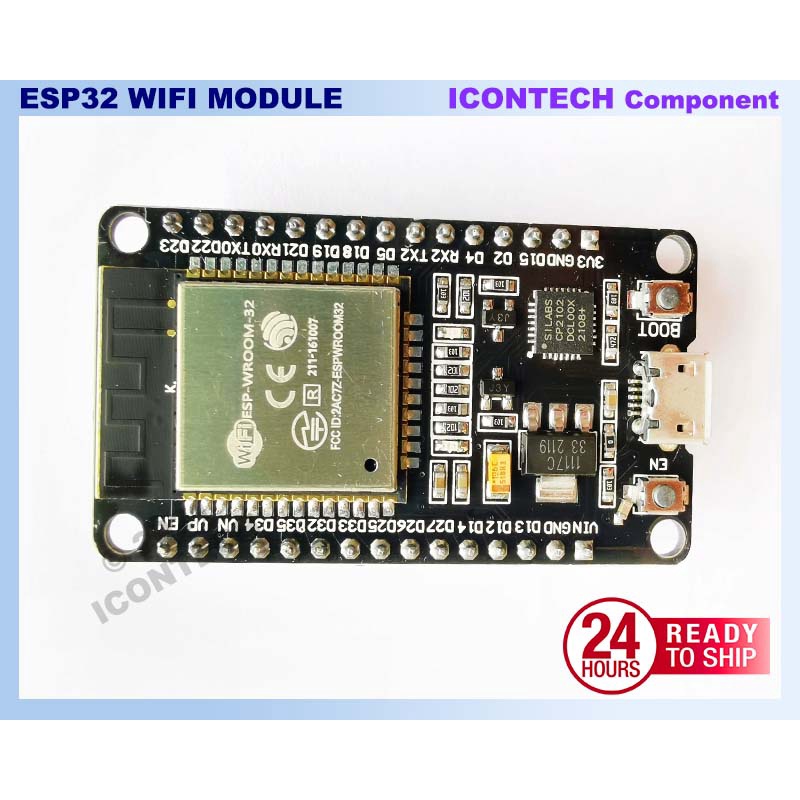

ESP32 WIFI Bluetooth Module IOT NODE-MCU32 ESP32S Node MCU (READY STOCK) Node-MCU32S

Product Description

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 ✅ Price might be expensive a little bit, but the quality is better ~! 【Description】 ESP32 Module. ESP32 is the ESP8266 successor. It adds an extra CPU core, faster Wi-Fi, more GPIOs, and supports Bluetooth 4.2 and Bluetooth low energy. Compatible ESP32. ESP-WROOM-32 is a universal Wi-Fi+BT+BLE MCU module with powerful functions and a wide range of uses. It can be used for low-power sensor networks and demanding tasks, such as voice coding, audio streaming, and WiFi Mesh, BT application etc. The core of this module is the ESP32-D0WDQ6 chip*, which is scalable and adaptive. The two CPU cores can be individually controlled or powered on. The adjustment range of the clock frequency is from 80 MHz to 240 MHz. The user can cut off the power of the CPU and use the low-power coprocessor to continuously monitor the status changes of the peripherals or whether certain analog quantities exceed the threshold. 【Specification】 - WiFI 802.11 b/g/n (2.4 GHz), up to 150 Mbps - BT Compliant with Bluetooth v4.2 BR/EDR and BLE specifications - Processor Xtensa® single-/dual-core 32-bit LX6 microprocessor(s), up to 600 MIPS Support peripherals 34 × programmable GPIOs - 12-bit SAR ADC up to 18 channels - 2 × 8-bit DAC - 10 × touch sensors - 4 × SPI - 2 × I²S - 2 × I²C - 3 × UART - 1 host (SD/eMMC/SDIO) - 1 slave (SDIO/SPI) - Ethernet MAC interface with dedicated DMA and IEEE 1588 support - CAN 2.0 - IR (TX/RX) - Motor PWM - LED PWM up to 16 channels - Hall sensor 【References】 ESP 32 Datasheet - https://www.espressif.com/sites/default/files/documentation/esp32_datasheet_en.pdf ESP32 Get started - https://docs.espressif.com/projects/esp-idf/en/latest/esp32/get-started/ ESP32 Quick start - https://randomnerdtutorials.com/getting-started-with-esp32/ 【Notes】 Packing with FOAM and nicely wrapped ! Ship within 24 hour. Different between ESP32 DEV vs ESP32S ALL SPECIFICATION ARE SAME ~! JUST DIFFERENT MANUFACTURER, ESP32S chipset from EspressIF, so a little bit expensive compare ESP32 DEV ! ALL FUNCTIONALITY ARE SAME, IF GOT PROBLEM 1 TO 1 EXCHANGE 【Package Include】📦 1x ESP32
