ESP8266 V2 NodeMCU CP2102 WIFI ESP12E-10 ESP8266 V3 CH340 Lolin Lua NodeMCU ESP8266 V2.1 ESP12E 8266 Wifi Module

Product Description

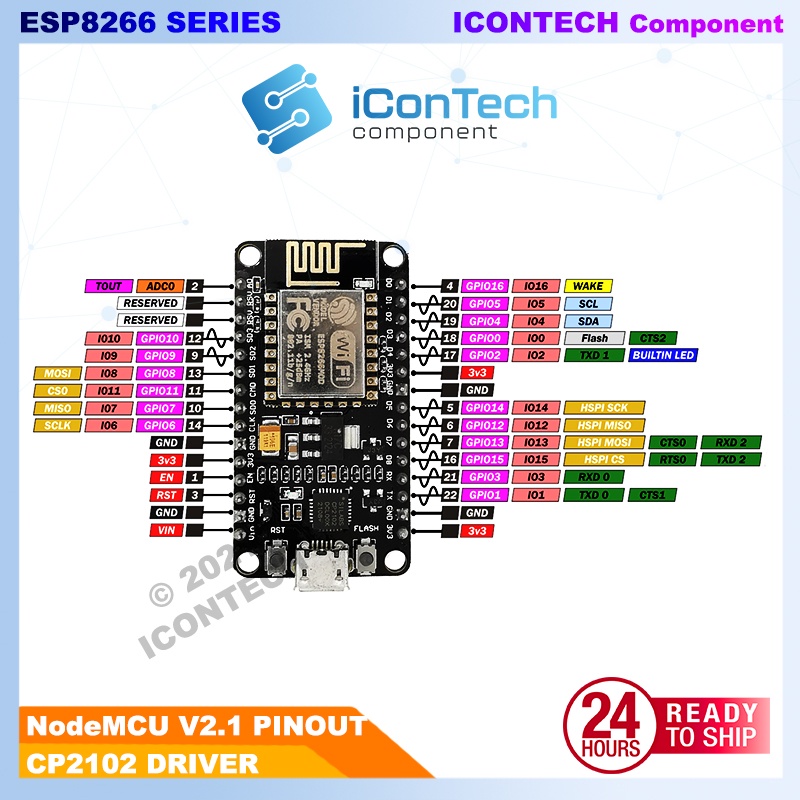

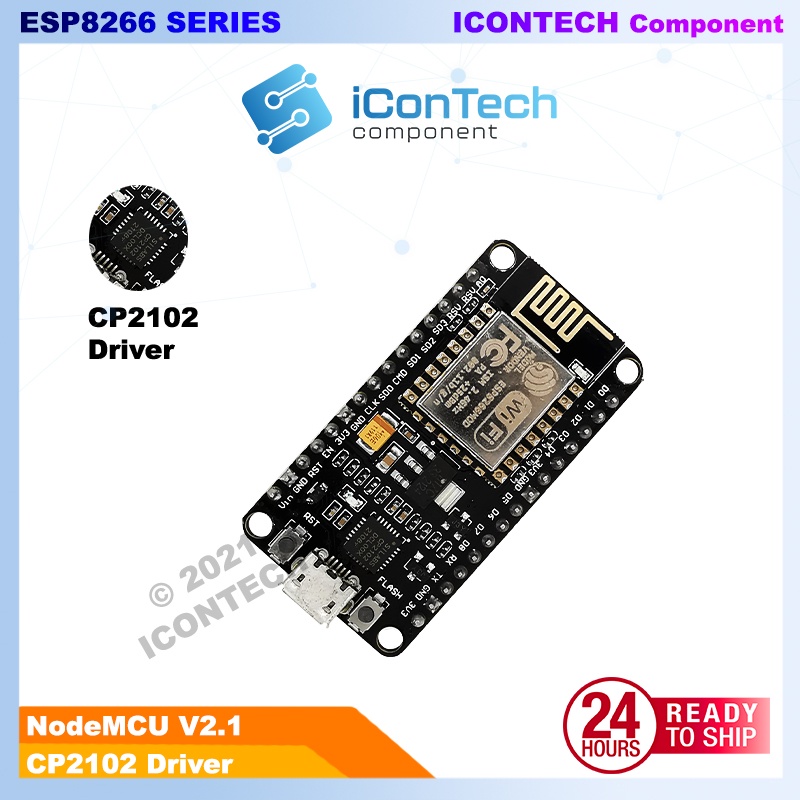

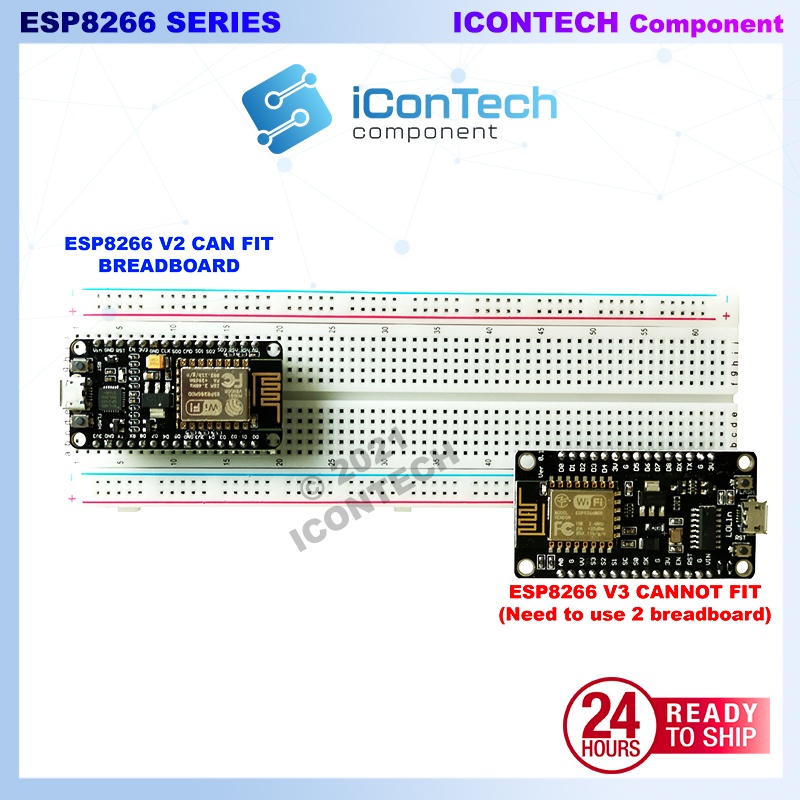

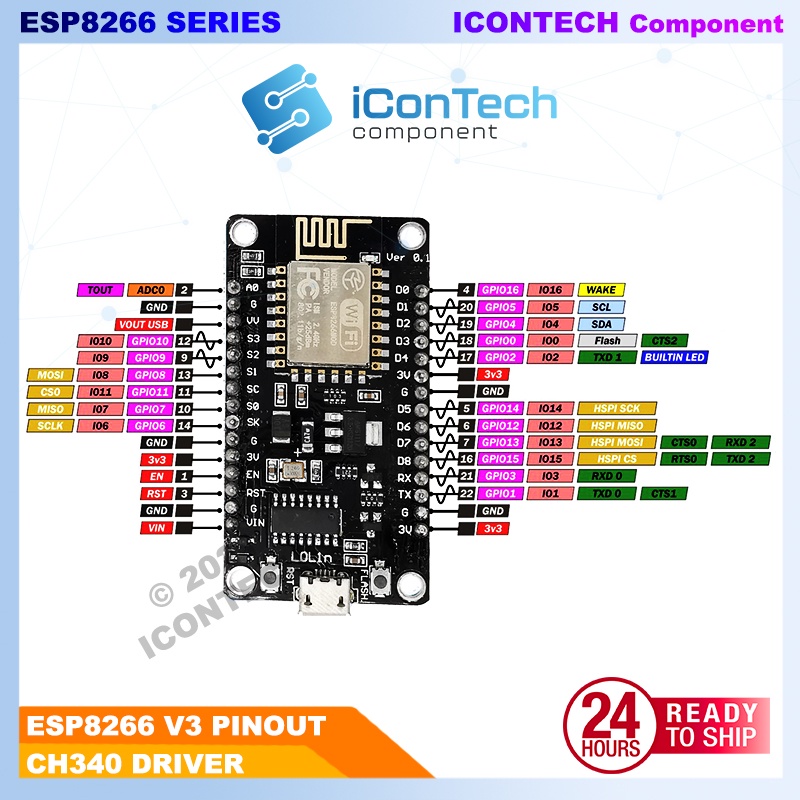

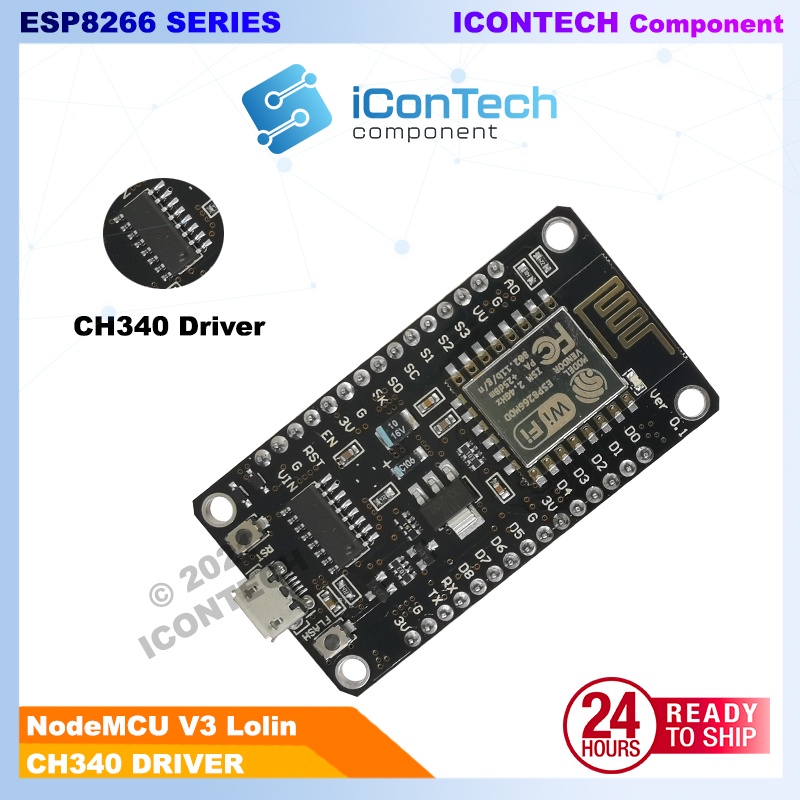

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 This is the latest version ESP8266, version 3 with upgraded USB IC from CH340 to CP2102 which provide much more stable connection. CP2102 more stable compare to CH340. You can take a loot on the different between these 2 IC https://arduino.stackexchange.com/questions/54640/difference-between-these-two-nodemcu-boards#:~:text=The%20biggest%20difference%20is%20the,die%20at%20a%20moments%20notice. The ESP8266 is a low-cost Wi-Fi microchip, with a full TCP/IP stack and microcontroller capability. 【IMPORTANT】 - For variant not label TYPE C, it's micro USB variant - ONLY V3 can suite to the board expander, V2 cannot suite, please check properly 【Reference】 - Datasheet https://docs.ai-thinker.com/_media/esp8266/docs/esp-12f_product_specification_en.pdf 【Product information】 Wireless 802.11 b / g / n standards CP2102 USB to serial converter Support STA / AP / STA + AP three operating modes Built-in TCP / IP protocol stack to support multiple TCP Client connection (5 MAX) D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc. Port Drive 15mA AD0: 1 channel ADC Power input: 4.5V ~ 9V (10VMAX), USB-powered, providing USB debugging interface Current job: keep sending: ≈70mA (200mA MAX), Standby: <200uA Transfer rate: 110-460800bps Support UART / GPIO data communication interface Remote firmware upgrade (OTA) Smart Link supports intelligent networking capabilities Operating temperature: -40 ℃ ~ + 125 ℃ Drive Type: Dual high-power H-bridge driver Module Weight: about 7g 【Package Include】📦 1 x ESP8266 For more details or reference source code please contact our customer service. #ESP8266 #ESP01S #ESP01 #ESP8266 NodeMUCU #LuaMCU #ESP8266 V3 #ESP8266 Lolin
