GM65 BarCode Reader MG65 Bar code reader module UART USB supported with LED

Product Description

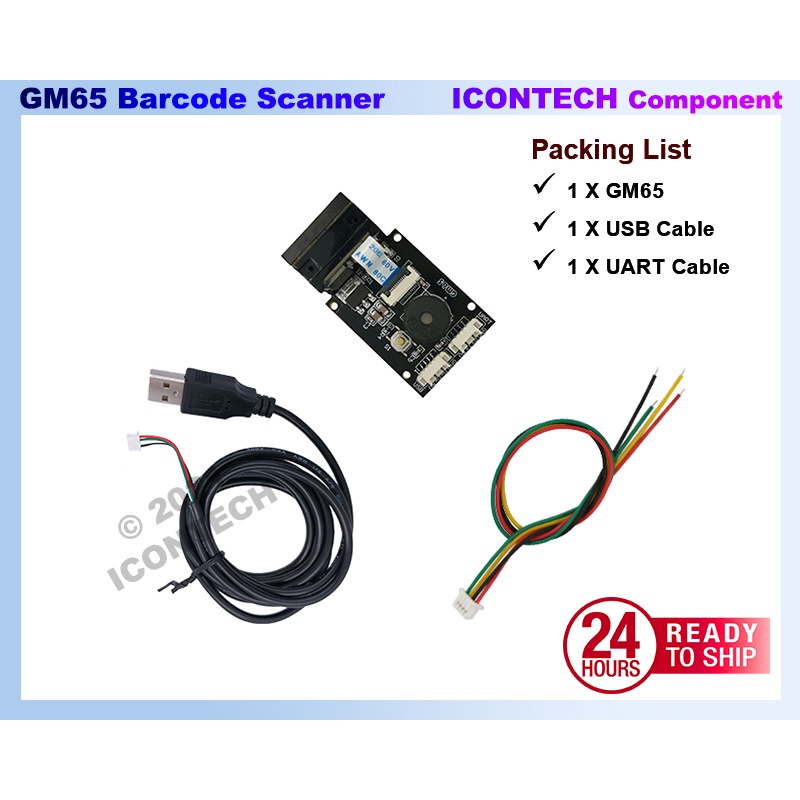

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 GM65 Bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed.It also support high scan speed for linear code,even for bar code on paper or screen. 【Features】 Default scan mode - Continuous scan Read code time for once 3s Parameter ：0.1-25.5s; step-size: 0.1s; 0 means no time limited Output :GBK GBK、UNICODE、 BIG5 Interface : USB KBW USB KBW、serial port、USB VCom Interface ( TTL-232) Serial Baud Rate 9600 adjustable 【Electrical Specification】 1. Operating votlage 4.2-6v 2 Standby Current 30mA 3 Operating Current 160mA 4 Sleep Current 3mA running characteristic 【Operating Specification】 1 Light White light 2 Capture light Red 3 Scan Angle Roll:0-360°, Pitch:±65°, Yaw:±60° 4 Resolution 648x 488 5 Scanning angle 35°（Inclination）, 28°（Elevation） 【Reference】 http://www.microtechnica.tv/support/manual/brm65_man.pdf 【Package Include】📦 1 x GM65 barcode scanner + 1 USB cable + 1 UART cable
