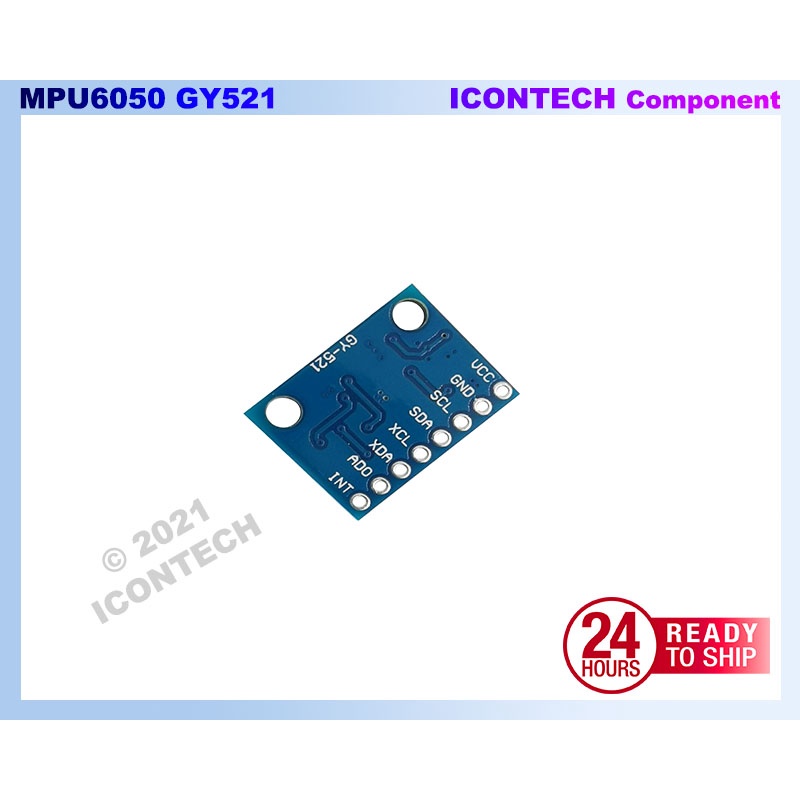

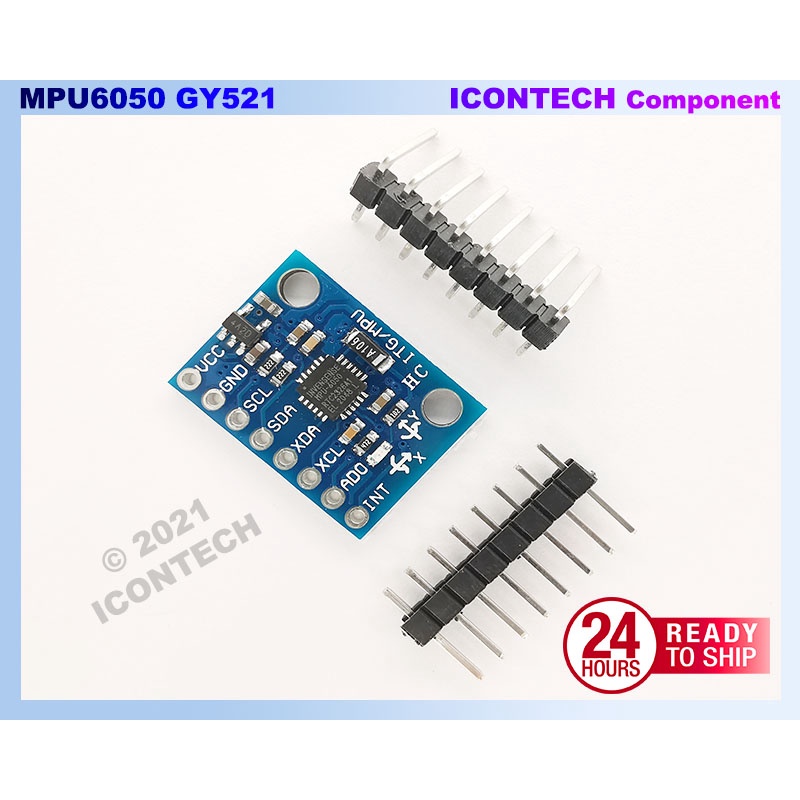

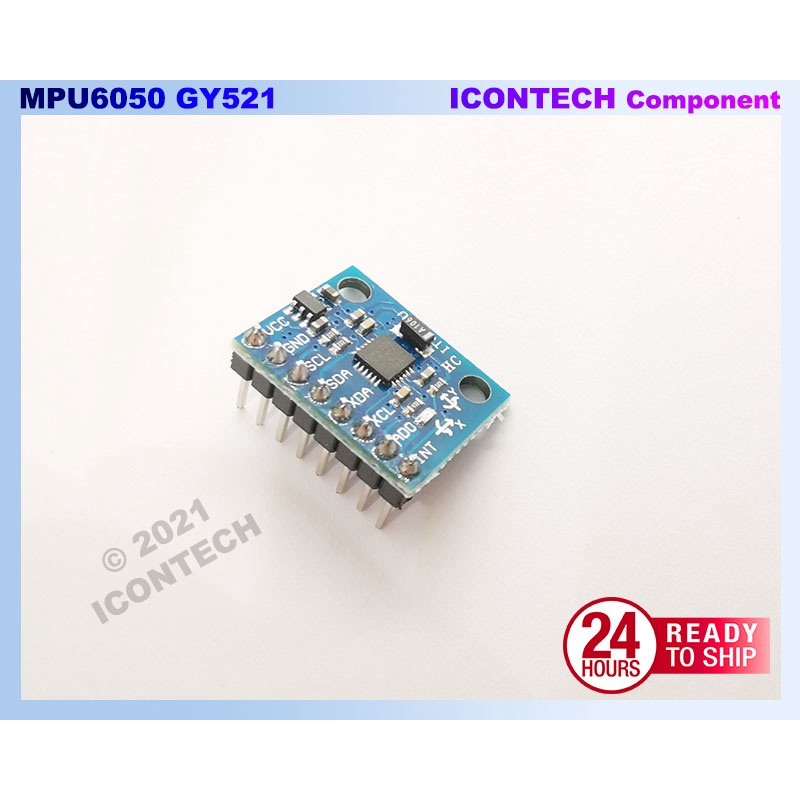

GY-521 MPU 6050 3 Axis Gyro Accelerometer Sensor 6DOF Module GY521 MPU6050

Product Description

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 The MPU-6050 is a serious little piece of motion processing tech! By combining a MEMS 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor™ (DMP™) capable of processing complex 9-axis MotionFusion algorithms, the MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts. This is the breakout board for the MPU-6050 makes this tiny QFN package easy to work into your project. Every pin you need to get up and running is broken out to 0.1" headers, including the auxiliary master I2C bus which allows the MPU-6050 to access external magnetometers and other sensors. 【Application】 Gyro and Accelerometer related project 【Product information】 Features: chip: MPU - 6050 Power supply: 3-5V Communication mode: standard IIC communication protocol Chip built-in 16 bit AD converter, 16 bits data output Gyro scope: ± 250 500 1000 2000 ° / s Acceleration scope: ± 2 ± 4 ± 8 ± 16 g Lead foot spacing:2.54 mm 【Technical Document】 I2C Digital-output of 6 or 9-axis Motion Fusion data in rotation matrix, quaternion, Euler Angle, or raw data format Input Voltage: 3.3 - 5.0V Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g Digital Motion Processing™ (DMP™) engine offloads complex Motion Fusion, sensor timing synchronization and gesture detection Embedded algorithms for run-time bias and compass calibration. No user intervention required Digital-output temperature sensor 【References】 https://playground.arduino.cc/Main/MPU-6050/ 【Notes】 https://diydrones.com/forum/topics/bad-fast-rotation-effect-for-arduimu-mpu6050-9150-9250 【ATTENTION】 1. For the MPU6050 we tested using ESP32, Adafruit MPU6050 basic reading library 2. For the unsolder version of MPU6050, solder at your own risk ! 3. For beginner we recommend select for soldered & tested version. It's 100% work. 【Package Include】📦 1 x MPU6050 + 2 Pin Head or 1 x MPU6050 Soldered
