HC-SR505 mini PIR sensor DIY Arduino STM32

Product Description

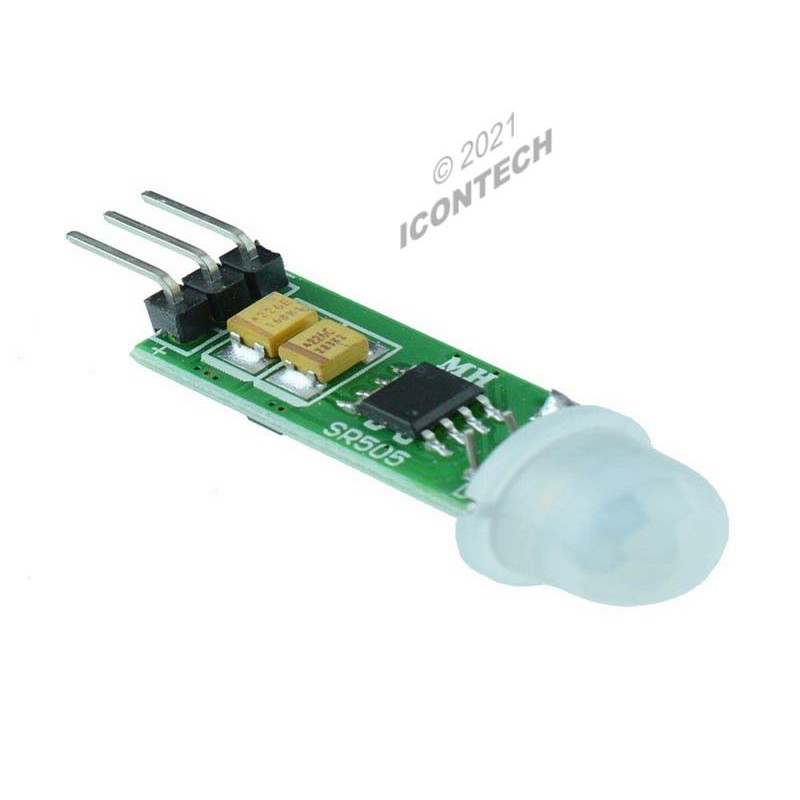

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 This is a mini version PIR sensor, with high sensitivity and reliability. 【Specification】 Operating voltage range: DC4.5-5V Quiescent Current: <60uA Level output: High 3.3V / Low 0V Trigger: reusable trigger (default) Delay Time: The default 8S + -30% Board Dimensions: 10 * 23mm Induction angle: <100 degrees cone angle Sensing distance: 3 meters Working temperature: –20 to +80 degrees Sensor Lens Dimensions: Diameter 10mm 【Reference 】 - Datasheet https://static.rapidonline.com/pdf/78-4110_v1.pdf
