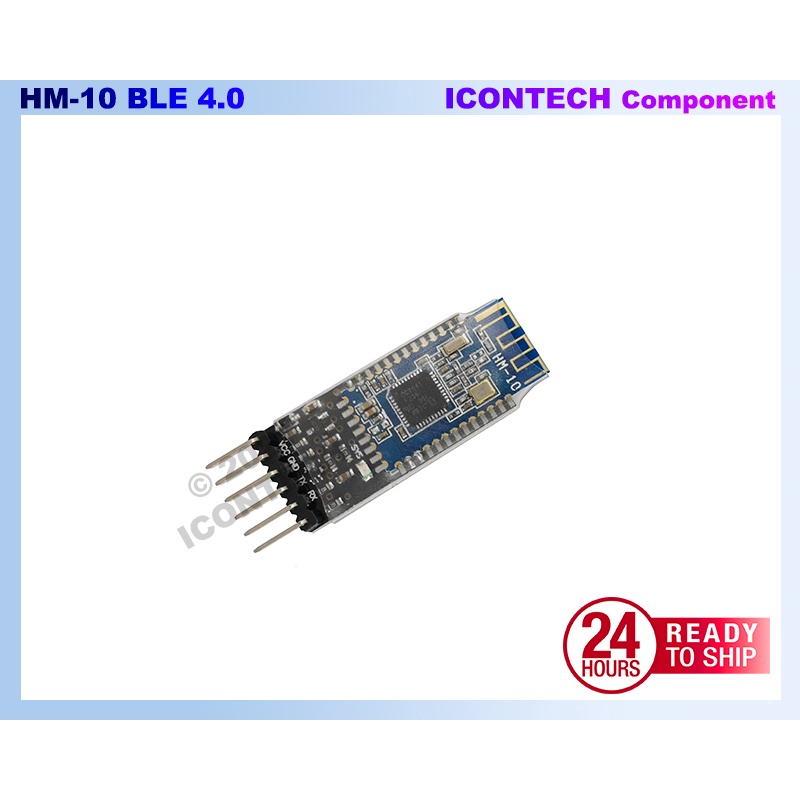

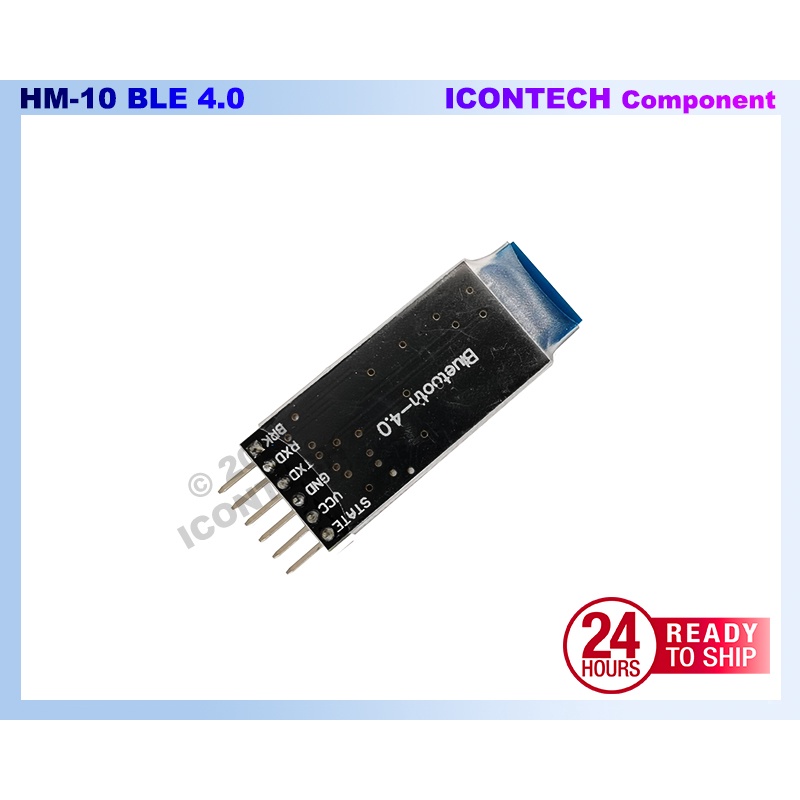

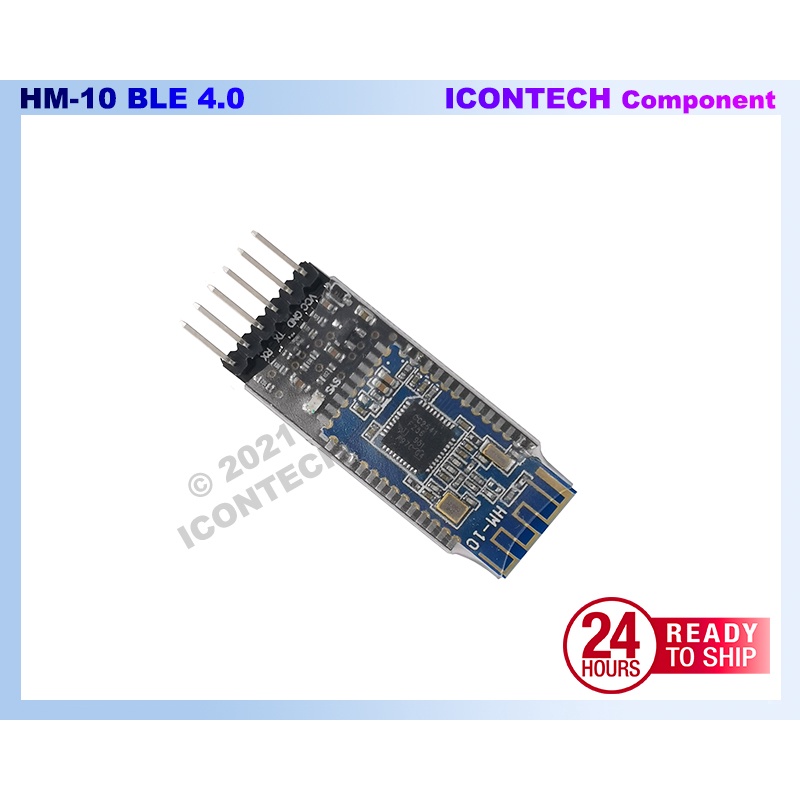

HM-10 Bluetooth 4 BLE Modules Wireless Bluetooth v4.0 BLE Module HM10 Bluetooth

Product Description

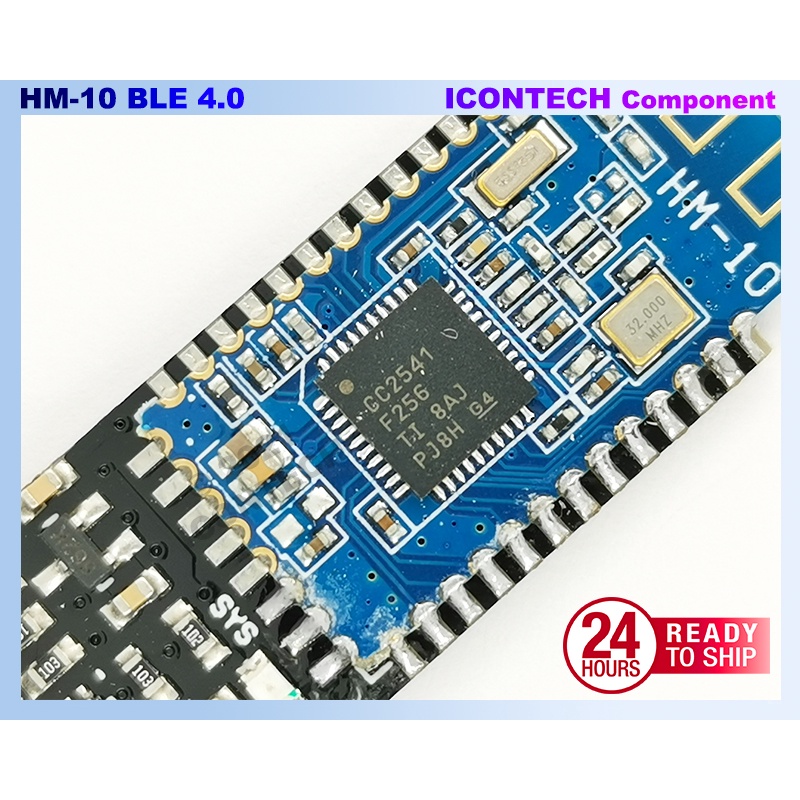

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 The HM-10 is a readily available Bluetooth 4.0 module used for establishing wireless data communication. The module is designed by using the Texas Instruments CC2540 or CC2541 Bluetooth low energy (BLE) System on Chip (SoC), design and firmware originated from the Jinan Huamao Technology Company. 【Features】 BT Version: Bluetooth Specification V4.0 BLE chip - Bluetooth Low Energy consumption Send and receive no bytes limit. Working frequency: 2.4GHz ISM band UART Serial Interface Full-Speed USB Interface 12 General Purpose Input/output Pins In-System-Programmable Flash- 128 KB or 256KB 8-KB SRAM 32-kHz Sleep Timer With Capture Long range: Open space have 100 Meters Potable size HM-10 MODULE Specifications Operating voltage of MODULE: 2.0V – 3.6V Can operate on LOW voltages Consumes 235uA on battery backup Input RF level: 10dBm Maximum voltage: + 3.9V Operating temperature: -40ºC to +85ºC ESD: 750V 【IMPORTANT】 !! PLEASE BUY ACCORDING TO THE FIRMWARE VERSION YOU NEED !! 【References】 http://www.martyncurrey.com/hm-10-bluetooth-4ble-modules/ 【Package Include】📦 1 x HM10 BLE 4.0
