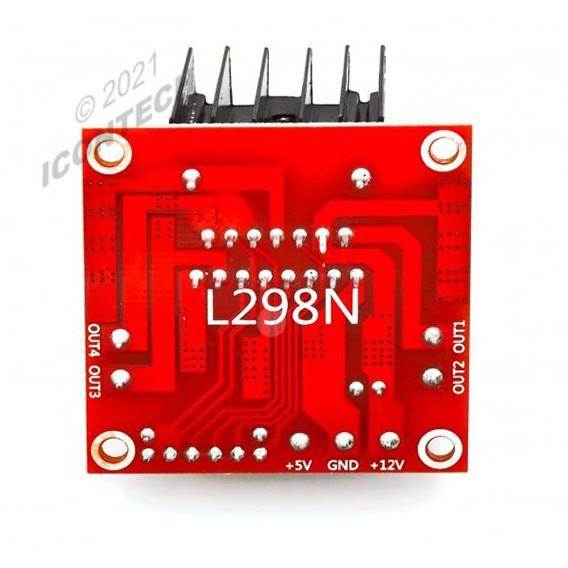

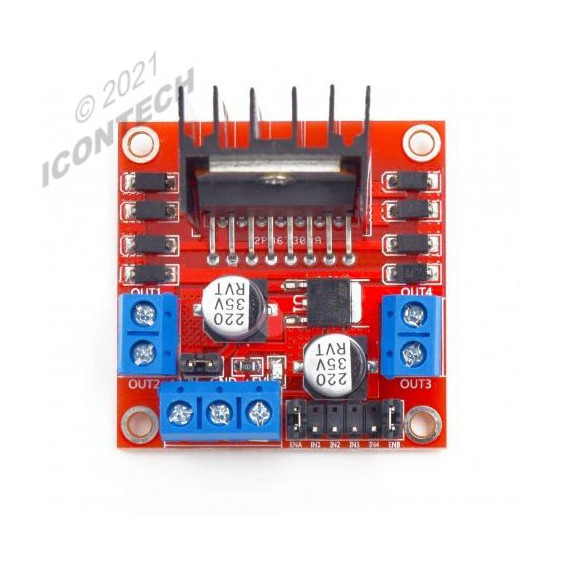

L298N DUAL H-BRIDGE MOTOR DRIVER

Product Description

Description This is the popular L298N Dual H-Bridge Motor Controller, typically used to control motor speed and rotation direction. It can also be used for other products such as with LED arrays, relays, and solenoids, etc. It's a powerful little motor driver with a heavy duty heat sink. Capable of powering 5-35V motors with a max of 2A. We've used up to 4 motors using the 6 onboard screw-terminals. It has an onboard 5V regulator that can output up to 1A with components with 5V power requirement. Don't use the 5V regulated power when supplying more than 12V to motors. Specification: Double H-bridge drive Chip: L298N (ST NEW) Logic voltage: 5V Drive voltage: 5V-35V Logic current: 0mA-36mA Drive current: 2A(MAX single bridge) Storage temperature: -20 to +135 Max power: 25W Weight: 30g Size: 43*43*27mm ( approx 1.75" x 1.75" x 1") Compatible with L297/L298 driver Datasheet https://www.sparkfun.com/datasheets/Robotics/L298_H_Bridge.pdf
