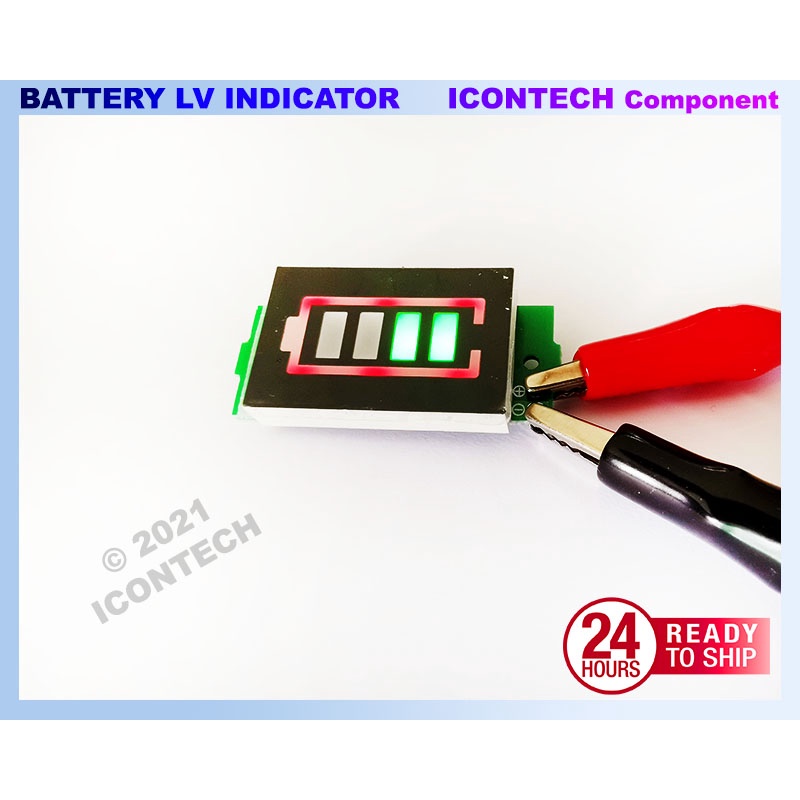

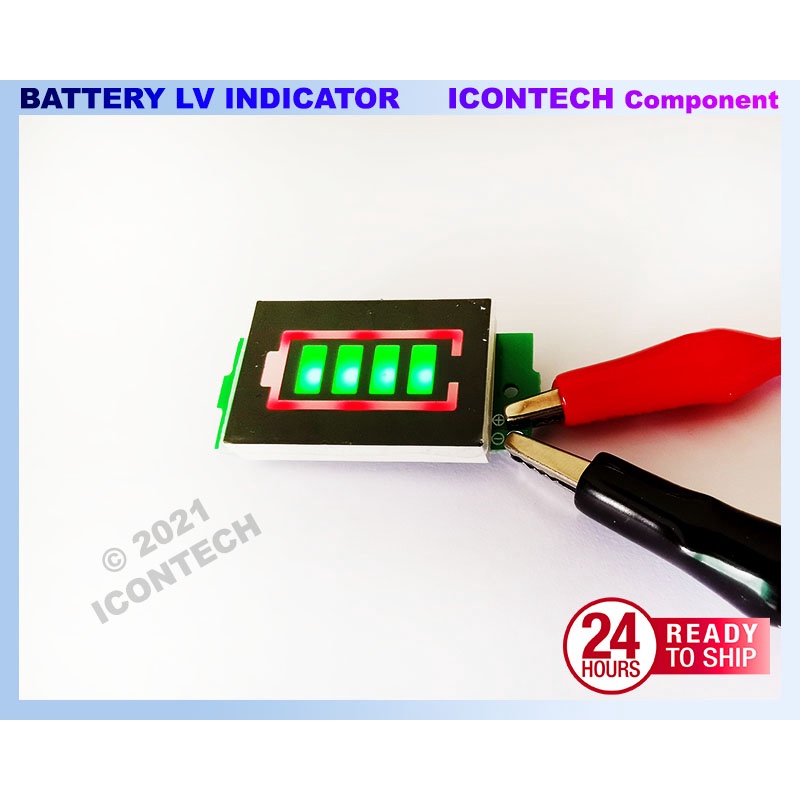

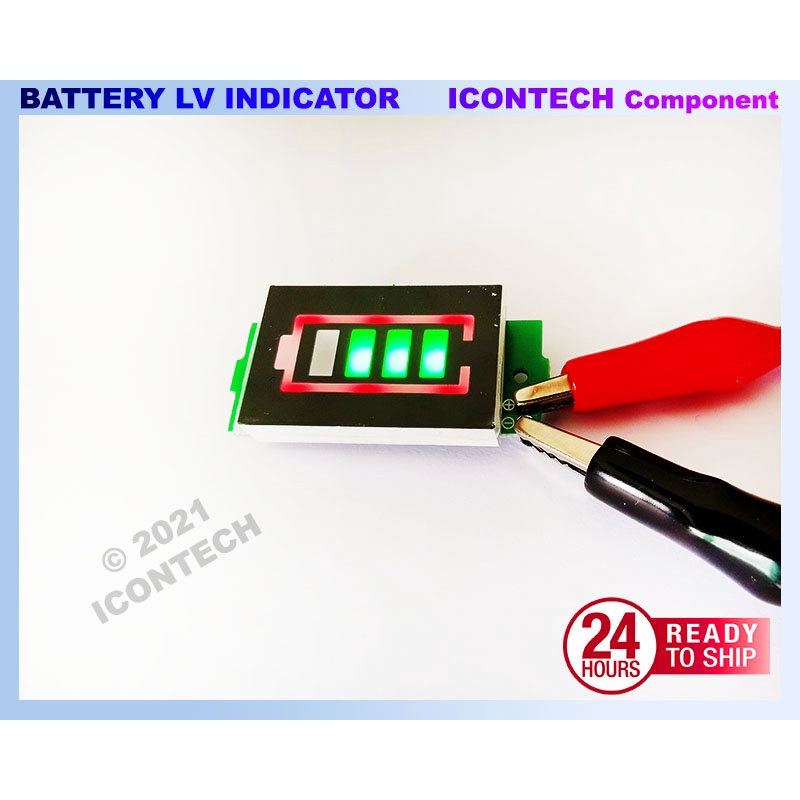

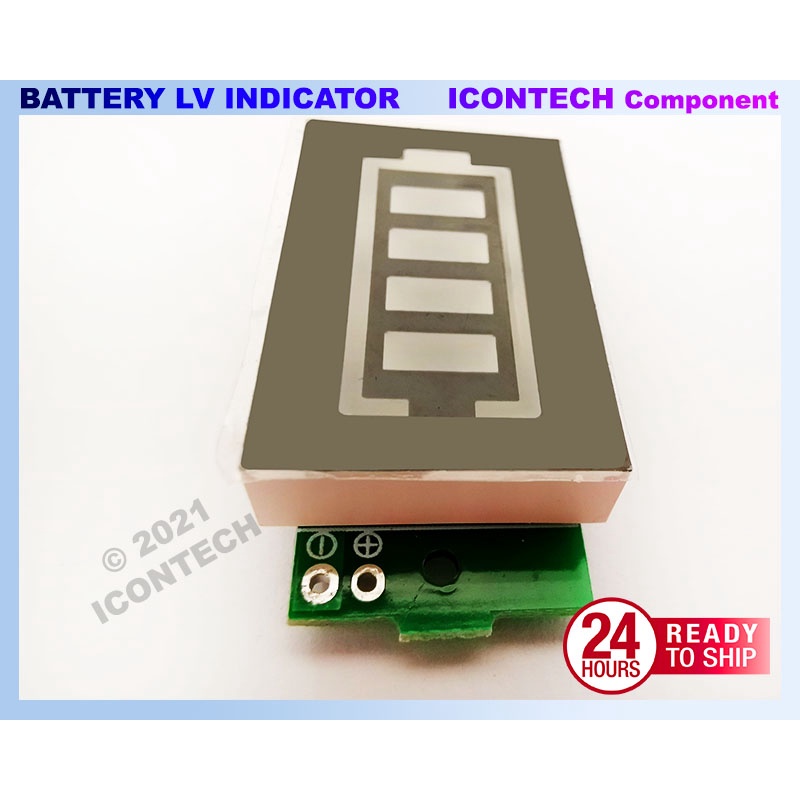

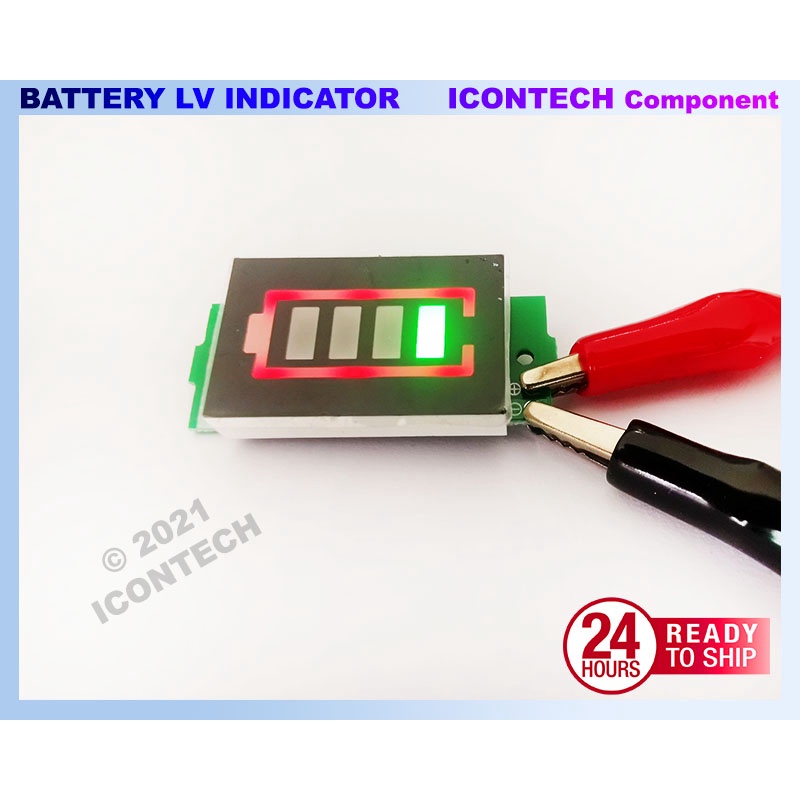

Lithium ION Battery Level Indicator Module

Product Description

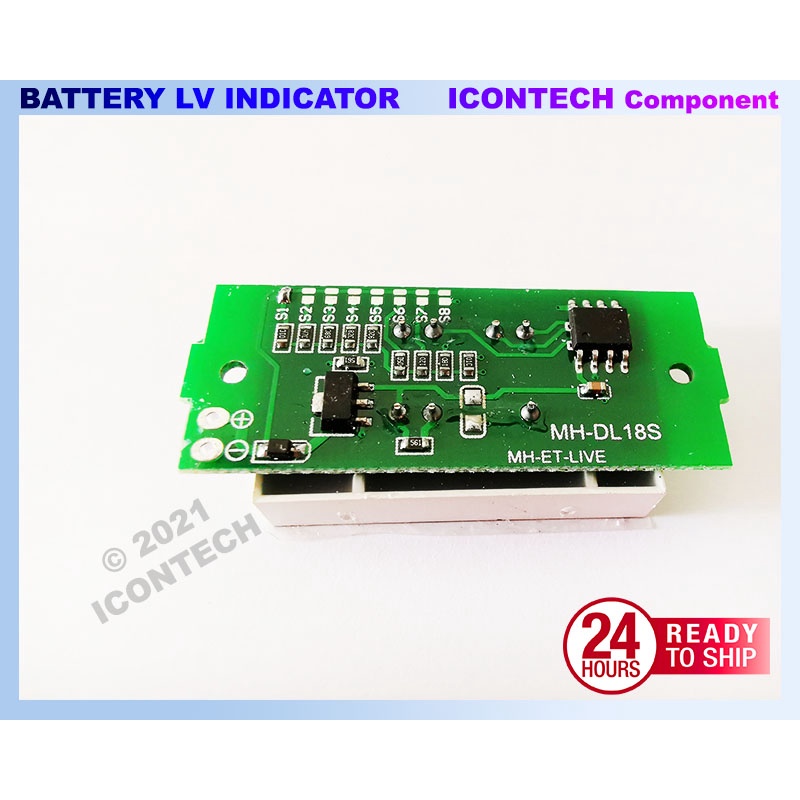

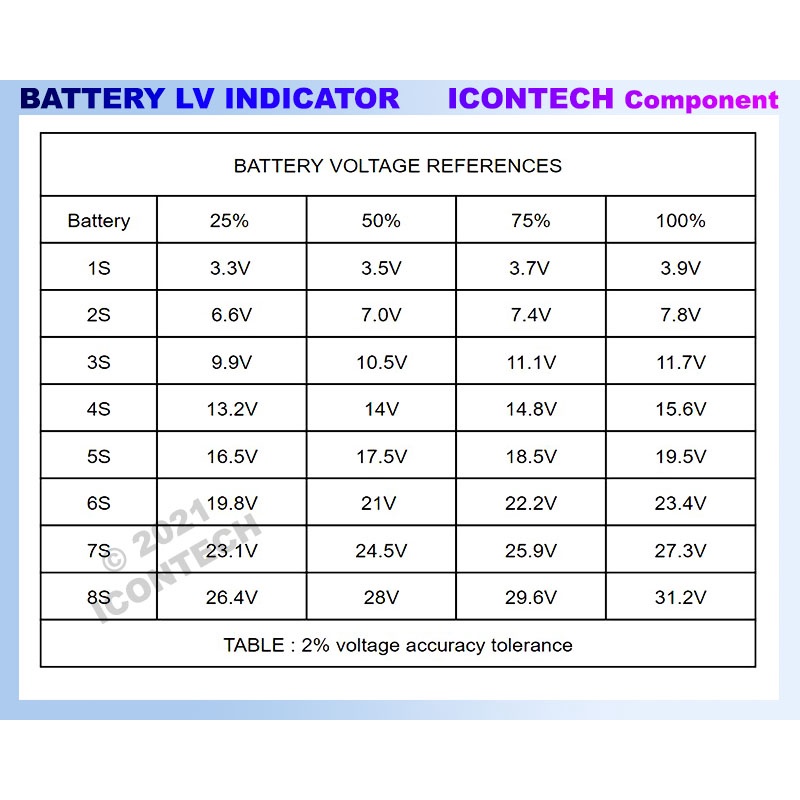

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 3.7V 1/2/3/4/5/6/7/8S 18650 Li-po Li-ion Lithium Battery Packs Battery Capacity Indicator Meter Power Level Tester Module Display Boar 【Features】 1. Wide fields of application: lithium battery 2. Easy to use : connect the positive and negative port port with the positive tested battery 3. Digital Color: red outline, green block screen 【Specification】 1. Operating voltage 3-34V, operating current 5mA 2. Operating temperature -20 ~ 50 celcius 3. Accuracy 2 % tolerance 4. 43.5 * 20 CM 【Operating Guide】 1. Default measurement is 1 Slot battery 2. If you gonna to change to 2/3/4/5/6/7/8 slot, please turn the module back and following the step below 3. Remove the soldering pad at S1, make it open circuit 4. Solder according to your selection, for example connect with 3 battery just solder S3, make it short circuit 5. Now battery measurement are based on 3 battery 6. If wanna to change to 2 battery measurement, just unsolder S3 and solder on S2 7. Please take note only 1 short circuit is allow from S1 to S8 8. Battery reference show in image 【Package Include】📦 1 x Battery Level Indicator
