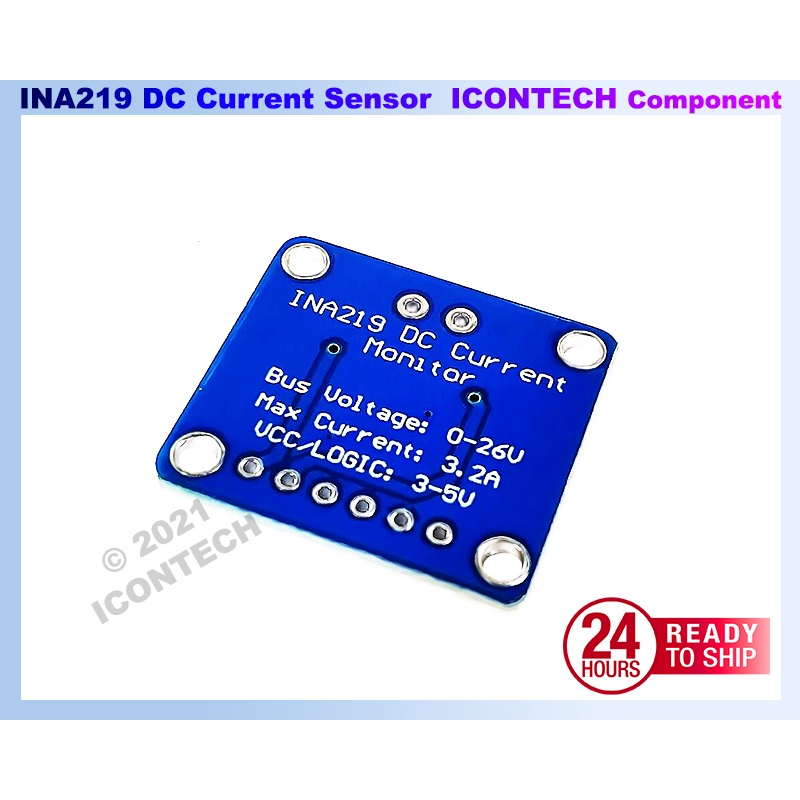

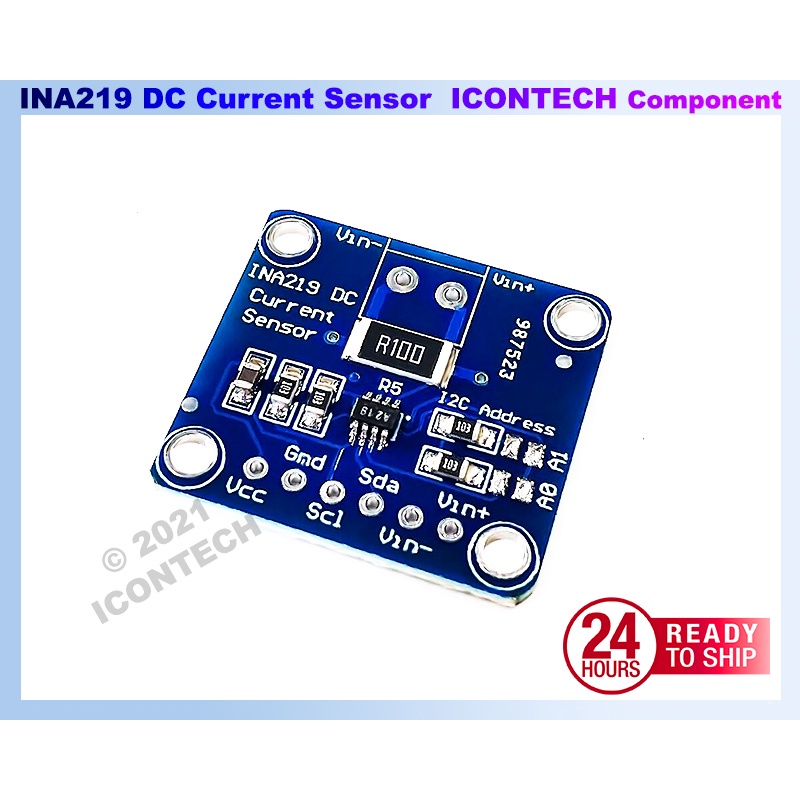

MCU-219 INA219 Current Measure Sensor Module I2C Zero Drift Bi-directional current measure

Product Description

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 The MCU-219 module is an I2C interface with a bi-directional drift current / power monitor (IC) integrated circuit, TI further expands energy-saving electronic products. INA219 industry with the highest precision and the most compact size, it can not only control the voltage drop through the shunt resistor, shunt supply voltage detection, while also calculating the power 【Electrical Specification】 Common mode voltage (Max): 26V Common mode voltage (Min): 0V Input offset (+/-) (Max): 50, 100uV Input offset drift (+/-) (Typ): 0.1uV/C Gain: 1, 0.5, 0.25, 0.125V/V Gain error: 0.5, 0.3% Gain error drift (+/-) (Max): 83ppm/°C CMRR (Min): 120dB Bandwidth: 5.5kHz Supply voltage (Max): 5.5V Supply voltage (Min): 3V Iq (Max): 1mA Digital interface: I2C, SMBus Resolution:12 Bits Operating temperature range: -40 to 125C 【Physical Specification】 Dimension 22 x 25mm 【Package Include】📦 1x INA 219 Module
