NEMA 17HS4401 Bipolar Stepper Motor 17HS4401 40MM FREE Wire 1.5A Stepper Motor 3D Printer Nema17

Product Description

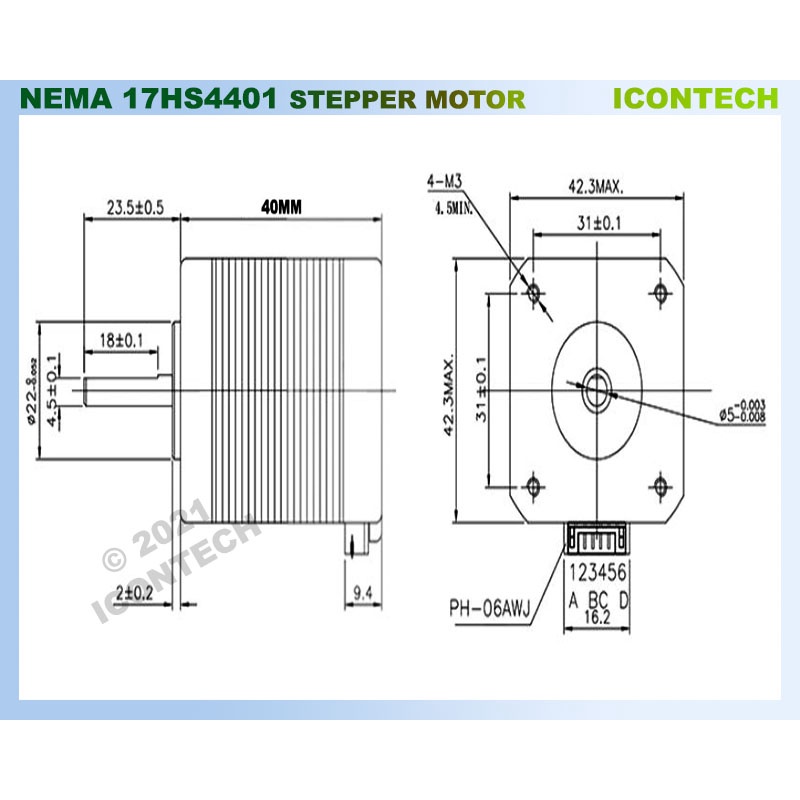

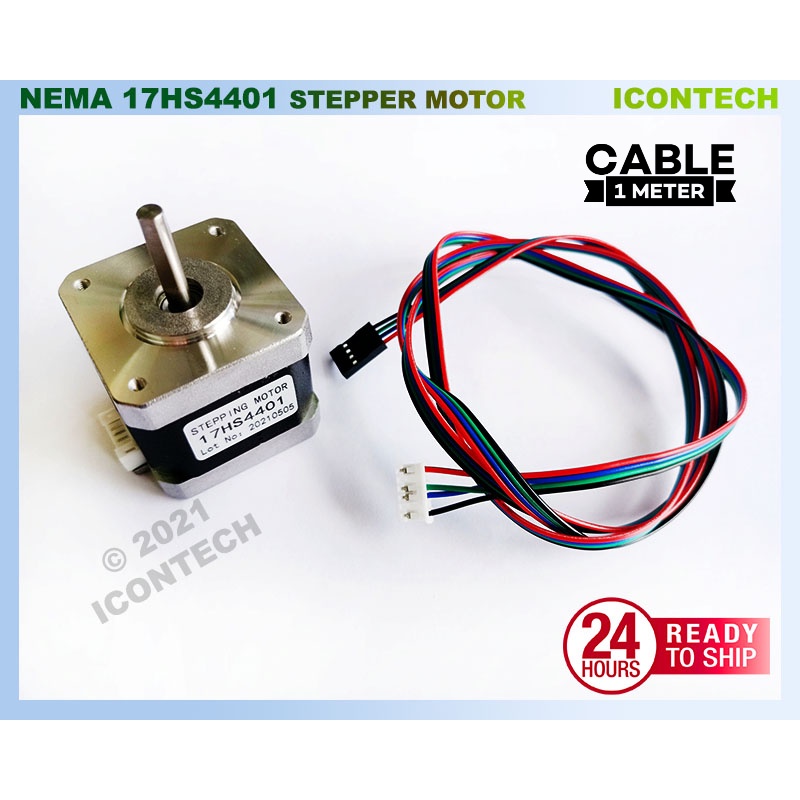

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 Stepper motor is a motor that moves in discrete steps, one step at a time. It is generally used in a variety of applications where precise position control is desirable such as 3D printer, laser cutter and pick & place machine. This NEMA 17HS4401 bipolar stepper motor has a 1.8º step angle (200 steps/revolution) with 40N.cm (56oz.in) holding torque. 【Electrical Specification】 Motor Type: Bipolar Stepper Step Angle: 1.8 deg Holding Torque: 40N.cm (56oz.in) Rated Current/phase: 1.7A Phase Resistance: 1.5Ohm±10% Insulation Resistance: 100MΩ¸ Min, 500VDC Insulation Strength: 500VAC for one minute 【Physical Specification】 Frame Size: 42 x 42mm (1.7 inch x 1.7 inch) Body Length: 40mm Shaft Diameter: 5mm Number of Wire Leads: 4 Wire Length: 400mm Weight: 280g Temperature rise: 80deg Max(rated current, 2 phase on) 【Package Include】📦 - 1 x NEMA 17HS4401 Bipolar Stepper Motor - 1 x Stepper motor wire
