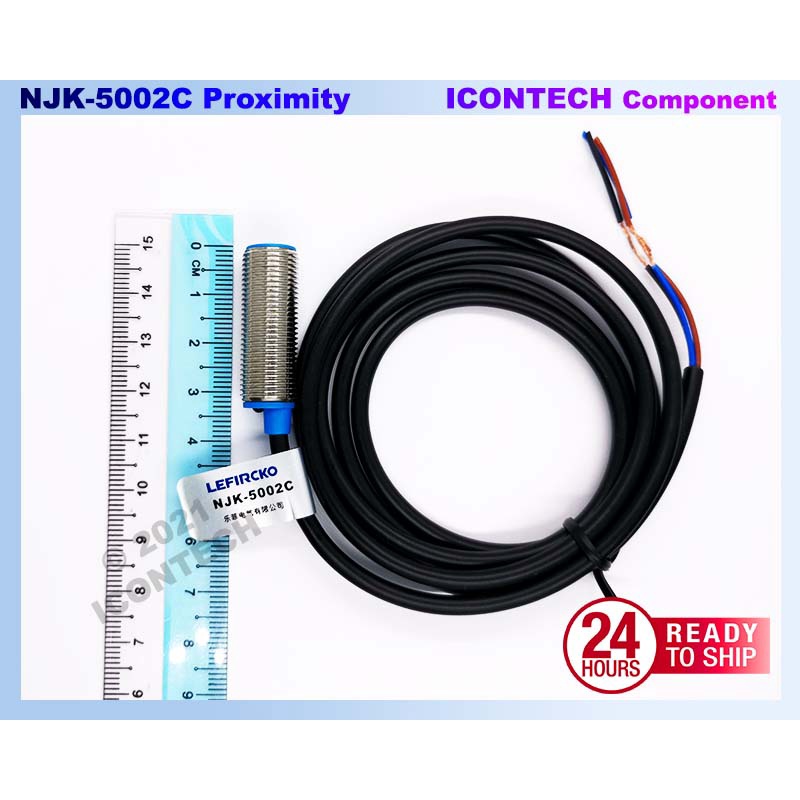

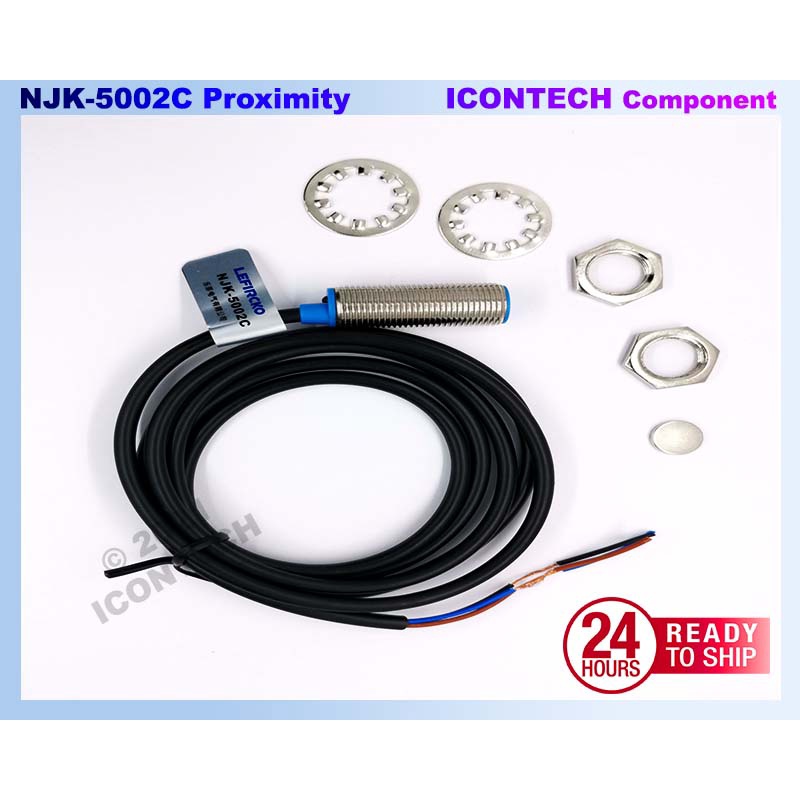

NJK-5002C Proximity Sensor Hall Sensor NJK5002 Magnetic Proximity Sensor NJK5002C

Product Description

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 This Hall Effect Switch Sensor is ideal for detecting the presence of ferrous or magnetic objects to determine rotational speed, the presence or absence of parts, or position limits. The output for this sensor is an open collector type. This means it is like a switch that connects the signal wire to ground (0V) when activated, and leaves it open circuit when not active. When you connect to a microcontroller to detect this changing you need to connect a pull-up resistor (1K-10K) between the signal wire and the power supply. 【SPECIFICATIONS】 NJK5002C (8002C) Output NPN, N.O. (Normally Open) 3 Wire Type: (Black = Signal Output, Brown= +VDC Power In, Blue=Ground) Detecting Distance : 5-8mm Supply Voltage : DC +5-30VDC Max Current Output : 150Ma Operating Temperature: -25°C to +55°C Sensor: 40mm x 12mm (1.5" x 0.47") (LxD) Cable Length: 1145mm/45" 【Package Include】📦 1 x NJK-5002C Proximity Sensor
