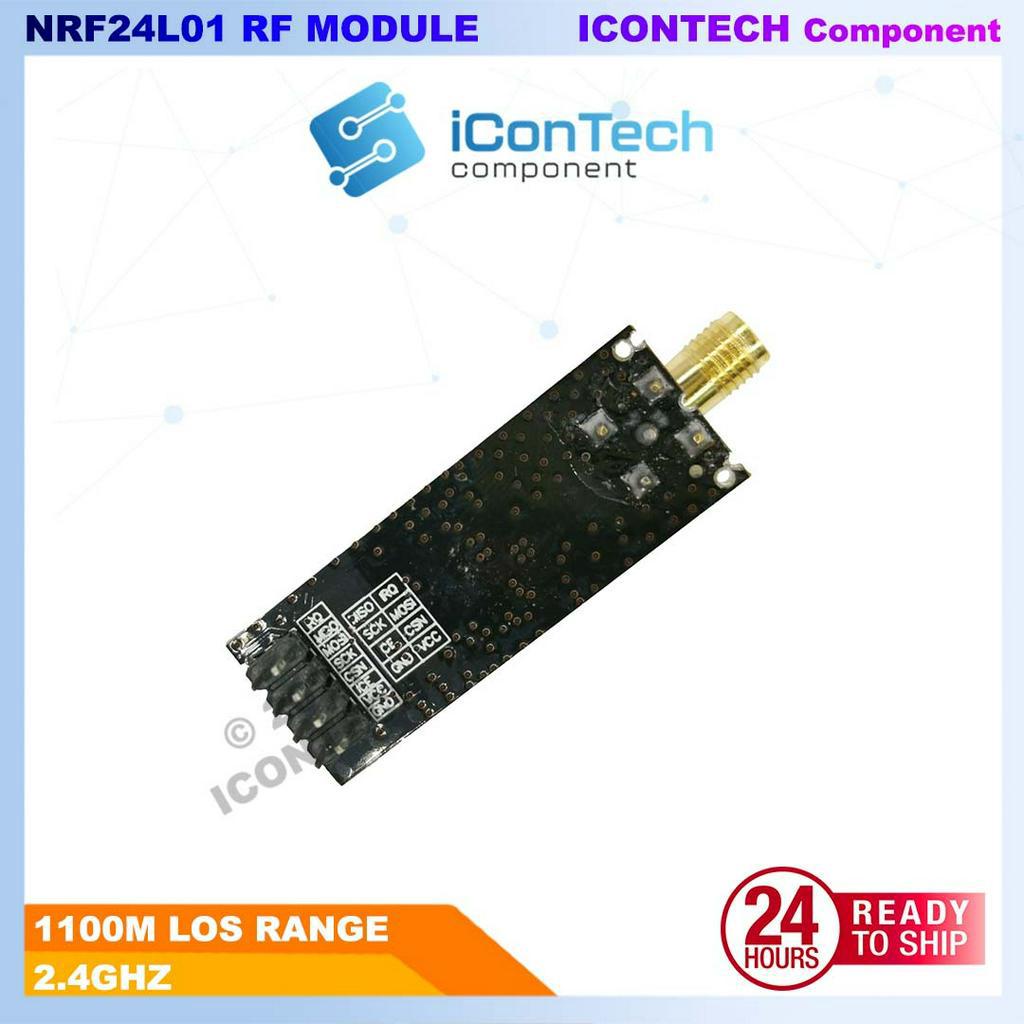

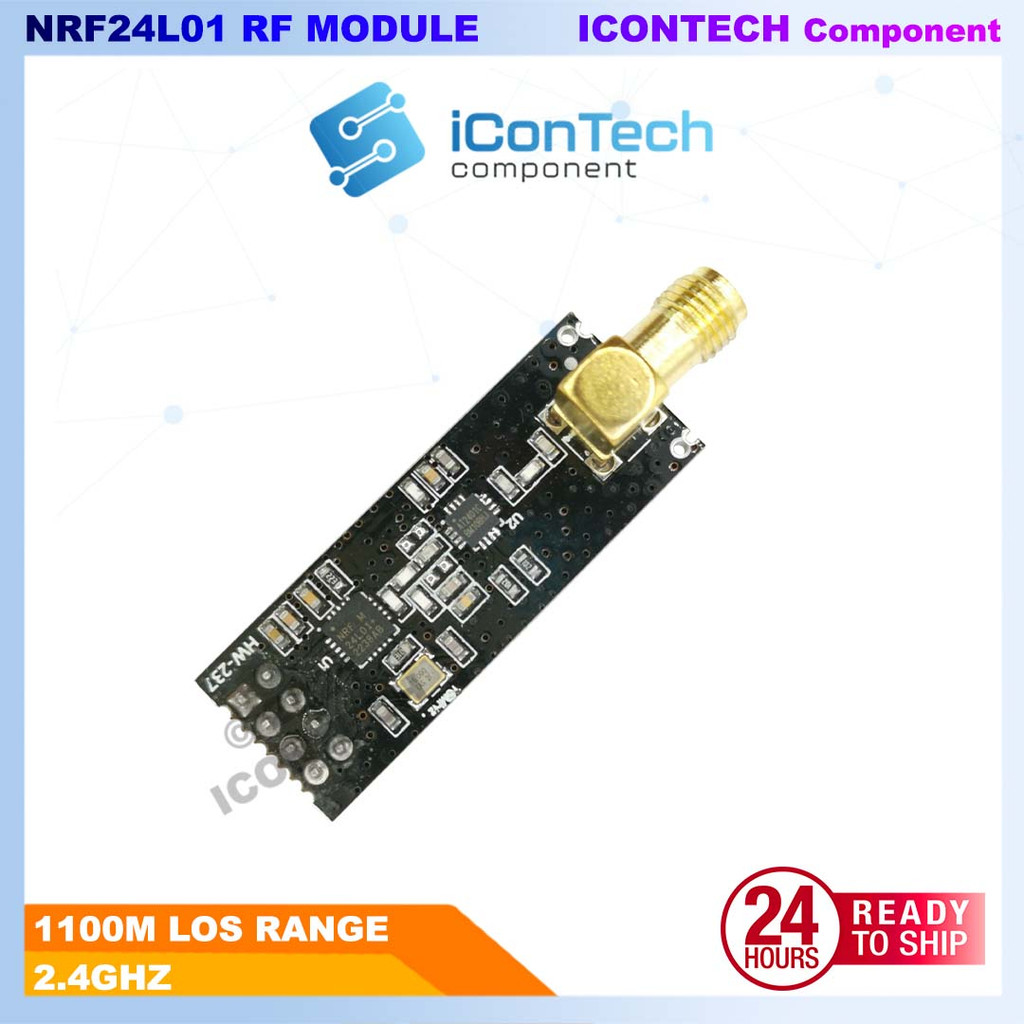

NRF24L01+ 1100Meter Range Wireless NRF24L01+PA+LNA Module with Antenna Arduino Electronic 2.4Ghz Transceiver NRF24L01

Product Description

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 The nRF24L01+ is a single chip 2.4GHz transceiver with an embedded baseband protocol engine (Enhanced ShockBurst™), suitable for ultra low power wireless applications. The nRF24L01+ is designed for operation in the world wide ISM frequency band at 2.400 - 2.4835GHz. To design a radio system with the nRF24L01+, you simply need an MCU (microcontroller) and a few external passive components. You can operate and configure the nRF24L01+ through a Serial Peripheral Interface (SPI). The register map, which is accessible through the SPI, contains all configuration registers in the nRF24L01+ and is accessible in all operation modes of the chip. 【Features】 • Worldwide 2.4GHz ISM band operation • 250kbps, 1Mbps and 2Mbps on air data rates • Ultra low power operation • 11.3mA TX at 0dBm output power • 13.5mA RX at 2Mbps air data rate • 900nA in power down • 26μA in standby-I • On chip voltage regulator • 1.9 to 3.6V supply range 【Specification】 Vin : 3.3V Tx Current Peak : 125mA Rx Current Peak : 45mA Sleep Mode Current : 4.2uA Operating Temp : -20 to 80 【NOTES】 Datasheet get from seller 【Package Include】📦 1 x NRF24L Module
