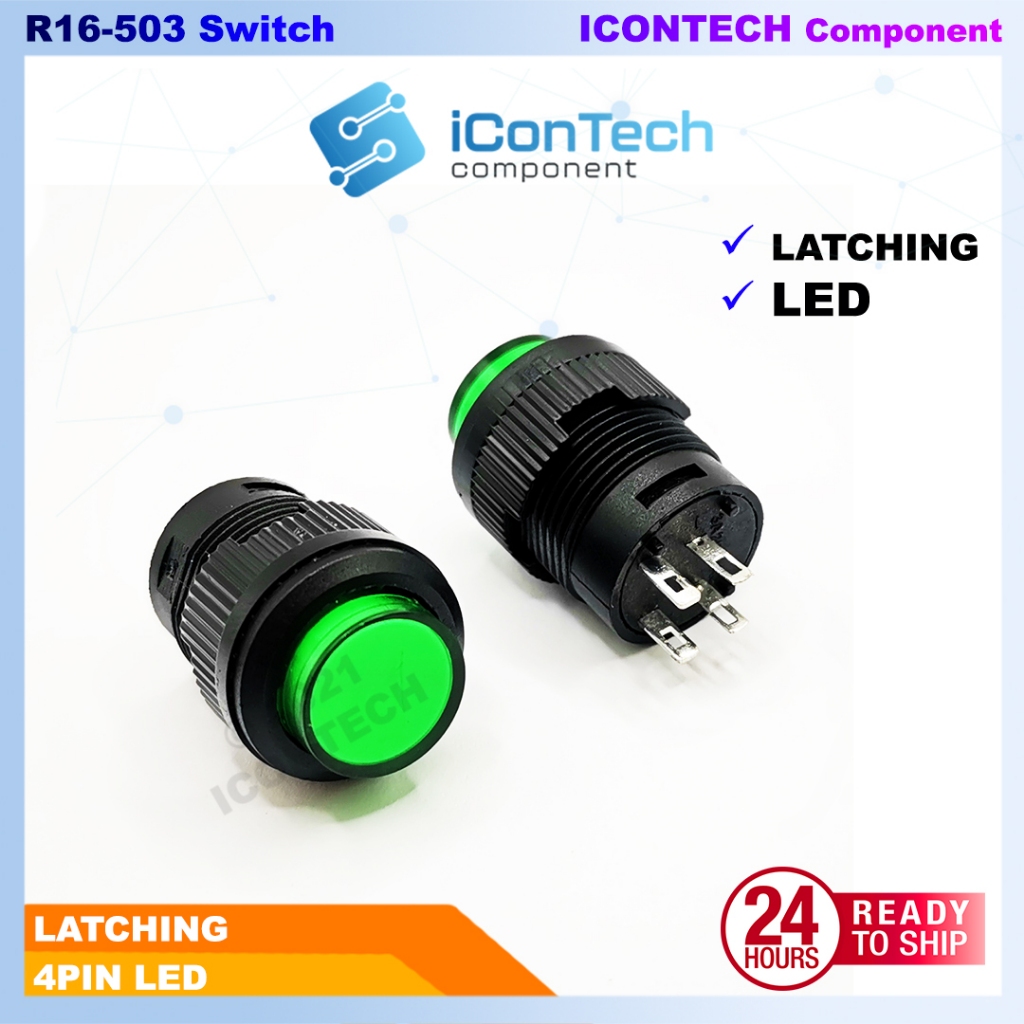

R16-503 16mm Latching/Momentary Push Button Switch LED 3A-250V R16-503BD R16-503AD

Product Description

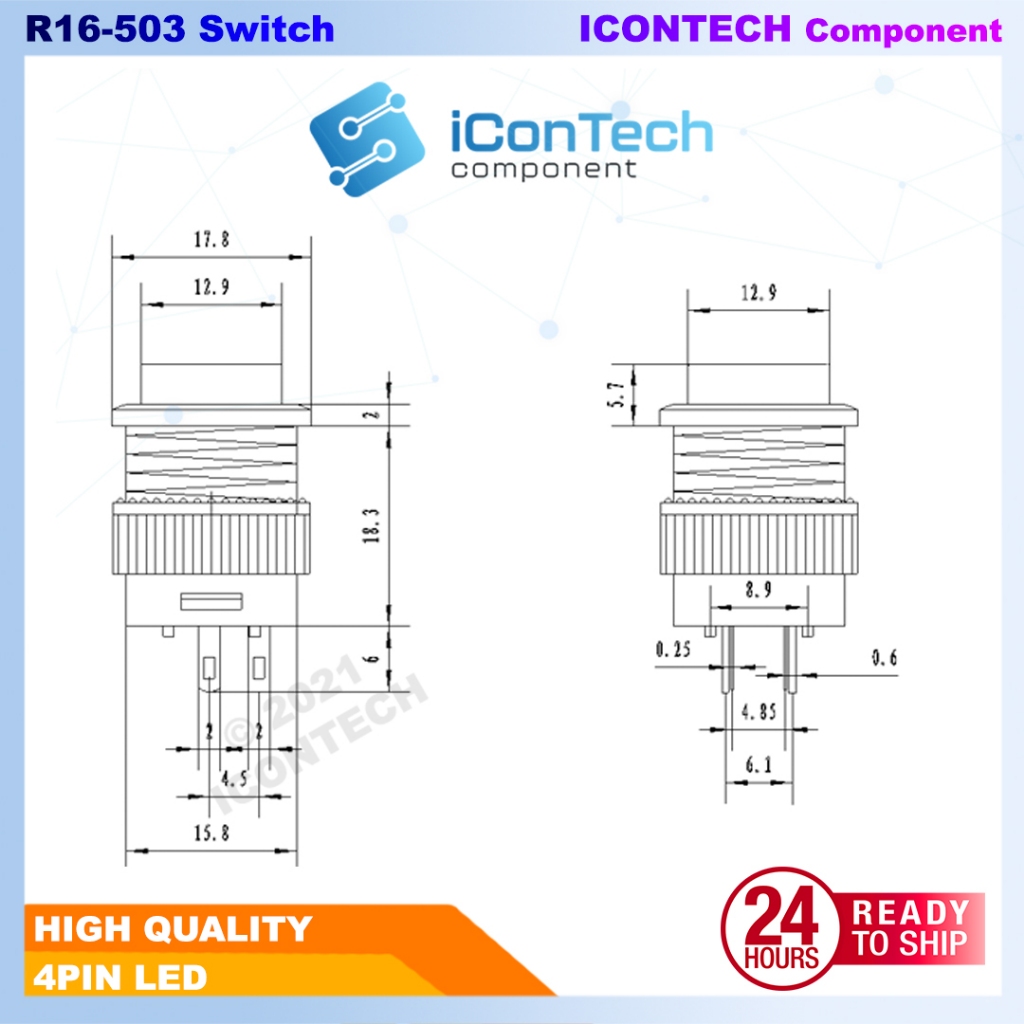

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 Momentary switch = You press down the switch, it ON, and when you release your finger, it OFF. It only stay momentary there. Latching switch = You press down the switch, it ON. You release your finger, it still ON there. It latching output there. It will only OFF again when you press again. 【Specification 】 - Model: R16-503BD = Momentary Switch - Model: R16-503AD = Latching Switch - Color: Red, Green, Yellow, Blue, White - LED Light Supply: 3.3V for White, Green, Red, Blue (Recommend connect one more resistor for long lasting used) - LED Light Supply: 5V for White, Green, Red, Blue (Recommend connect one more resistor for long lasting used) - Switch Configuration: Single Pole Single Throw (SPST). - Switch Type: On-Off Latching/Momentary - Operating Voltage: 250V. - Rated Current: 3-Amp. - Contact Resistance: 100 MΩ - Thread Diameter: Ø16mm. - Pin 4pin(with light) 【 Mechanical Specifications】 1) Standard R16-503 Size. Refer to image. 【Package Include】📦 1 x Switch
