R307S Finger Print Sensor Module 5V UART
RM 0.00 – RM 55.00
| Product SKU | R307S_SENSOR_MASTER |
| Availability | 7 total units |
Select option: *
Please select an option above.
Product Description

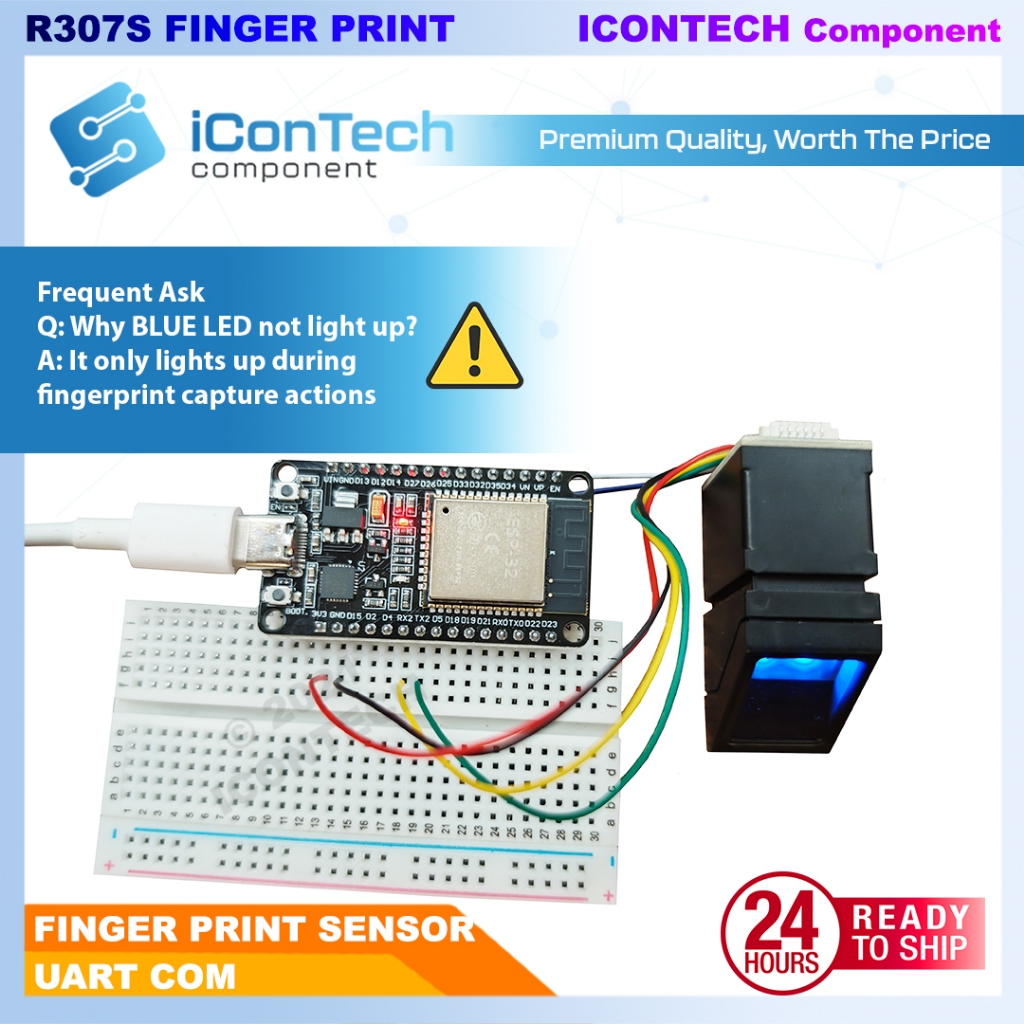

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 Finger Print Sensor, can use with arduino adafruit finger print sensor library. 【Specification】 Power DC : 4.2V-6V Interface UART (TTL logical level) / USB2.0 Working current Typical : 50mA Matching Mode 1:1 and 1:NBaud rate (9600*N)bps, N=1～12 (default N=6） Character file size 256 bytes Image acquiring time <0.5s Template size 512 bytes Storage capacity 1000 Security level 5 (1, 2, 3, 4, 5(highest)) FAR <0.001% FRR <0.1% Average searching time < 1s (1:1000) Window dimension 19mm*21mm Working environment Temp: -10℃- +40℃ , RH: 20%-85% Storage environment Temp: -40℃- +85℃ , RH: <85% Outline Dimention Split type 【Mechanical Size】 Module: 44.1*20*23.5 mm 【Package Include】📦 1x Finger Print Sensor
