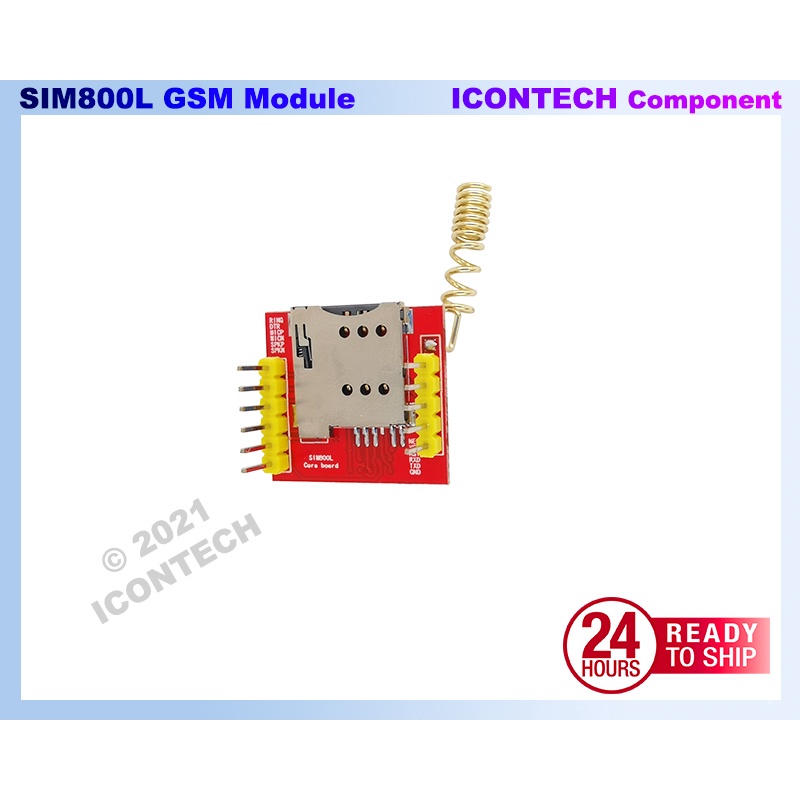

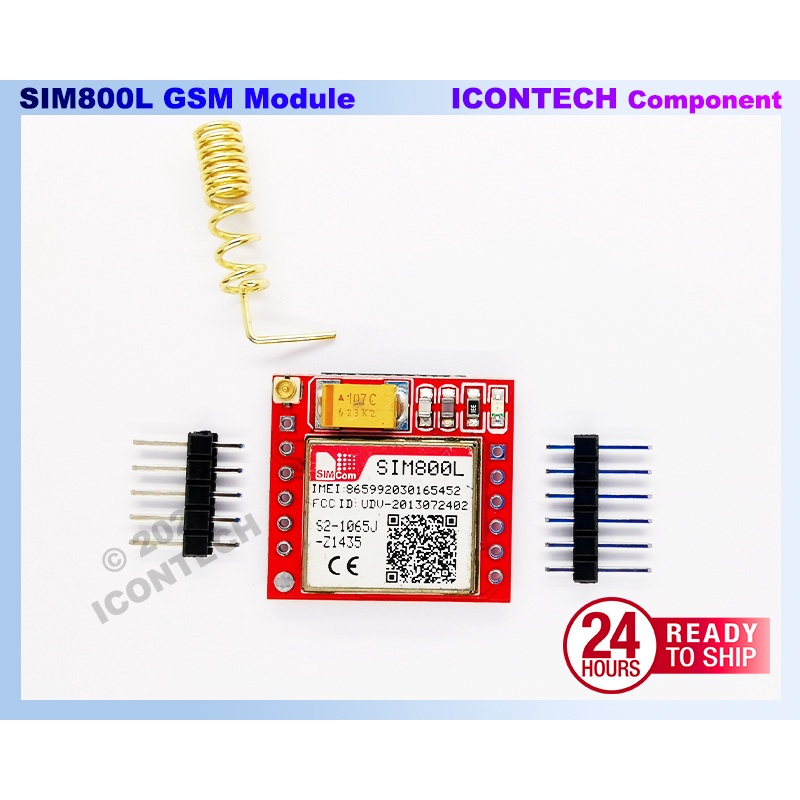

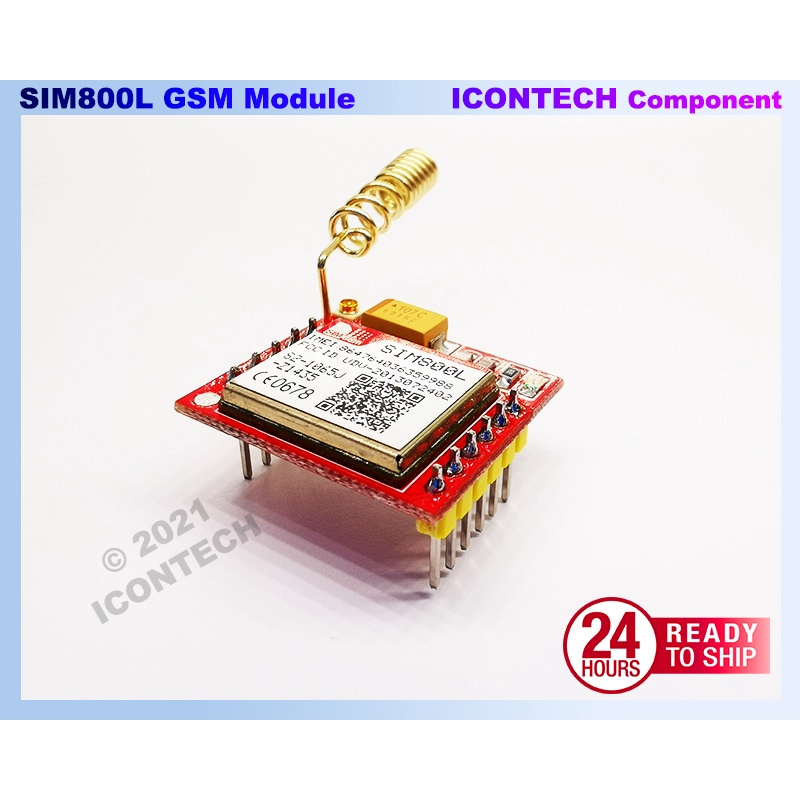

SIM800L GSM GPRS MicroSIM

Product Description

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 SIM800L Module is a small GSM/GPRS Module and ideal for small ideal projects. The module supports quad-band GSM/GPRS network, available for SMS and GPRS message data remote transmission. The SIM800L communicates with the microcontroller via UART port, supports command including 3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands. Besides, the board also supports A-GPS technique which is called mobile positioning and gets the position by mobile network. This feature makes it can also be a tracker module. 【Specification】 Supply Voltage: 3.4V ~ 4.4VDC Power Saving: Sleep mode 0.7mA (AT+CFUN=0) Frequency Bands: Quad-Band: GSM850, EGSM900, DCS1800, PCS1900 Transmitting Power Class 4 (2W) at GSM850, EGSM900 Class 1 (1W) at DCS1800, PCS1900 GPRS Connectivity GPRS Multi-Slot Class 12 (Default) GPRS Multi-Slot Class 1-12 (Option) Temperature Range: -40 to +85 °C Storage Temperature: -45 to +90 °C Data GPRS GPRS Data down-link transfer max: 85.6 kbps GPRS Data up-link transfer max: 85.6 kbps Coding Scheme: CS-1, CS-2, CS-3 and CS-4 PAP Protocol for PPP connect Integrate TCP/IP Protocol Support Packet Broadcast Control Channel (PBCCH) CSD Transmission Rates: 2.4, 4.8, 9.6, 14.4 kbps 【Notes】 For newbie recommended buy solder and tested version. We had test using Malaysia SIM card from Hotlink and sending SMS on it. It's guarantee work before we shipped. There is NO WARRANTY for purchasing board only module, buyer requested to solder at your own risk. 【References】 https://pijaeducation.com/arduino/gsm/send-receive-messages-using-sim800l-with-arduino/ https://stackoverflow.com/questions/21522794/atcmgs-returns-error 【Package Include】📦 1* SIM800L GPRS GSM Module + Spring Antenna
