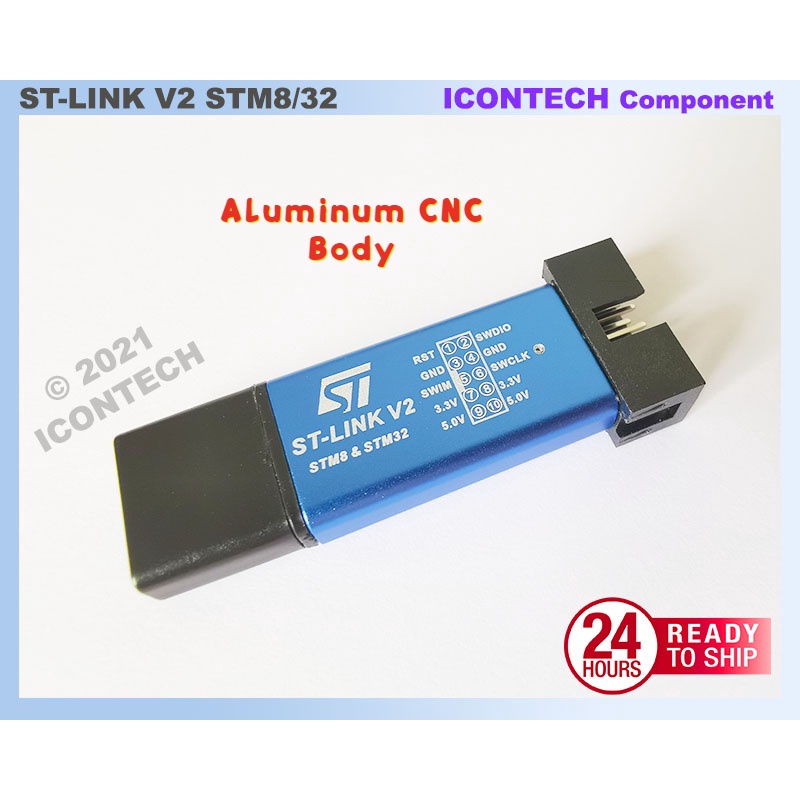

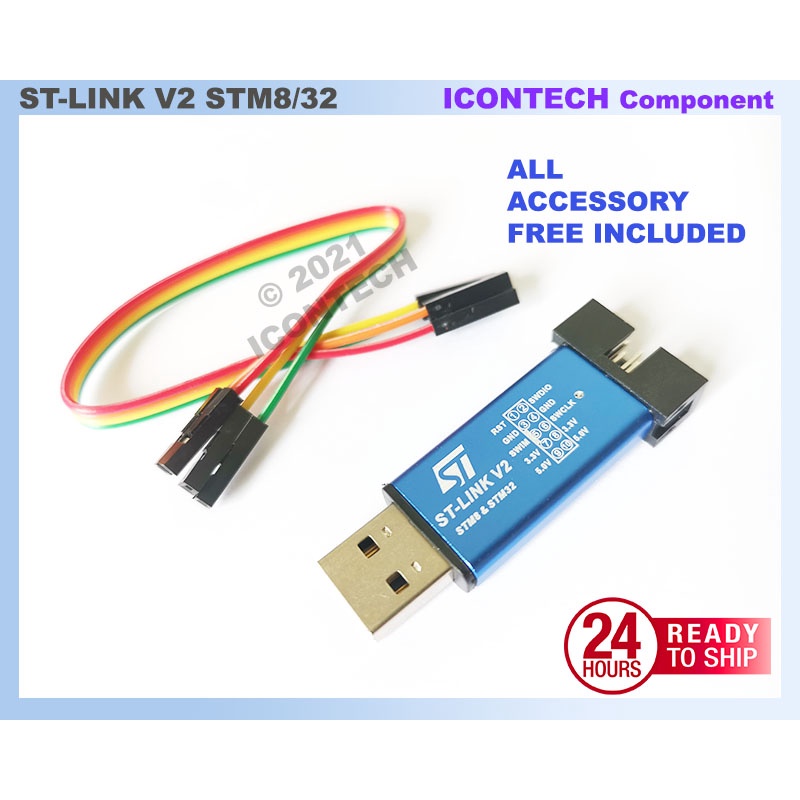

ST-Link V2 STLINK MINI STLINK simulator download programming With Cover STLINK Compatible STM8 STM32

Product Description

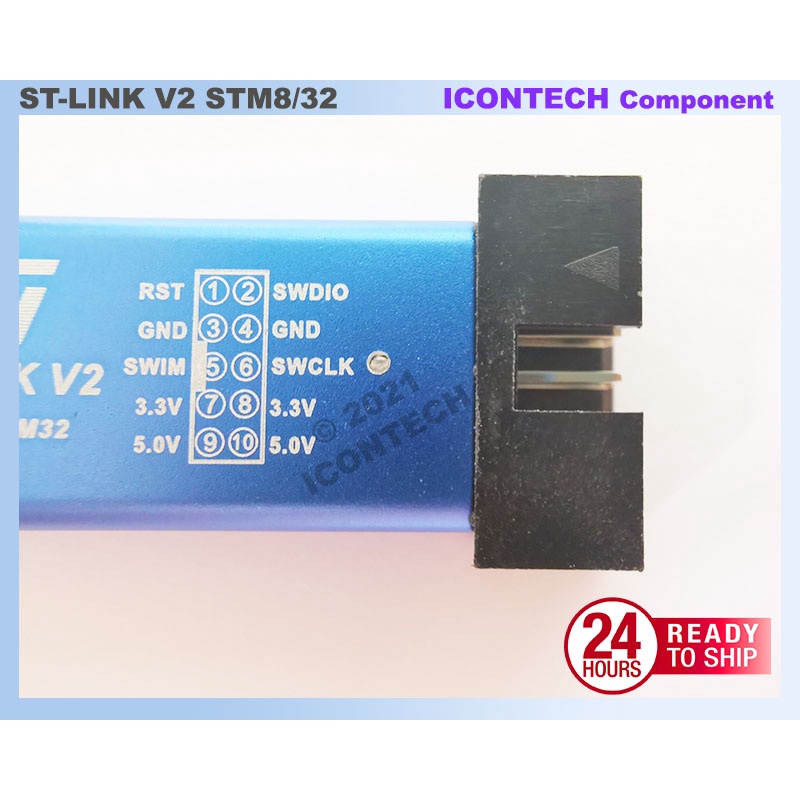

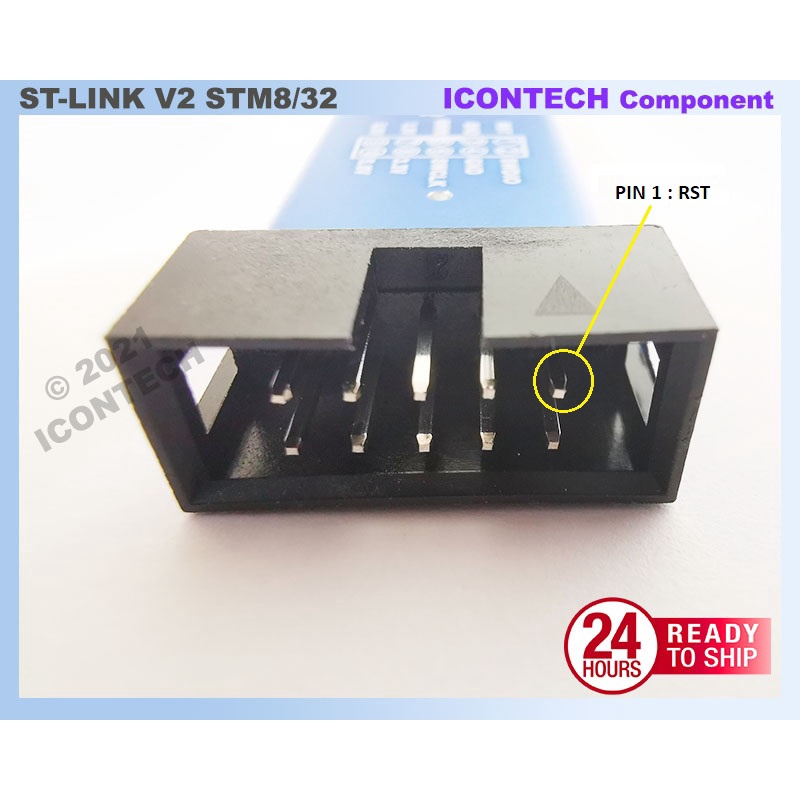

Description The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontrollers. The single-wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. STM8 applications use the USB full-speed interface to communicate with the ST Visual Develop (STVD-STM8) or ST Visual Programmer (STVP-STM8) software, or with integrated development environments from third-parties. STM32 applications use the USB full-speed interface to communicate with the STM32CubeIDE software tool or with integrated development environments from third-parties. Application STM chip program used. Product Information 5 V power supplied by a USB connector USB 2.0 full-speed compatible interface USB Type-A to Mini-B cable provided JTAG/serial wire debug (SWD) specific features: 1.65 V to 3.6 V application voltage support on the JTAG/SWD interface and 5 V tolerant inputs JTAG cable for connection to a standard JTAG 20-pin 2.54 mm pitch connector JTAG support SWD and serial wire viewer (SWV) communication support Direct firmware update support (DFU) Status LED blinking during the communication with the PC Operating temperature from 0 °C to 50 °C Technical Document Support the software version is as follows: ST - LINK Utility 2.0 and above STVD 2 and above STVP 3.2.3 and above IAR EWARM V6.20 and above IAR EWSTM8 V1.30 and above KEIL RVMDK V4.21 and above
