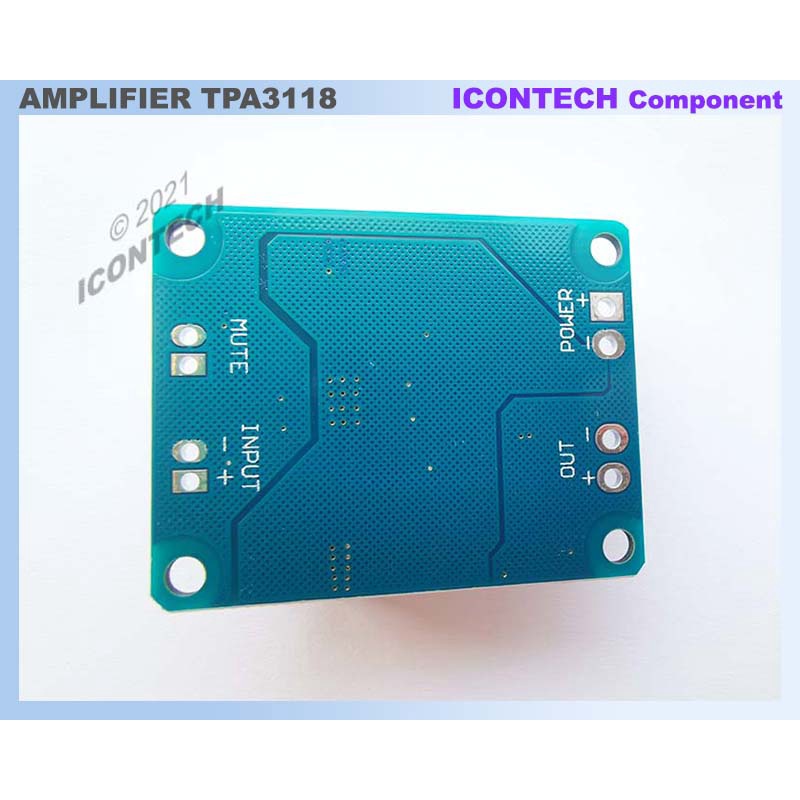

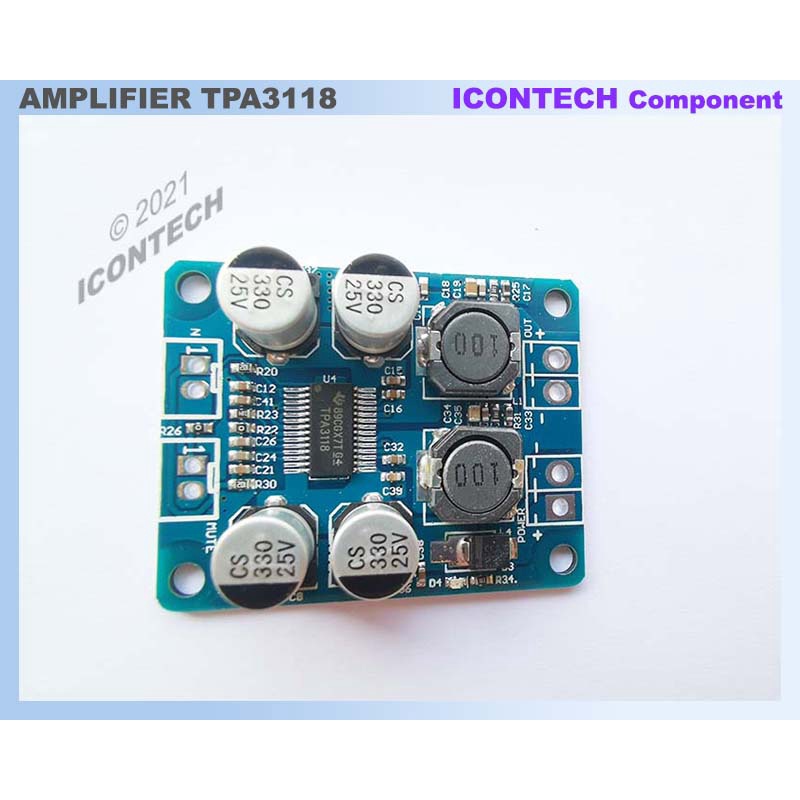

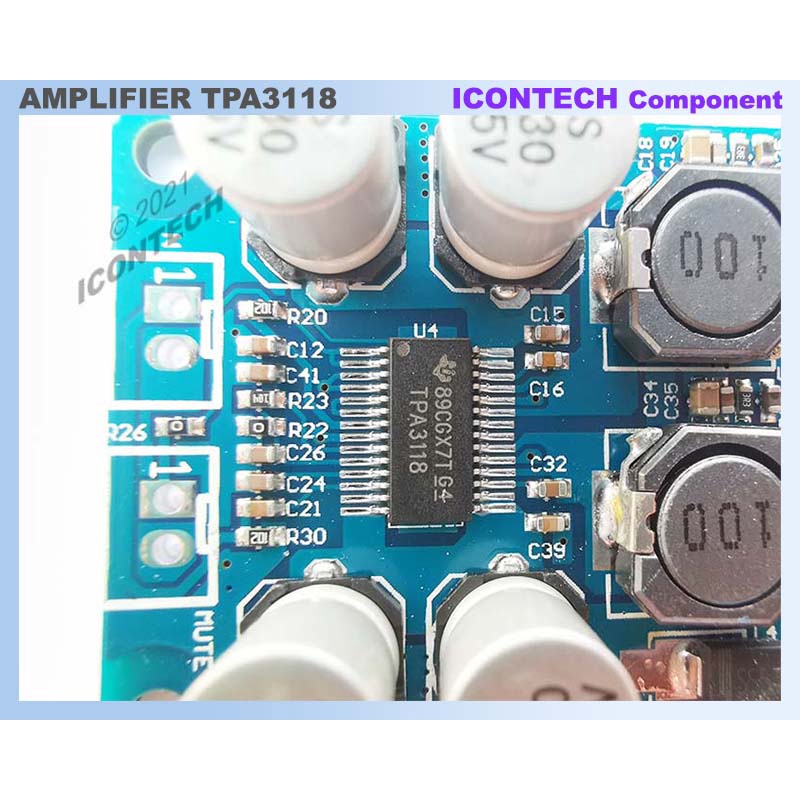

TPA3118 Audio Amplifier Board PBTL Mono Channel Amplifier board 1x60W Mono Amplifier Module

Product Description

【Description】 TPA3118 Mono Amplifier is a Class-D stereo efficient, digital amplifier that can drive speakers up to 60W/8Ω. TPA3118 mono amplifier’s advanced oscillator/PLL circuit gives multiple switching frequency options to avoid AM interferences. TPA3118 mono amplifier is fully protected against faults with short-circuit protection and thermal protection as well as over-voltage, under-voltage, and DC protection. 【Application】 Audio amplifier. 【Product Information】 Architecture Class D Topology PBTL Excellent audio quality Single channel digital audio power amplifier chip High output and low power consumption On-board power indicator light Directly input audio signal 【Technical Document】 Operating voltage: 5 ~ 24V DC (Recommend at least 12V, @20-24V for best performance BUT REQUIRE HEAT SINK when operate at 20V-24V ! Kindly take notes on this) Output Impedance: 4 – 8 ohms Power: 45 @ 4 ohm (<0.1% THD + N), 60W @ 4 ohm (<10% THD + N) Input Impedance: 30K ohm Input Sensitivity: 1.18Vrms Power amplifier chip: TPA3118 Size: 46 x 35 mm Net weight: 13g 【Reference】 https://components101.com/sites/default/files/component_datasheet/TPA3118-Datasheet.pdf 【Package Include】📦 1 x TPA3118 Audio Amplifier
