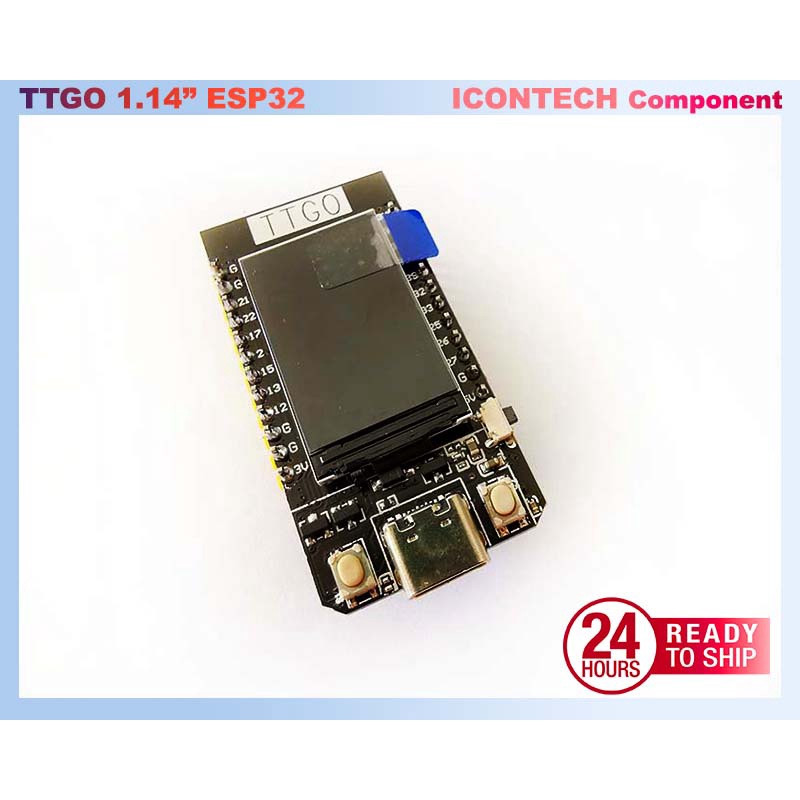

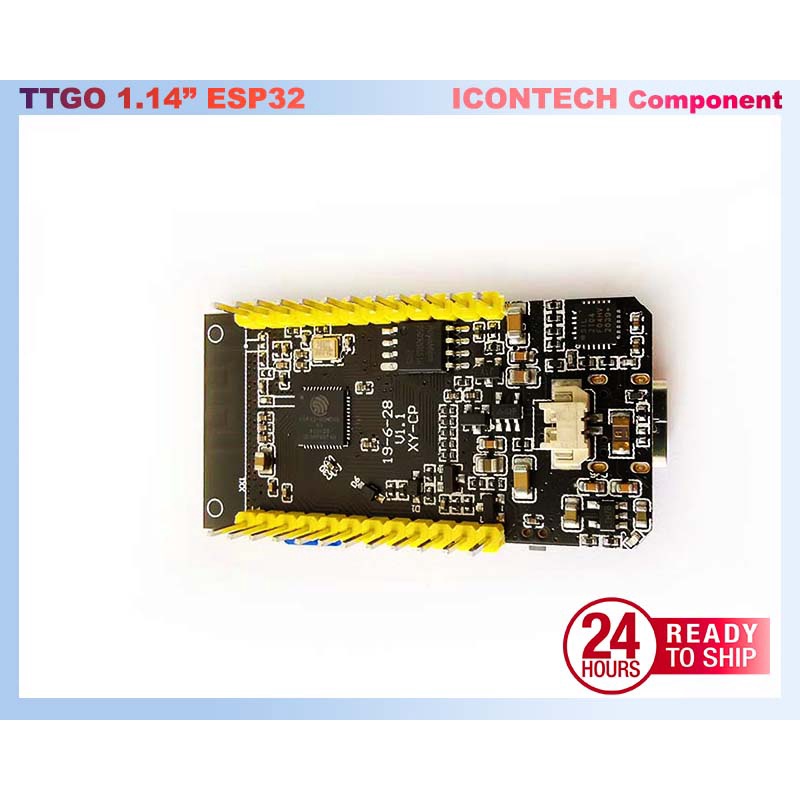

TTGO T-Display 1.14 ESP32 Module TTGO WiFi Bluetooth OLED LCD TTGO ESP32

Product Description

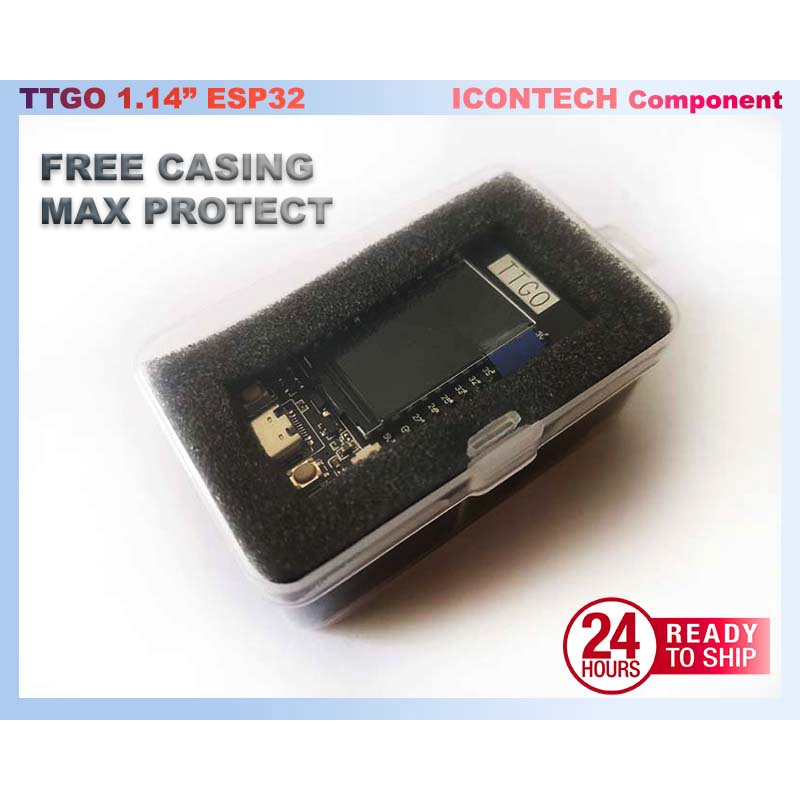

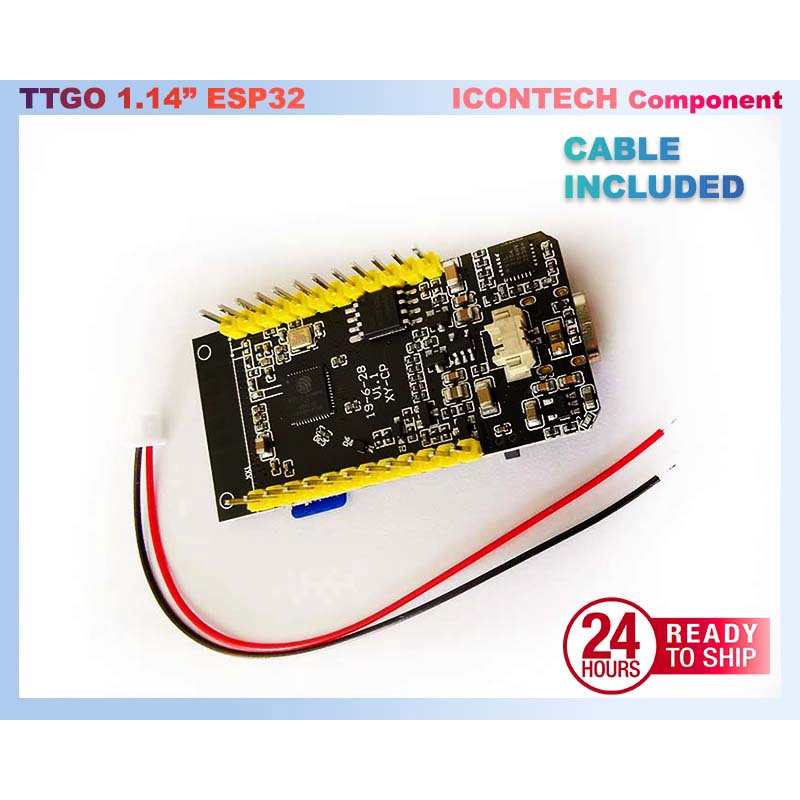

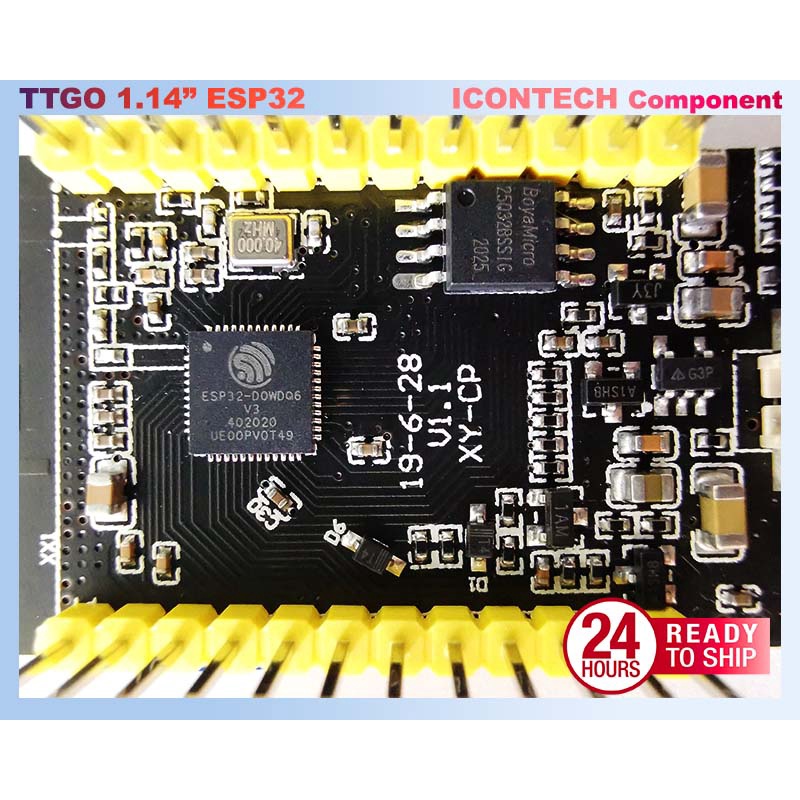

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 TTGO T-Display is a module that integrate ESP32 chipset ESP32-D0WDQ6 and OLED LCD 1.14 inch. All TTGO are soldered and tested. 【Application】 Embedded design, Wifi project, student project. 【Specification】 Chipset - MCU32 240MHz Xtensa dual core 32 bit LX6 microprocessor Flash : QSPI 4MB SRAM : 520 KB SRAM Button : Reset USB to TTL : CP2104 Modular interface : UART, SPI, SDIO, I2C, PWM, I2S, ADC Dispay : IPS ST7789V 1.14 Inch Working voltage : 2.7V - 4.2V Working current : +/- 67mA Sleep currecnt : +/- 350uA Working temperature : -40 - +85degree celcius Size : 51.52*25.04*8.54 mm Weight : 7.81g USB :Type C JST connector : 2 pin 1.25mm 【References】 https://github.com/Xinyuan-LilyGO/TTGO-T-Display 【Package Include】📦 1 x TTGO ESP32 + 1 x Cable + 1 x Storage Casing #TTGO #TTGO ESP32 #ESP32 TTGO
