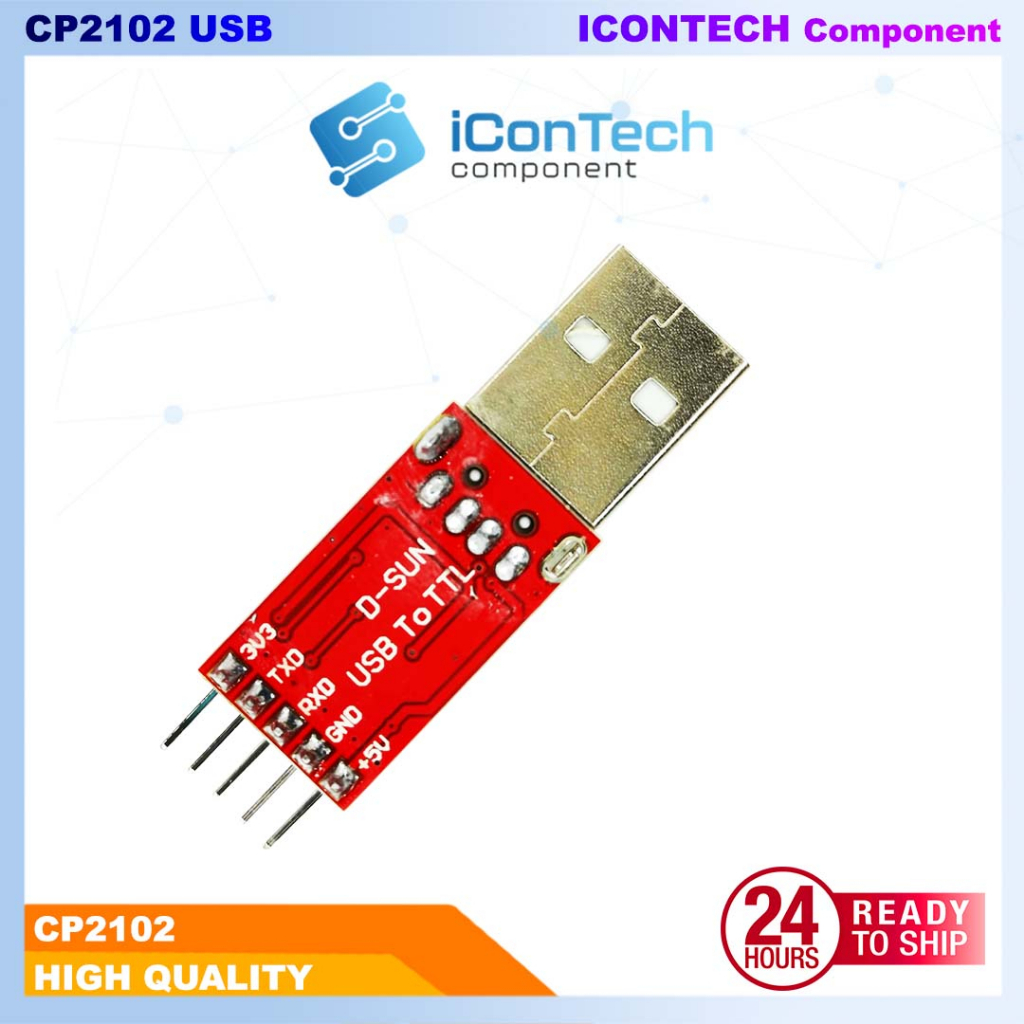

USB to UART TTL SERIAL Adapter CP2102 WINDOW10 SUPPORTED

Product Description

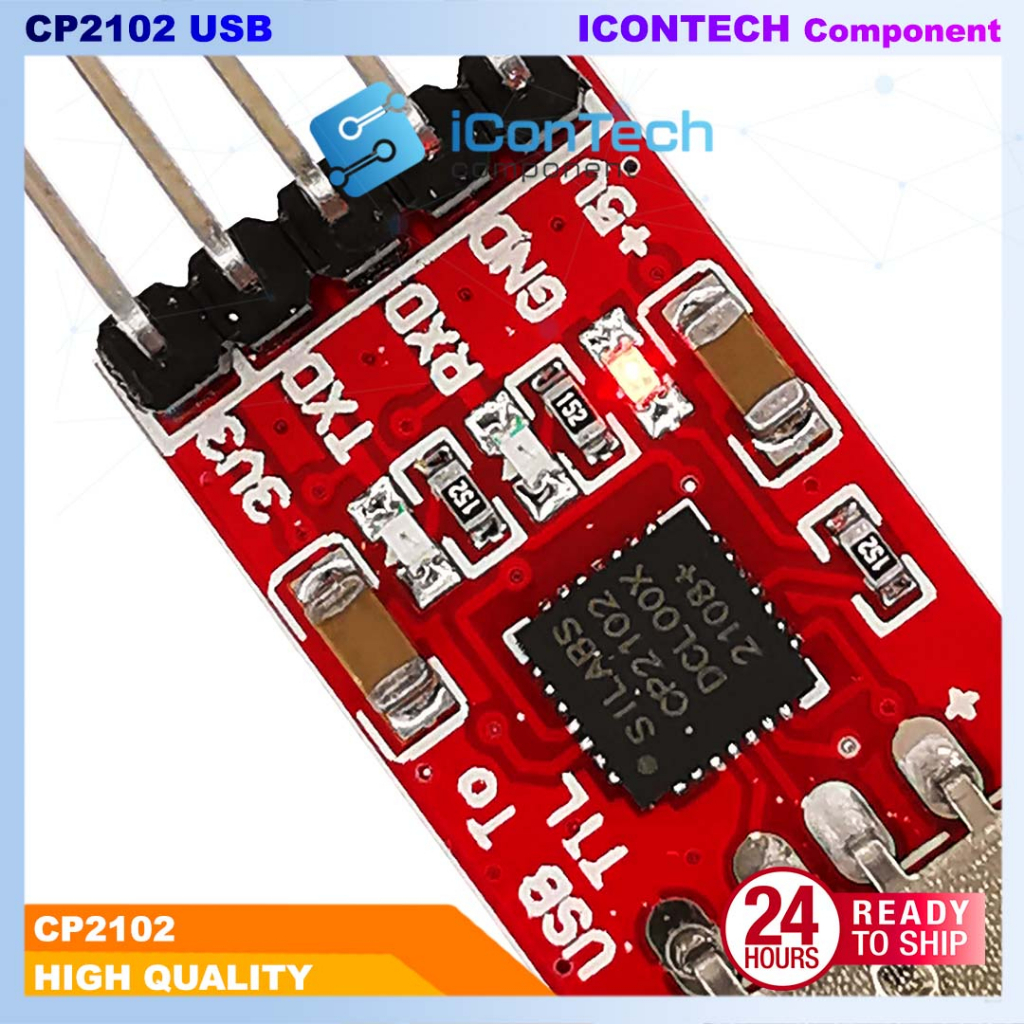

CP2102 chip is a single chip USB to UART bridge IC. It requires minimal external components. CP2102 can be used to migrate legacy serial port based devices to USB. Features:- Stable and reliable chipset CP2102. USB specification 2.0 compliant with full-speed 12Mbps. Baud rates: 300 bps to 1.5 Mbps Byte receive buffer; 640 byte transmit buffer. Hardware or X-On/X-Off handshaking supported. USB suspend states supported via SUSPEND pins. Temperature Range: -40 to +85. Size: 42mm X 15mm. Weight: 4g Pinouts:- TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board. RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board. GND = Should be common to microcontroller ground. 3V3 = Optional output to power external circuit upto 50mA. 5V = Optional output to power external circuit upto 100mA Driver download : https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers Notes: Some PC can direct plug and play, some need to download the driver, it's all depends on the operating system and environment.
