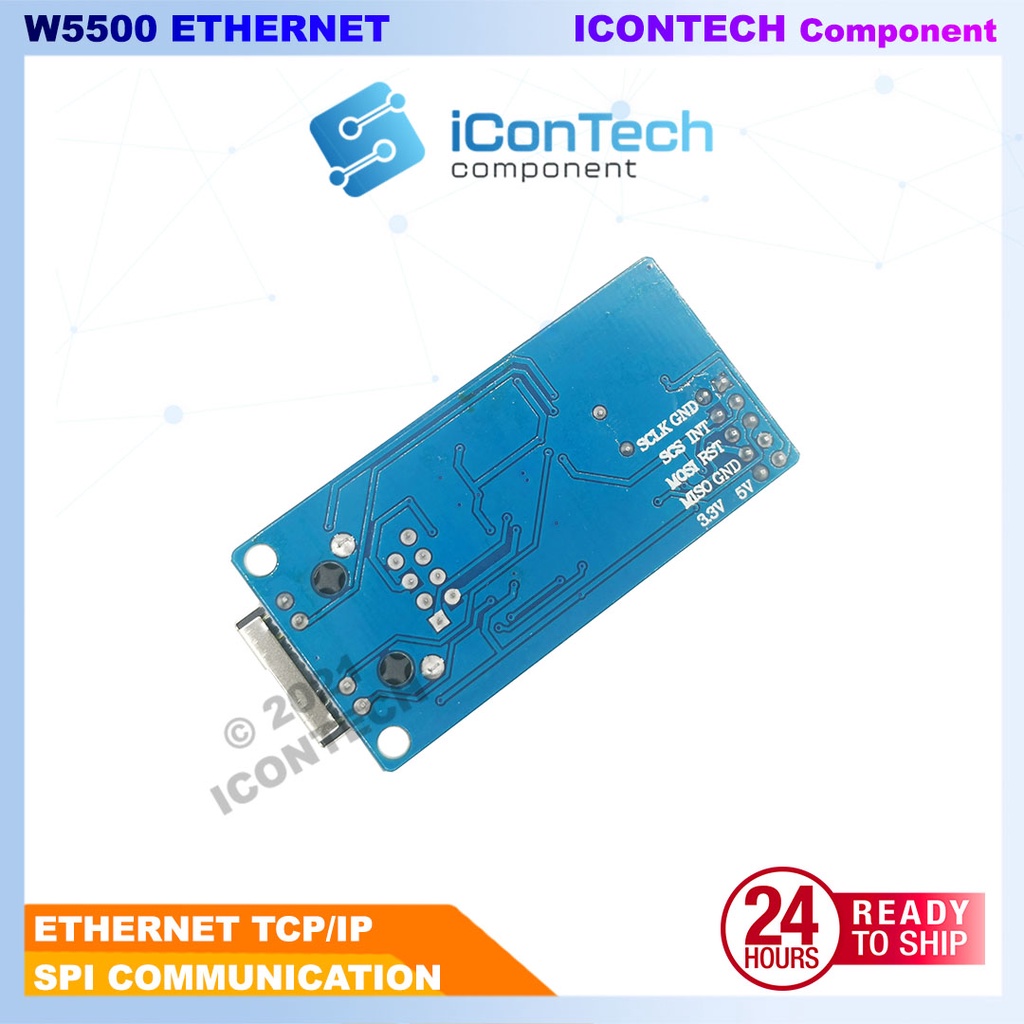

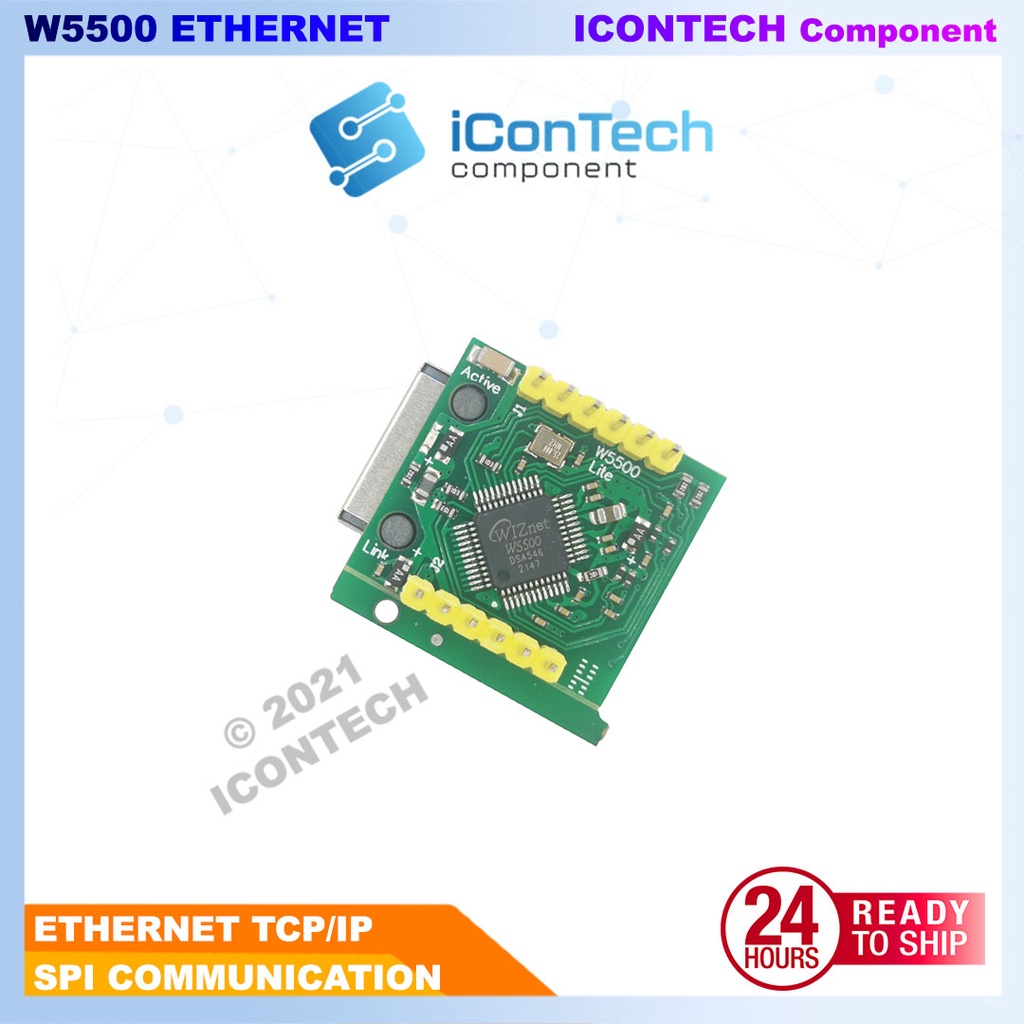

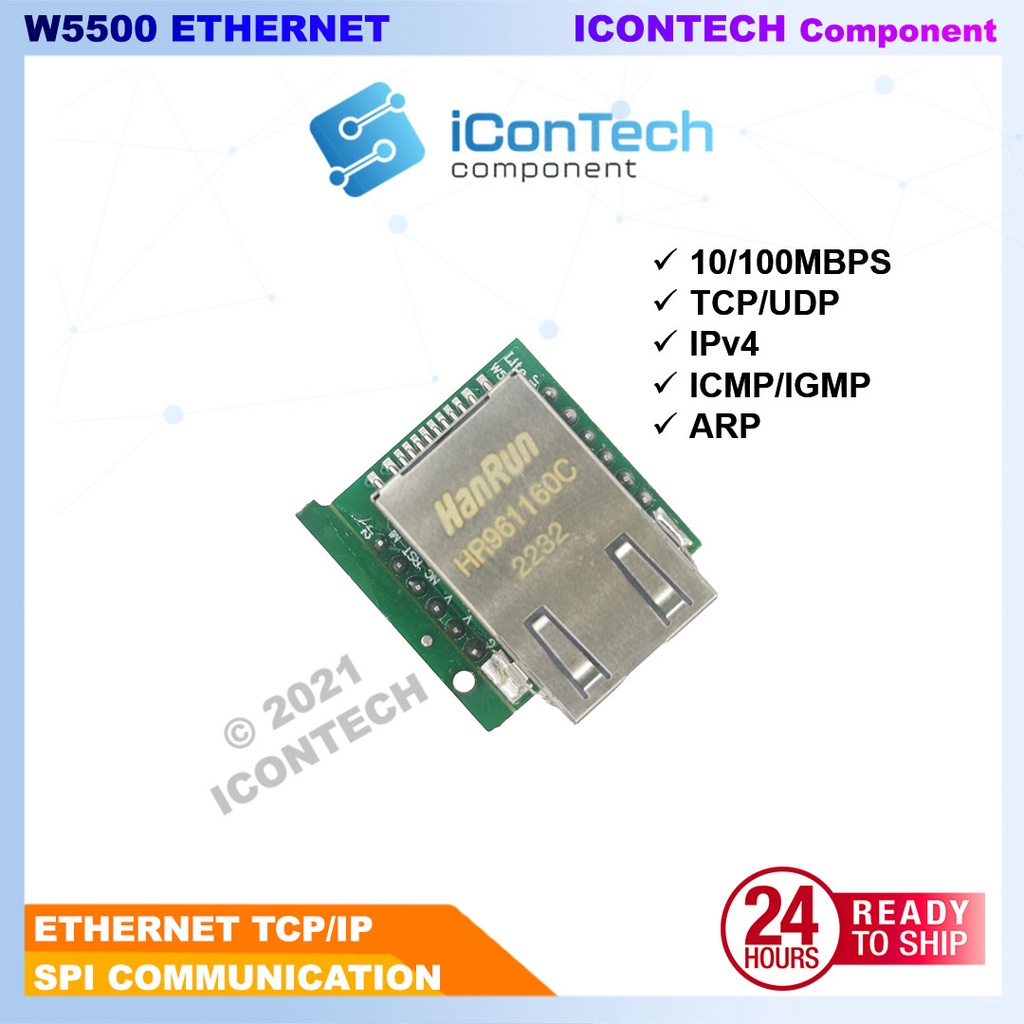

W5500 Module TCP/IP Protocol Ethernet Development Use SPI communication

Product Description

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. Enables users to have the Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC and PHY embedded. WIZnet‘s Hardwired TCP/IP is the market-proven technology that supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols. W5500 embeds the 32Kbyte internal memory buffer for the Ethernet packet processing. Users can use 8 independent hardware sockets simultaneously. SPI (Serial Peripheral Interface) is provided for easy integration with the external MCU. In order to reduce power consumption of the system, W5500 provides WOL (Wake on LAN) and power down mode. 【Spec】 Function features: High speed SPI interface 80MHz Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledge Supports up to 8 Socket Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol Integration of the data link layer, physical layer Support the wakeup Support high speed serial peripheral interface (SPI model 0, 3) Internal 32K bytes receive buffer The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY) Support auto negotiation (10/100-Based full duplex or half duplex) Does not support the IP patch The working voltage of 3.3V, I/O and 5V voltage signal LED display (full duplex or half duplex, network connection, network speed,active) Pin type package ultra small, convenient for embedded applications Application of C sample project 【References】 www.usr.cn/Product/98.html 【Package Include】📦 1 x Button
