XL6009 DC-DC Booster Amplifier Power Booster Adjustable Step Up Module 3A Boost DC Operating mode

Product Description

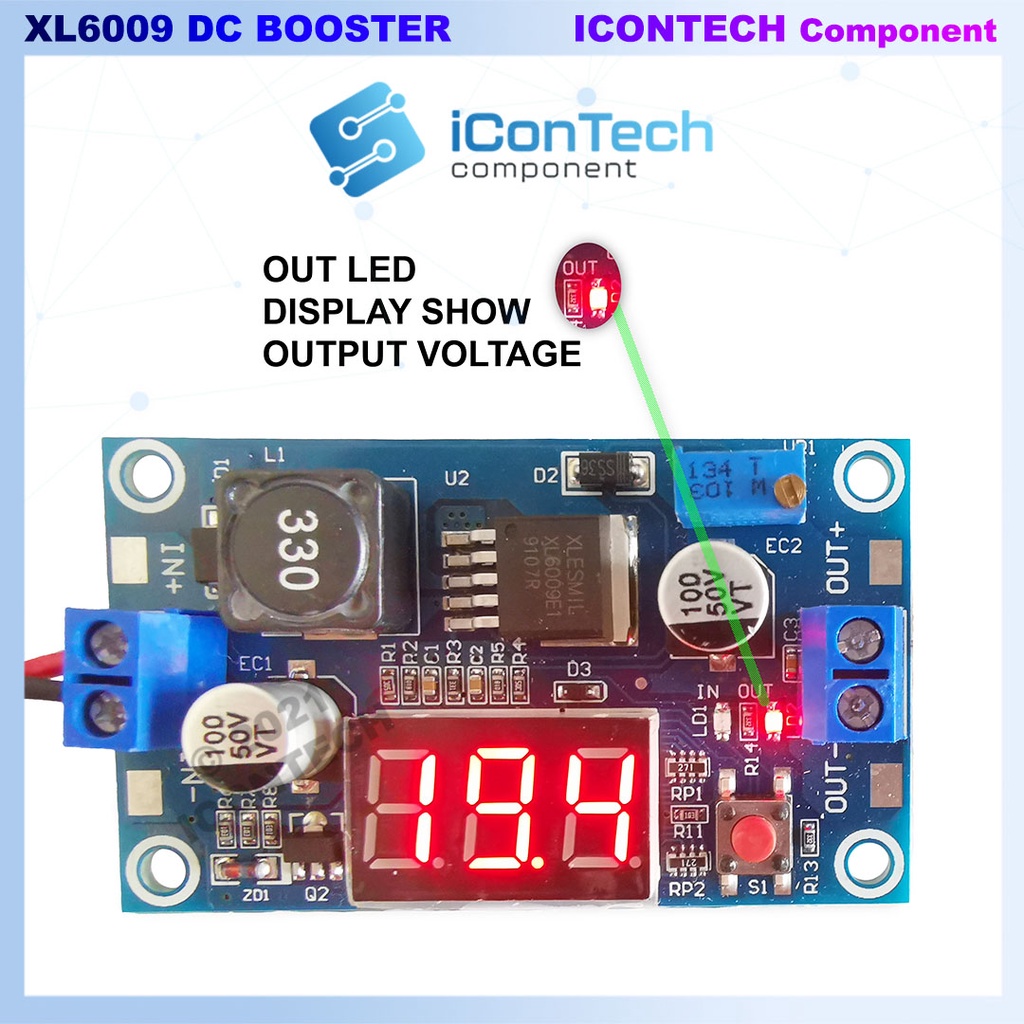

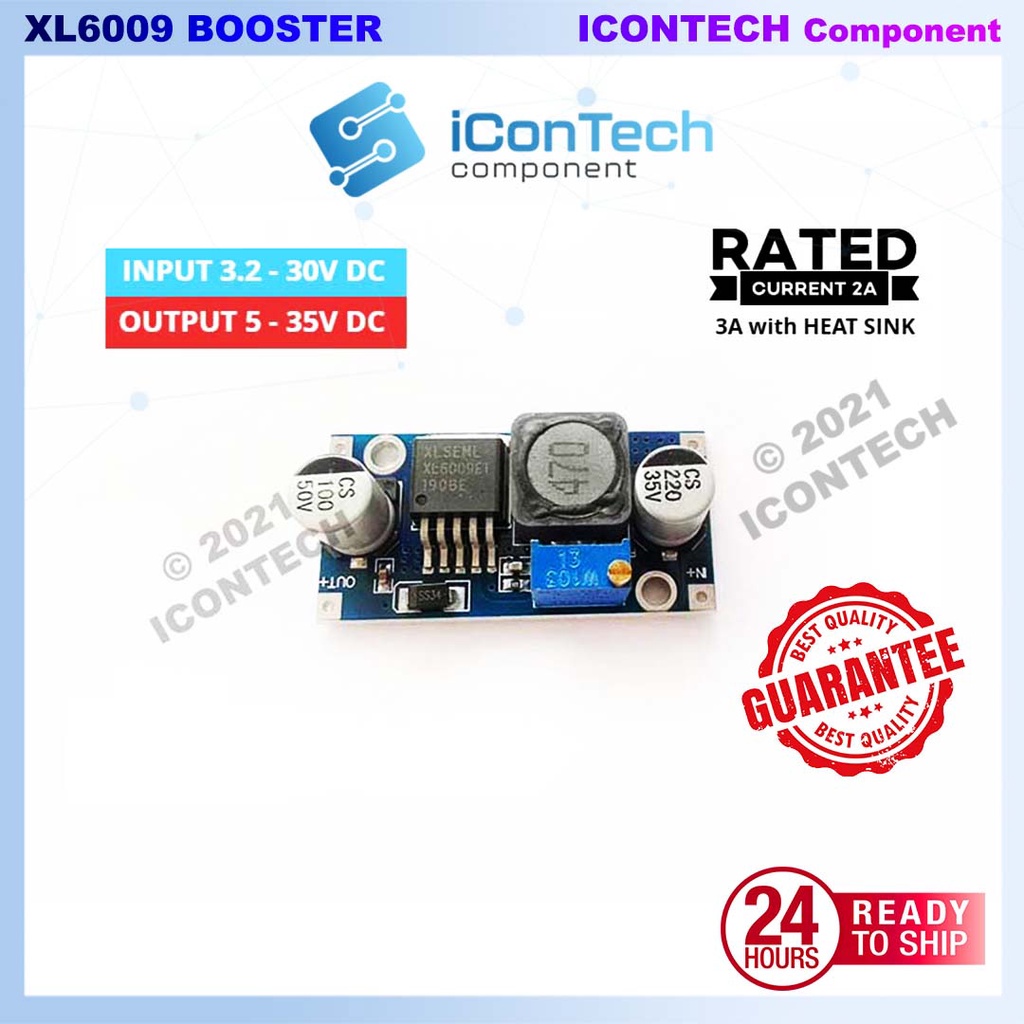

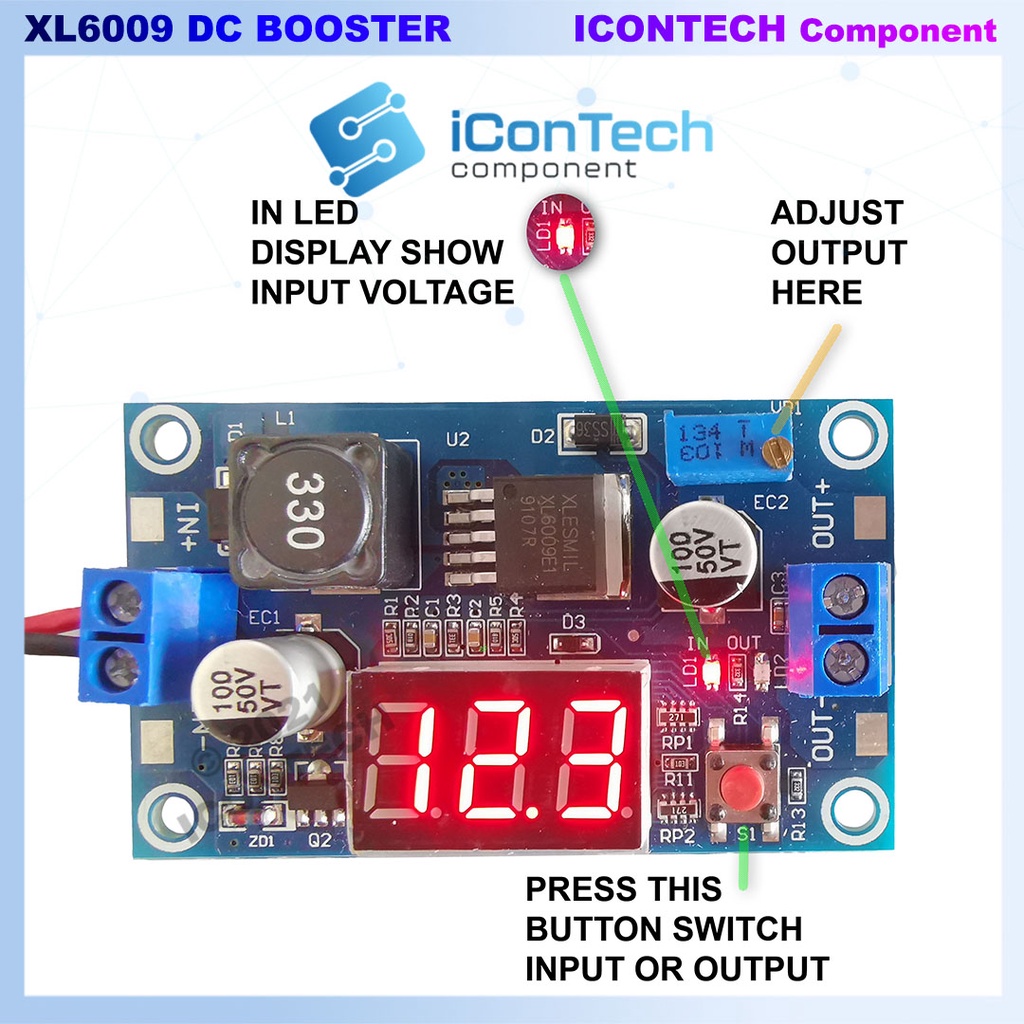

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 XL6009 is used to amplify or step up the supply voltage. It can adjust the output using built-in potentiometer. This is a small size, high efficiency, stable and reliable booster module. 【Application】 Booster DC or amplifier circuit needed. 【Specification】 Input voltage range: 3.2 to 30Vdc. Output voltage range: Adjustable 1.5 - 35V DC Output rated current: 2A. Output maximum current: 3A (need to add heat sink). Conversion efficiency: 94%. Voltage regulation: 0.5% Load regulation: 0.5% Switching frequency: 400kHz. Operating temperature: Industrial grade (-40 to +85°C) (output power 18W or less) Pinout label : IN+ = Input voltage IN- = Ground OUT+ = Output voltage OUT- = Ground Dimension: 41 x 20 x 14 mm. Weight: 12g 【Package Include】📦 1 x XL6009 Booster
