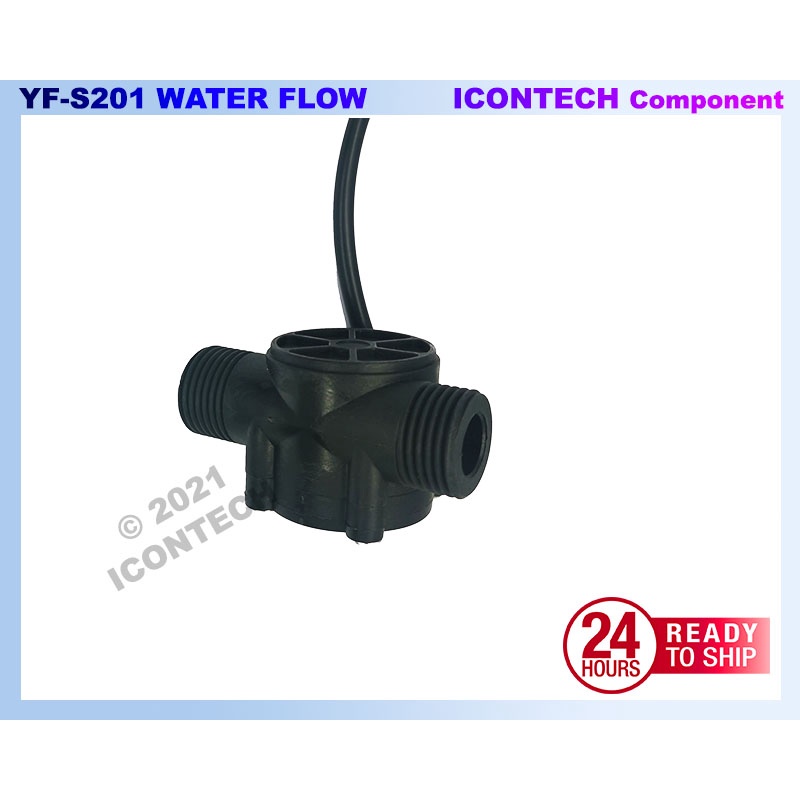

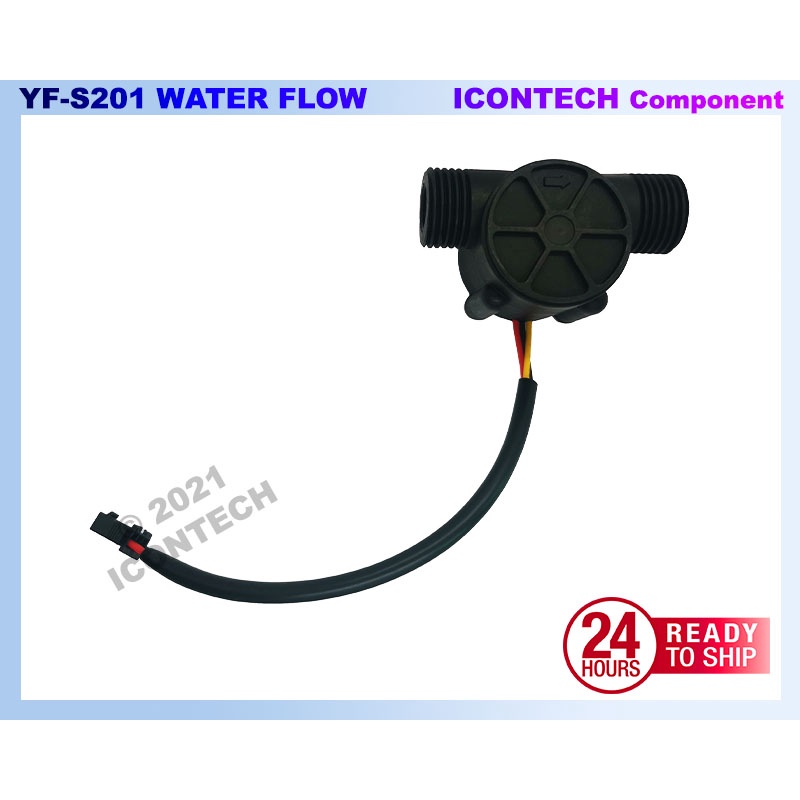

YF-S201 Hall Effect Water Flow Sensor water flow meter Water Flow Measurement

Product Description

📌 All items in our store are ready stock, and will ship within 1 day after order. Our shop open 365 day non-stop 👍 【Description】 This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There's an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. 【Specification】 Model: YF-S201 Sensor Type: Hall effect Working Voltage: 5 to 18V DC (min tested working voltage 4.5V) Max current draw: 15mA @ 5V Output Type: 5V TTL Working Flow Rate: 1 to 30 Liters/Minute Working Temperature range: -25 to +80℃ Working Humidity Range: 35%-80% RH Accuracy: ±10% Maximum water pressure: 2.0 MPa Output duty cycle: 50% +-10% Output rise time: 0.04us Output fall time: 0.18us Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min) Pulses per Liter: 450 Durability: minimum 300,000 cycles Cable length: 15cm 【Size and Dimen】 Outer diameter (mm) 20 Intake diameter (mm) 11 Outlet diameter (mm) 11 1/2" nominal pipe connections, 0.78" outer diameter, 1/2" of thread Size: 2.5" x 1.4" x 1.4" inch 【Features】 - Lowest price with high quality 【References】 https://www.hobbytronics.co.uk/yf-s201-water-flow-meter 【Package Include】📦 1 x Water Flow Sensor #water flow sensor #arduino water flow sensor
